LeCroy Corporation Target and Device Emulation
176 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
SOF, EOF and CRC errors
Check these and specify Double or Omit by checking the corresponding option button.
Insert Primitive
Check Insert Primitive to enable the Primitive Type dialog, select the primitive type and
number of primitives, and click OK.
Destroy Field of Frame
Click the More button to display the Field of Frame area, check Destroy, and check the
fields to destroy. Alternatively, check Specify Value to choose from a predefined list of
values.
Set Value of Field
Check Fill Out in the Field of Frame area and enter values for fields.
Insert Frame
Check Insert Frame and then click the down arrow on the Type combo box and choose
the frame type. Make sure that you have clicked More.
Note: In addition to the pre‐defined frame types, you can scroll down the list to User Defined and then
enter your own frame data between SOF and EOF.

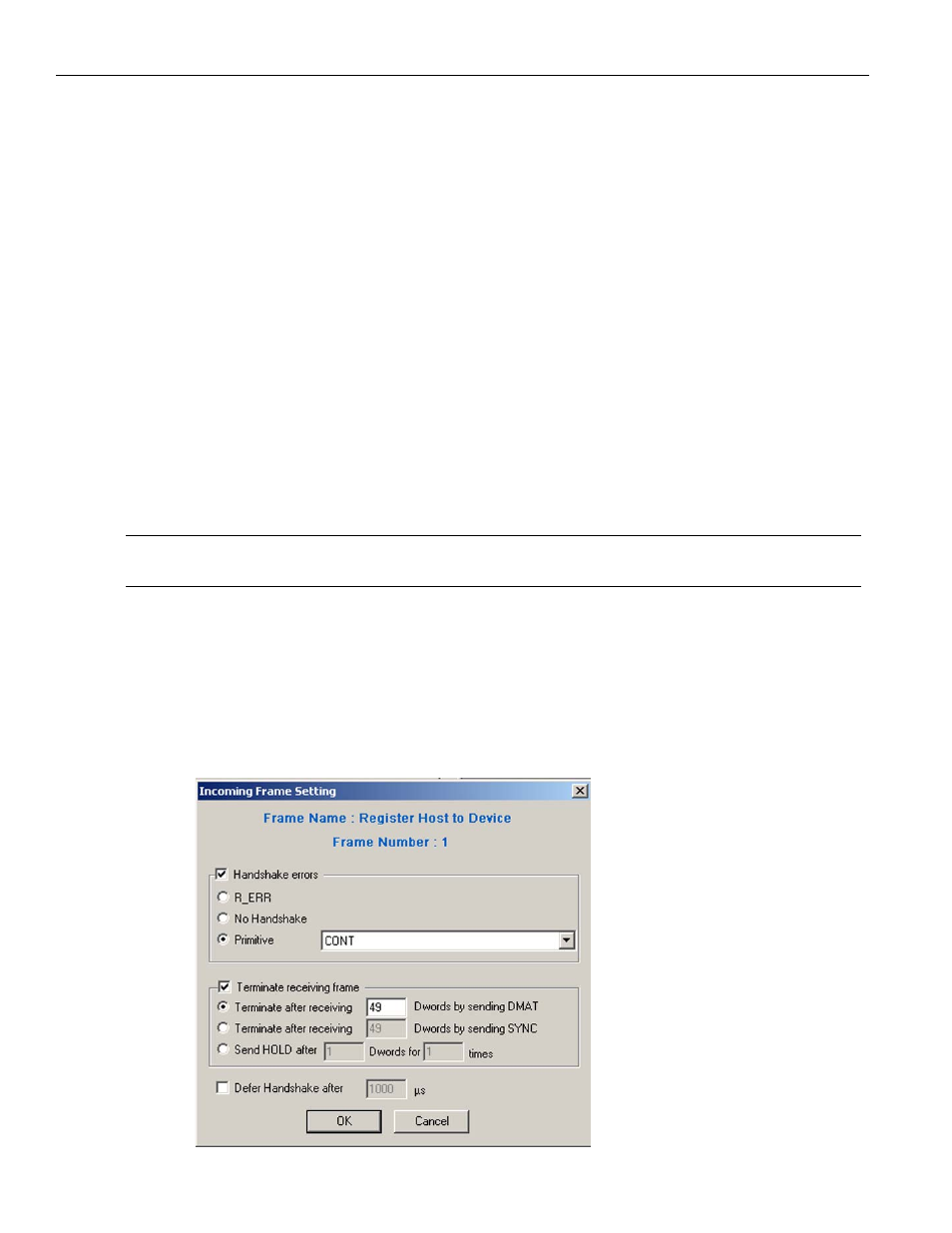

Incoming Frame Settings
Before selecting Incoming Frame Settings, select the Types Of Frames and the
Frame Number on which to inject an error. Then check Incoming Frame in the Generate
Error On area and then the enabled Settings button to display the Incoming Frame
Settings dialog.
