Set Speed Negotiating error
Click the Speed Negotiation tab to display the Speed Negotiation dialog.

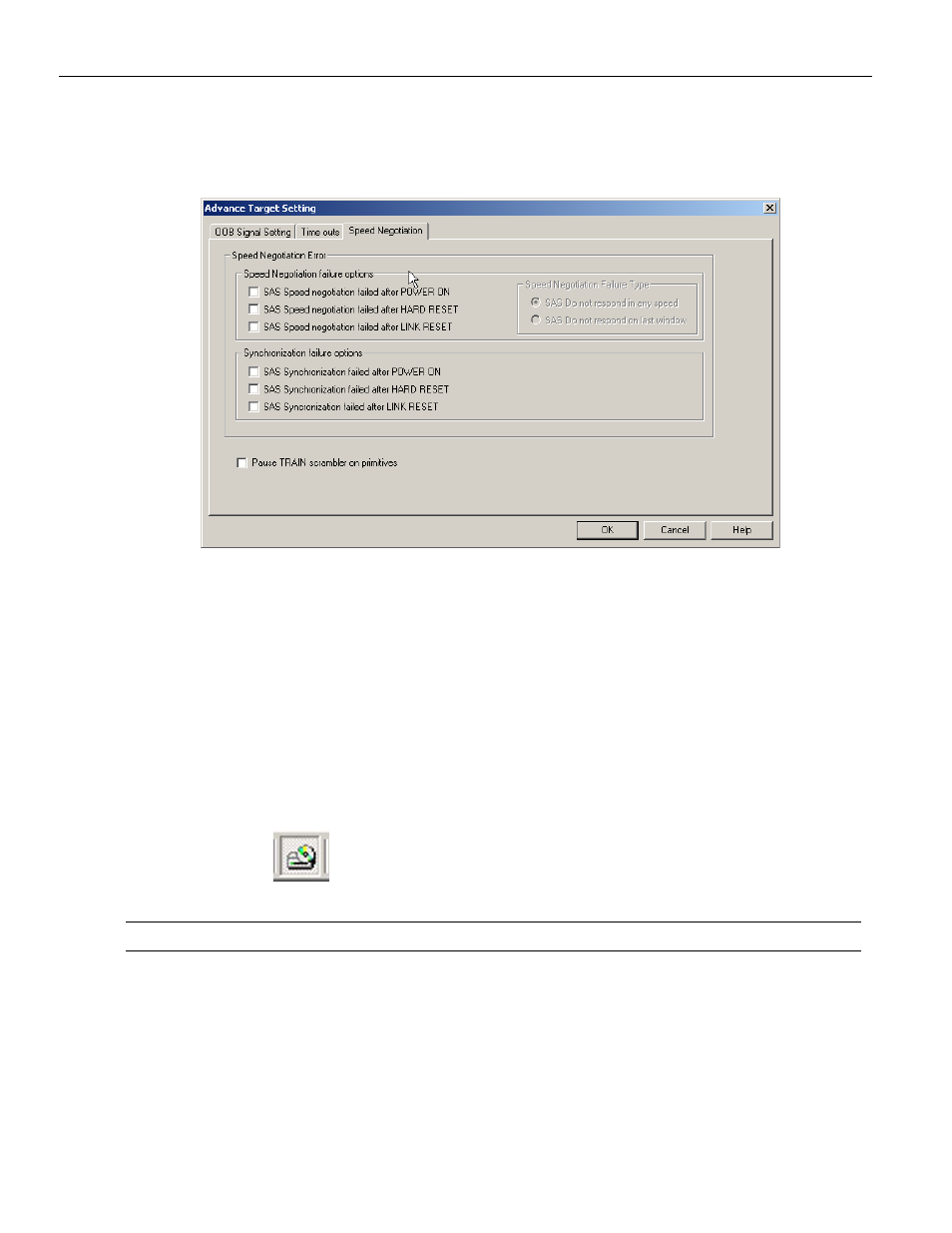

Figure 2.189: Speed Negotiating Error Setting Dialog
Check a Speed Negotiation Error check box and choose a failure type by checking a
corresponding option button. Additionally, you can choose the
Synchronization failure option.
Notes Tab
Click the Notes tab and enter a Project Name and a brief description of the
Target Emulation project (see
“Add a Project Note” on page 101 ).
Run Target Emulation
Click the Activate Device button or select Project Setup > Active Device to start
emulation.
Note: You can run the analyzer while device emulation is active to monitor bus traffic.
