Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 245
Display Configuration LeCroy Corporation
Set As Default
If you want to set these port aliases for sample files that will be captured later, you can set
them as default, and new samples will be opened by these default port aliases.
SAS Address Alias (SAS only)
SAS Address Alias allows you to assign a meaningful name to each SAS address to assist in
interpreting the results displayed in the sample view. To assign SAS address names in an
open sample view, select Configuration > Set SAS Address Alias.

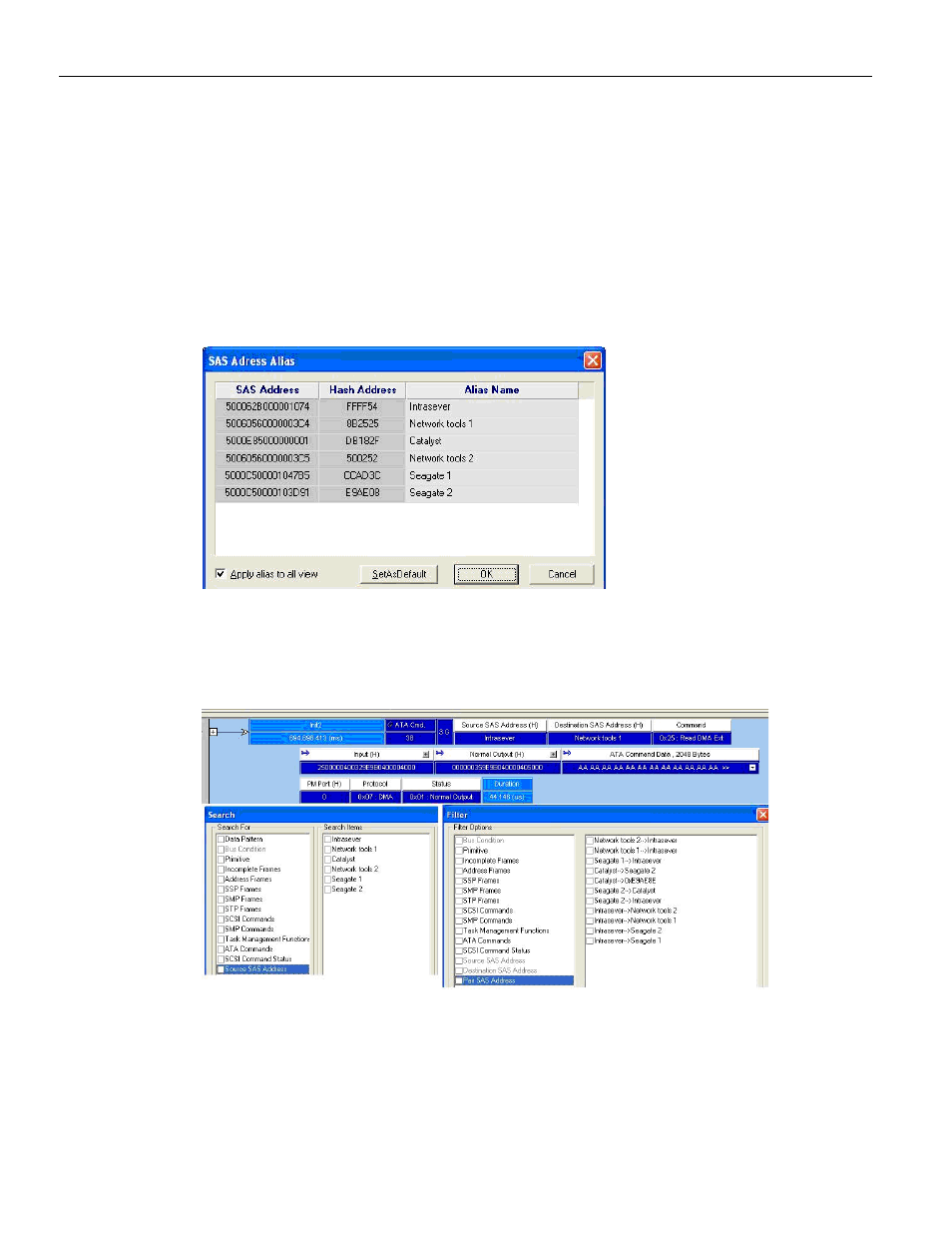

Figure 3.71: SAS: Assign SAS Address Alias
Assign a meaningful name to each SAS address in use and click OK. The assigned names
replace the SAS address in the sample view, Search, filter,. and Statistical report.
Figure 3.72: SAS: SAS Address Alias
If you elect to save the captured sample file, the assigned SAS address names are saved
together with the result, so that when you open the sample file later, the assigned names
are retained.
