LeCroy Corporation Easy Mode (Pre‐Defined Setups)
58 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

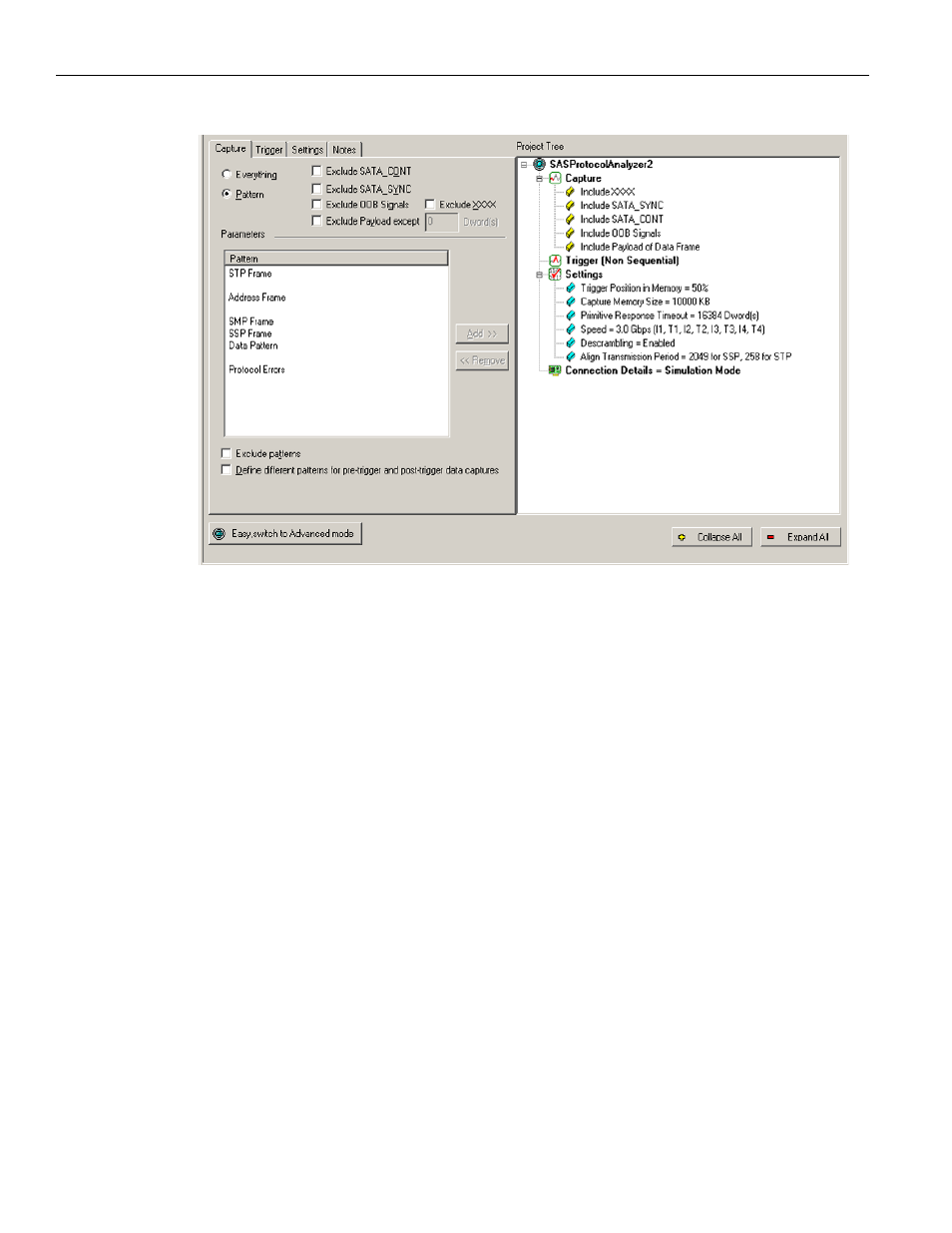

Figure 2.16: SAS: Choosing Capture Patterns
SAS vs. SATA: SATA Dialog replaces “Exclude SATA_CONT” with “Exclude CONT” and
“Exclude SATA_SYNC” with “Exclude SYNC”.
The SAS Parameters window displays the following pattern capture choice categories:
 STP Frame
 Address Frame
 SMP Frame
 SSP Frame
 Data Pattern
 Protocol Errors
The SATA Parameters window displays the following pattern capture choice categories:
 FIS
 FIS Pattern
 Data Pattern
 Protocol Errors
