Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 153
Exercise and Capture LeCroy Corporation

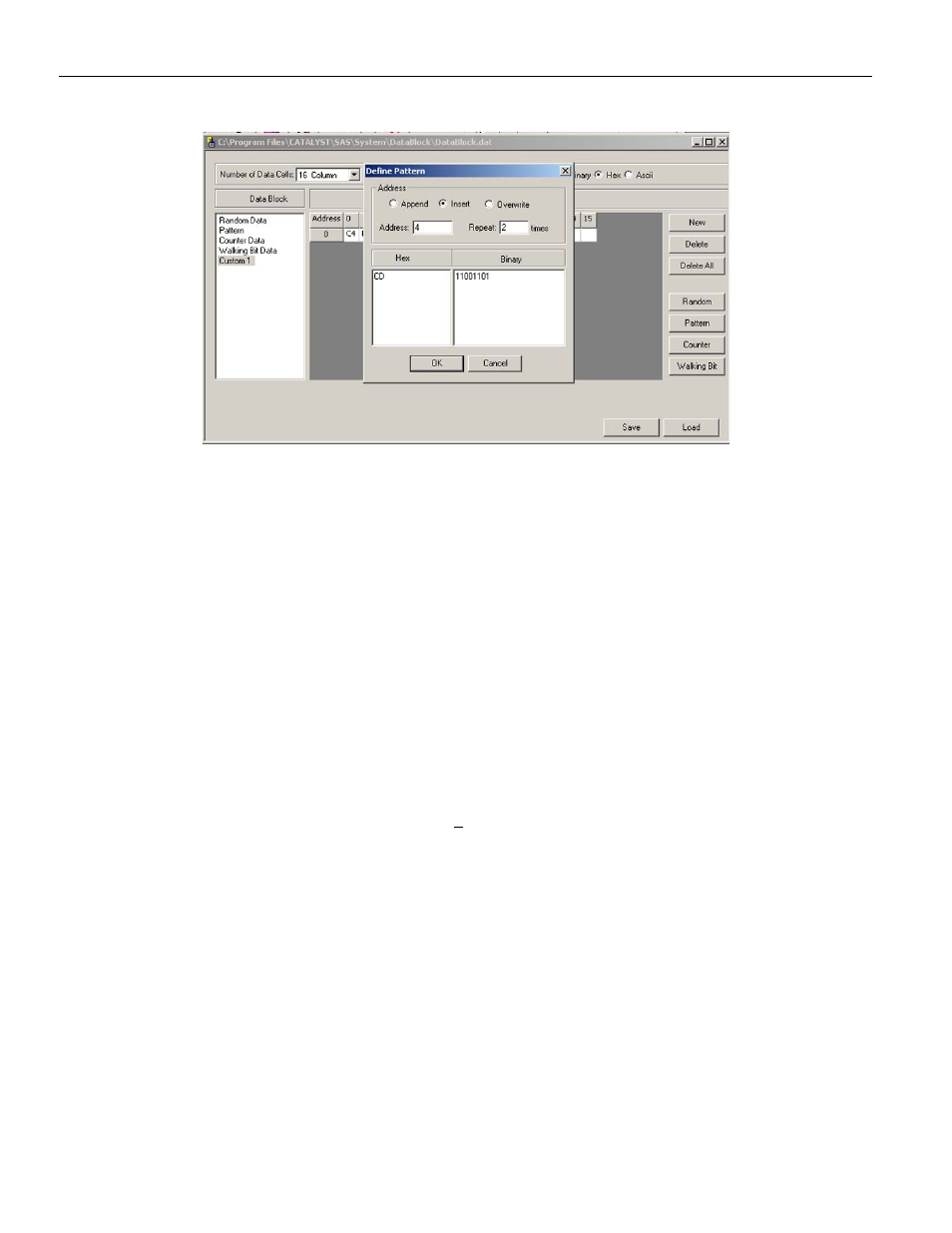

Figure 2.156: Define Your Own Data Pattern
Address
The cell address starts at 0 for the first data entry and automatically increments to the
next available address. You can set it to a previously defined address to modify its content
or insert additional data.
Insert/Overwrite Data
To define whether to overwrite data in a previously defined cell or insert new data after
that cell, toggle the Insert/Overwrite button.
Save
When you have completed a data block definition, click the Save button to save the newly
created data block.
Counter
To use a counter as data, click the Counter button, enter a Starting Number for the
counter and the data address to count to, and click OK (See
Figure 2.157 on page 154 .)
