Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 381
Overview of Generation and Global Settings Files LeCroy Corporation
Settings.inc File
The Settings.inc file contains global statements about the link, the type of device being
emulated, and other conditions that are to exist throughout part or all of the traffic
generation. This file must be included in the traffic generation file.
There are fifteen groups of settings in this file:
 AutoMode
 COMINIT/COMRESET OOB Signal
 COMWAKE OOB Signal
 COMSAS OOB Signal
 Generation Commands
 Link Speed
 SATA Link Initialization
 SAS Speed Negotiation
 SATA Speed Negotiation
 Autowait:
 SAS After
 SAS Before
 SATA After
 SATA Before
 Wait Command Timeout
 Scrambling Mode
Details about each group of settings are described in the Traffic Generation Language
section.

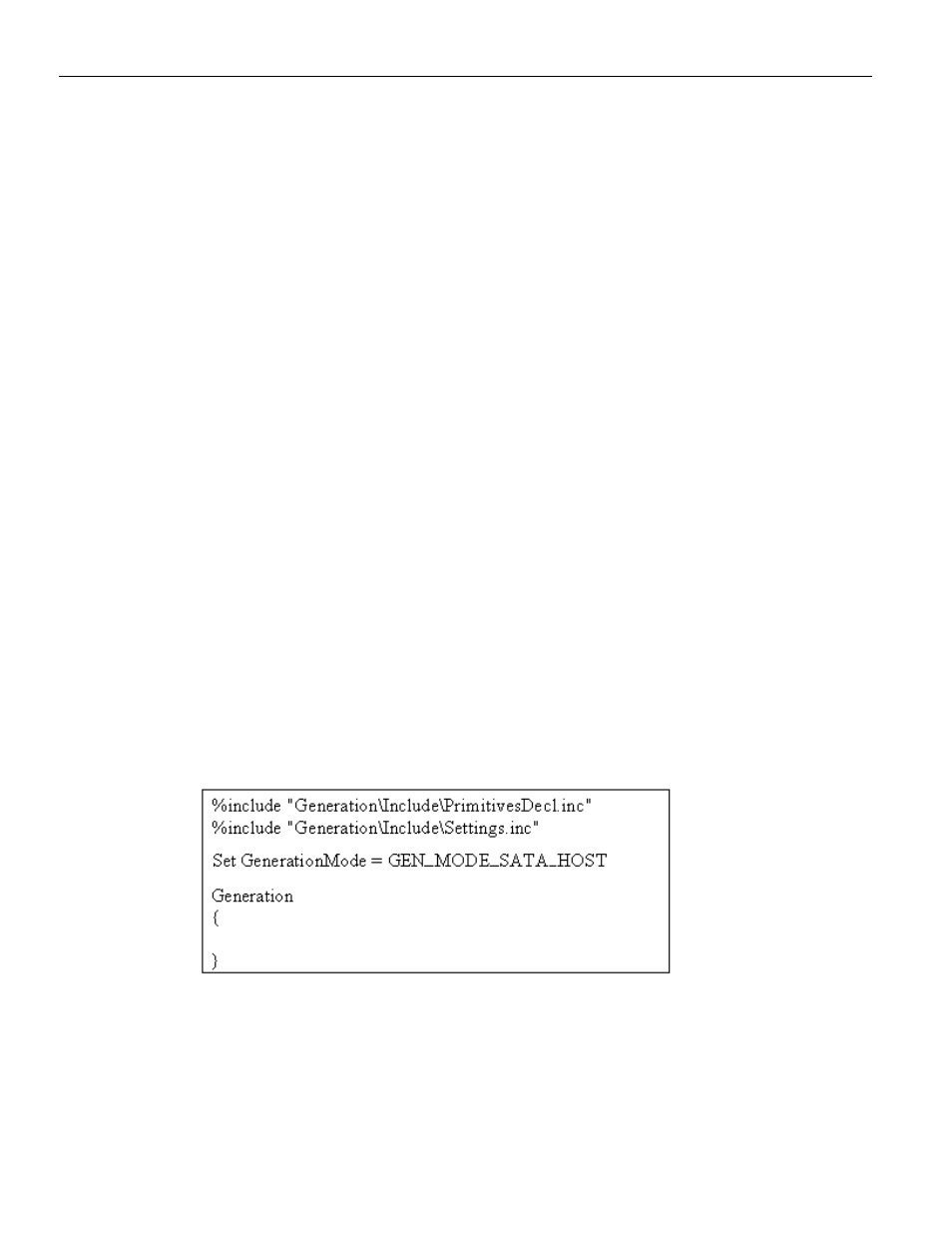

Editing Settings.inc
Text in the Settings.inc file can be edited directly or copied into the beginning of the
traffic generation file and edited there.
