LeCroy Corporation Switching Views
208 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

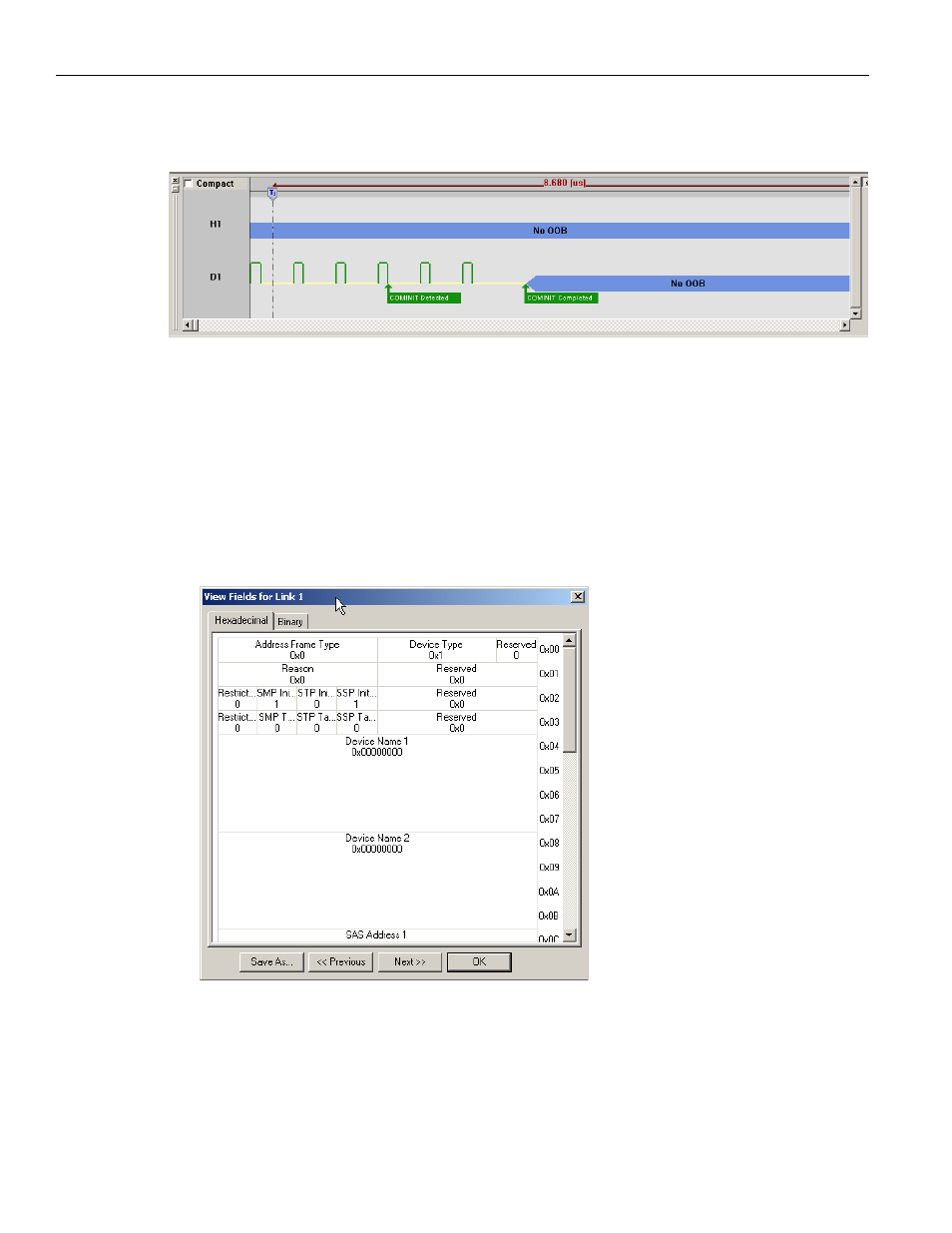

Expanded Waveform View
To see a 10x time scale expansion of the waveform, uncheck the Compact View checkbox in the
Waveform View window. The OOB Sequence has speed negotiation (Hardware version 4 or later).
Figure 3.36: SATA: Expanded Waveform View
Spec View
Spec View shows packet header information.
To obtain the Spec View from the CATC View, left‐click to display a popup menu, then
select the View Field option.
To obtain the Spec View from the Catalyst View, right‐click to display a popup menu, then
select the View Field option.
Figure 3.37: Spec View
The tabs allows you to display Hexadecimal or Binary.
The buttons allow you to go to Previous or Next.
You can Save As a text file.
