Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 185
Target and Device Emulation LeCroy Corporation
Ports Configuration
Click the Port Configuration button to display the Ports Configuration dialog (see “Ports
Configuration” on page 96 ).
Activation
Enter number of times and period of activation.
Advanced Options
Click the Advanced button to display the OOB Signal Setting, Power Management setting,
Speed Negotiation, NCQ Command setting and Miscellaneous additional setting dialogs.
OOB Signal Setting
Edit the default values displayed in the white editable fields.

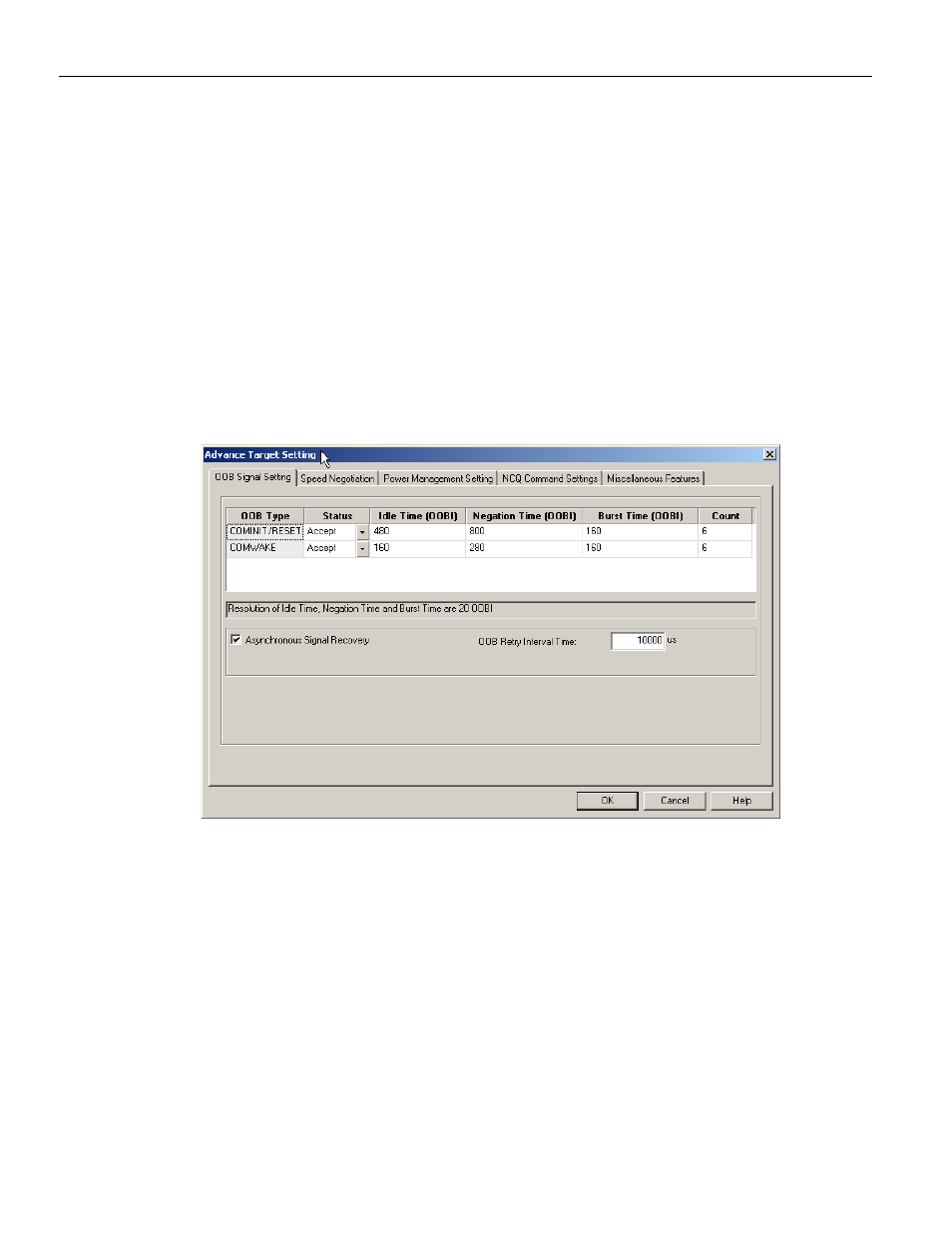

Figure 2.191: OOB Signal Setting Dialog
