Sierra Trainer Generation Language LeCroy Corporation
The default label for the first cell is Global State, which is active at all times.
Assigning an Action
After you have dropped the Event button in a cell in the Main Display area, you can assign
an action to the event.
Note: If you do not assign an action to an Event button, the Generator ignores the event.
To assign an action to an Event button:
1. Right‐click the Event button to display a pop‐up menu.

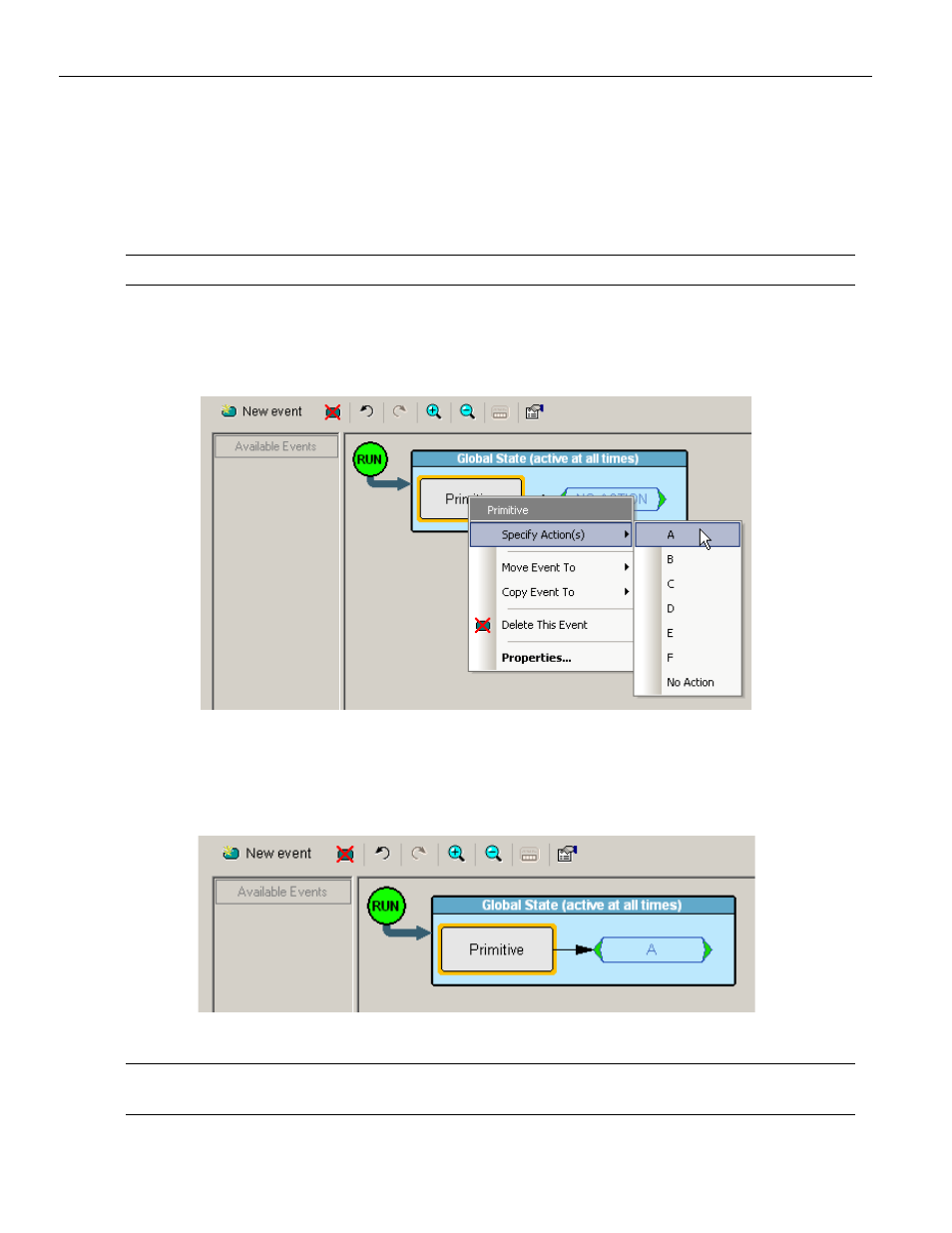

Figure 5.21: Action Menu
2. Select Specify Action, and then choose an action from the submenu. The menu
closes, and the action is assigned.
Figure 5.22: Action in Main Display
Note: You can also set actions within the Properties dialog for each event. Double‐click the Event
button to open the Properties dialog, then select the Actions tab and set your actions.
