LeCroy Corporation Target and Device Emulation
170 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
4. Click the down arrow on the ClOSE Primitive or DONE Primitive dropdown list box
in the Close Connection Settings dialog, then choose a Close or Done Primitive.
5. Enter a value in the CLOSE/BREAK Primitive Count text box.
SAS Commands Errors (SAS only)
Click the SAS Commands icon in the Errors window to display the
Commands Error Setting dialog.

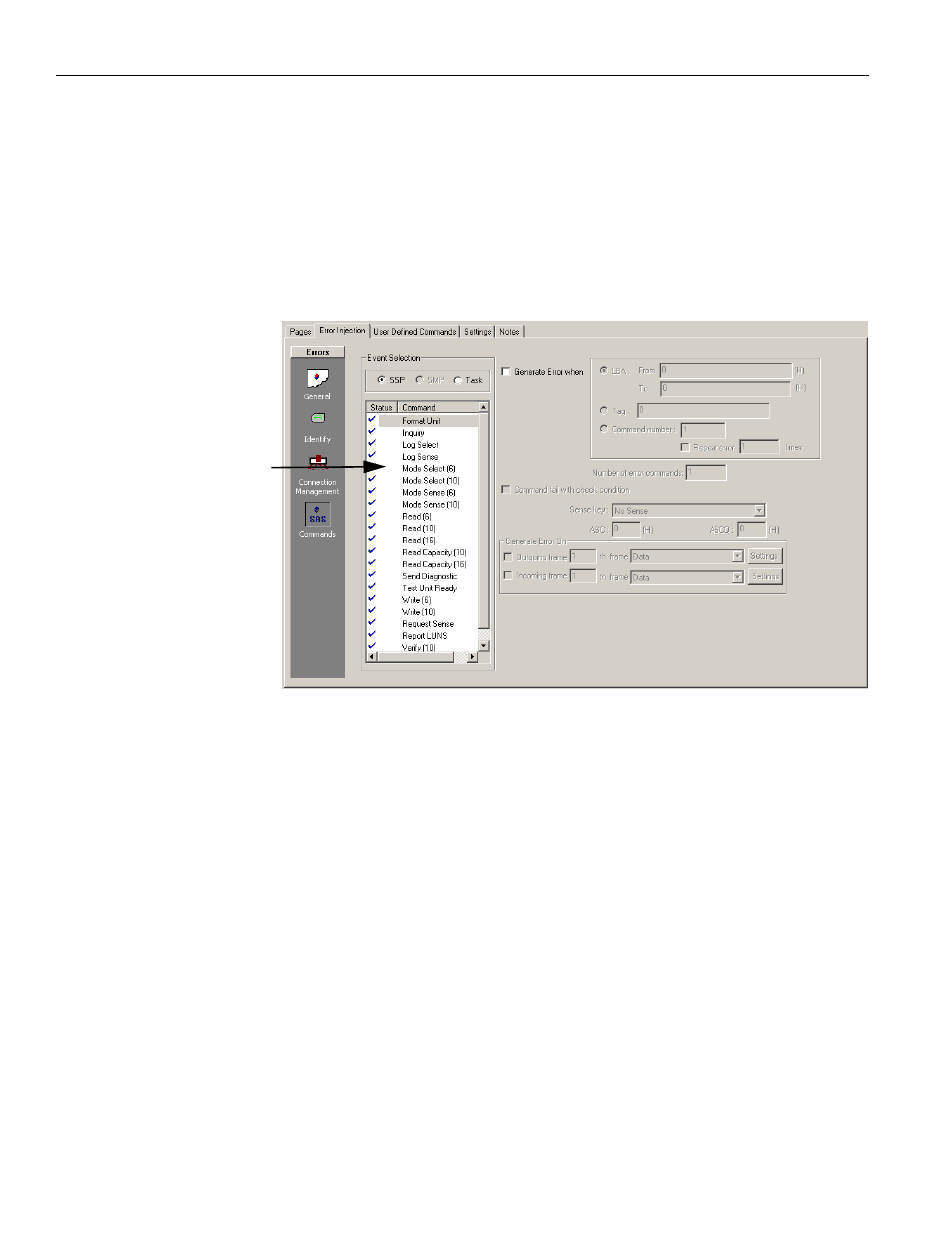

Figure 2.177: SAS: SAS Commands Error Setting Dialog
1. Click the SSP, SMP or Task option button to display the commands available for each
of these categories in the Event Selection window.
2. Click a command for which to set an error, check the Generate Error when: check
box, then enter values for LBA, TAG, or Command number in the corresponding text
box.
Command number specifies the number of the command for which you want to
inject error. For example, if you select the Inquiry command, then enter 2 for the
Command Number, you inject error on the 2nd Inquiry command.
Number of error commands specifies the number of commands for which you want
to inject error. For example, if you select the Inquiry command, then enter 2 for the
Command Number, and enter 3 for Number of Error Commands, the target
emulator injects error on the 2, 3, and 4 Inquiry commands, because you want to
inject on 2nd command and continue error injection as much as 3 times.
When using Command Number as the Error Injection filter, you can repeat the
erring‐command sets by checking Repeat error. The default value is 1, which injects
error only once, with no repeats. In the above example, the system injects error on
the 2, 3, and 4 Inquiry commands and does not inject error for other commands. 
If you enter 2 for Repeat Error, the system injects error on the 2nd, 3rd, 4th, 6th,
Status
Indication
