Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 163
Target and Device Emulation LeCroy Corporation

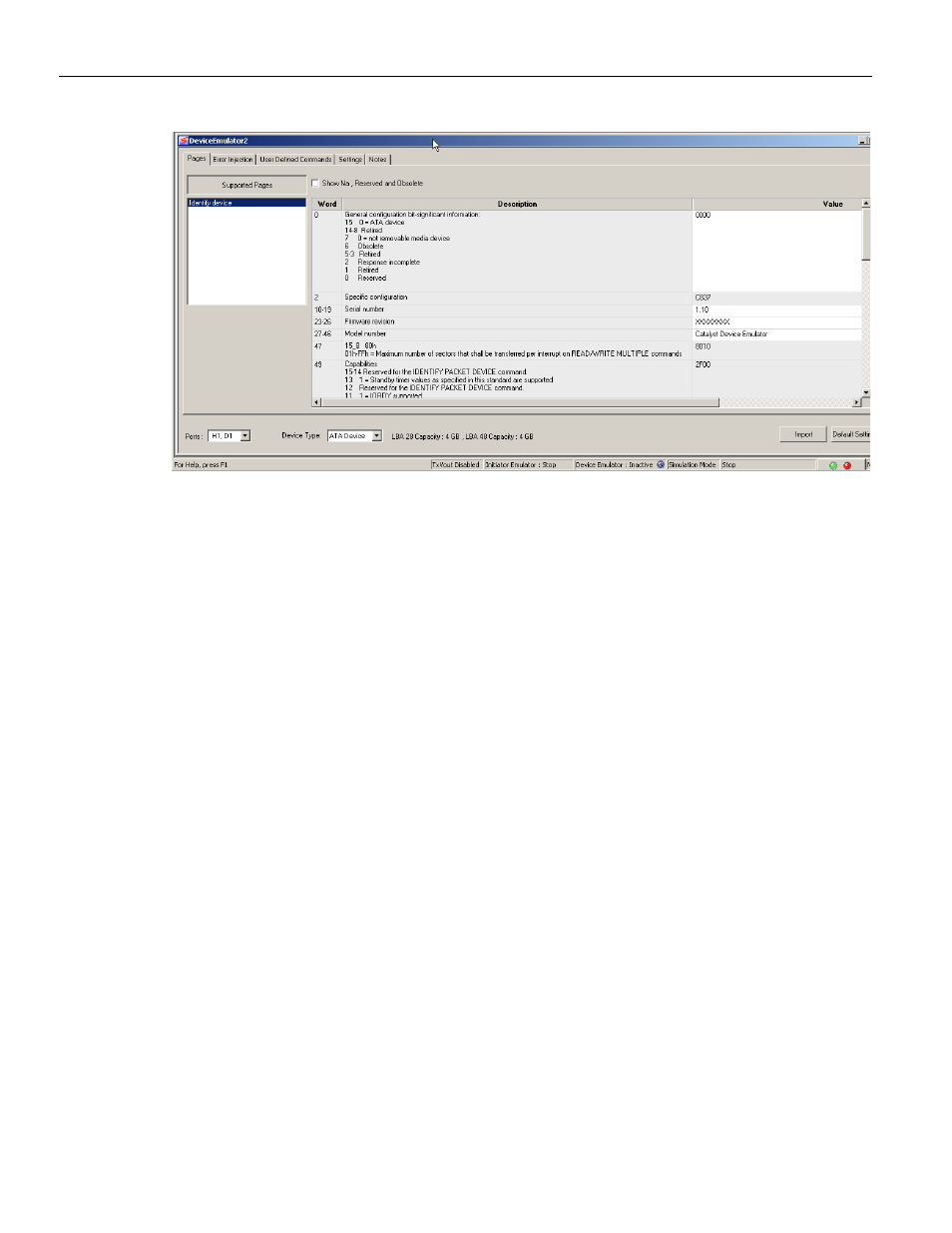

Figure 2.167: SATA: Device Emulation Project Pages Tab
The Device Emulator pages open with default settings for each page. To change settings
for your application:
1. Set the Device Type of either ATA or ATAPI
2. Set values for each of the enabled (White) Value fields on the Identify page.
3. To reset the pages to the default settings, click the Default Settings button.
4. To use a previously defined emulation, click the Import button and select an
emulation.
Writable Buffer Size Field
Writable buffer size field is about 3.5 GB.
