Sample Viewer Tab

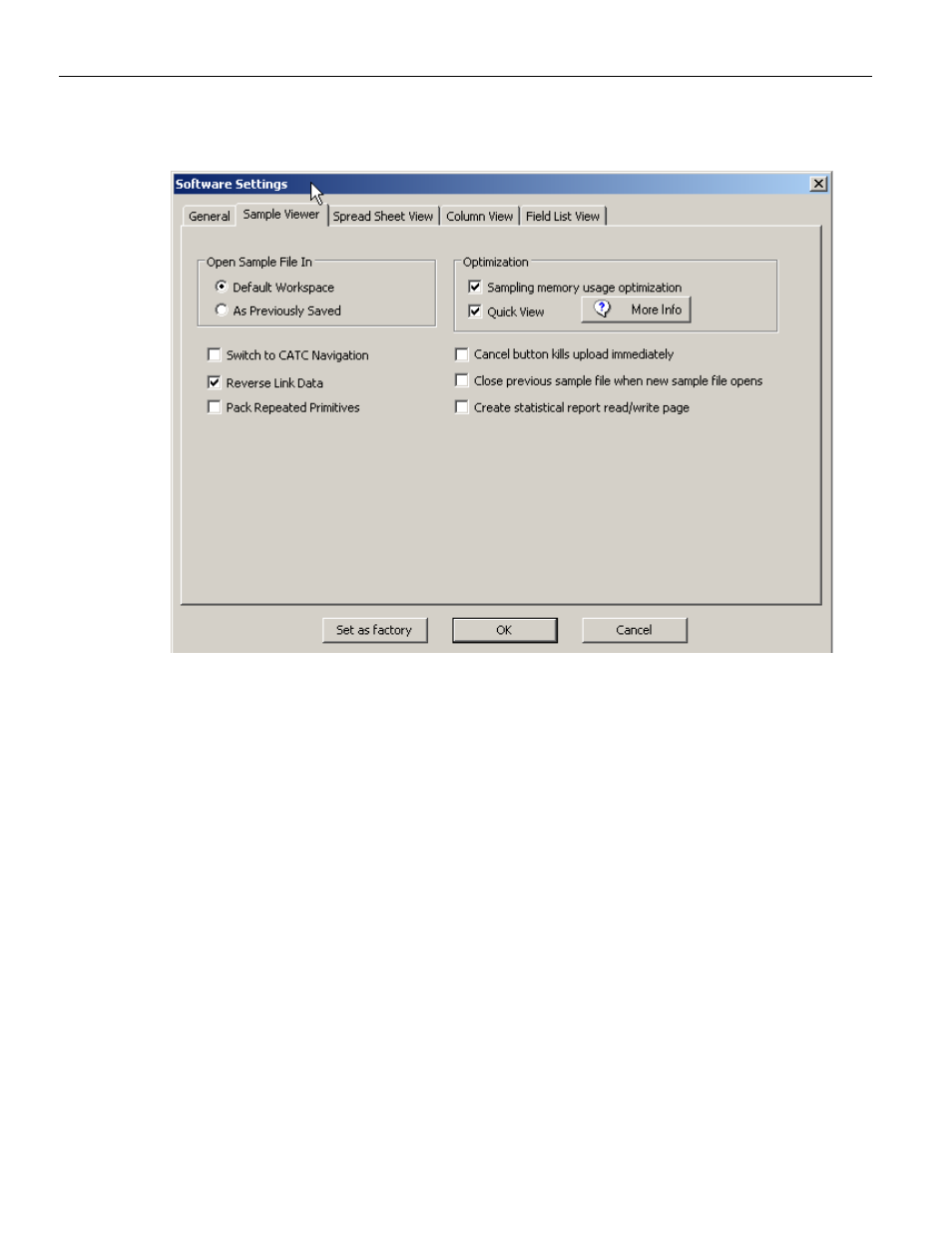

Figure 3.75: SAS: Software Settings Dialog Sample Viewer Tab
The SATA Software Settings dialog has the same options.
Open Sample file In
Default Workspace: The software opens a sample file in view(s) based on the specified
default workspace.
As previously saved: The software opens a sample file in view (views) based on the last
saved configuration for the sample file.
Optimization
Sampling memory usage optimization: Enables memory cascading for two ports. The
analyzer will use memory of another port if there is not data on another port. (see
“Sampling Memory Usage Optimization” on page 253 )
Quick View: Quick View allows full access to the whole trace more quickly, especially
when using a Gigabit Ethernet connection. However, the trace is NOT written to the Host
PC hard drive. To save the trace, you must manually click Save.
If you do not check Quick View, the trace loads more slowly but is automatically saved to
the Host PC hard drive.
Other
Switch to CATC Navigation: Packet view will open in CATC mode.
