LeCroy Corporation Switching Views
204 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

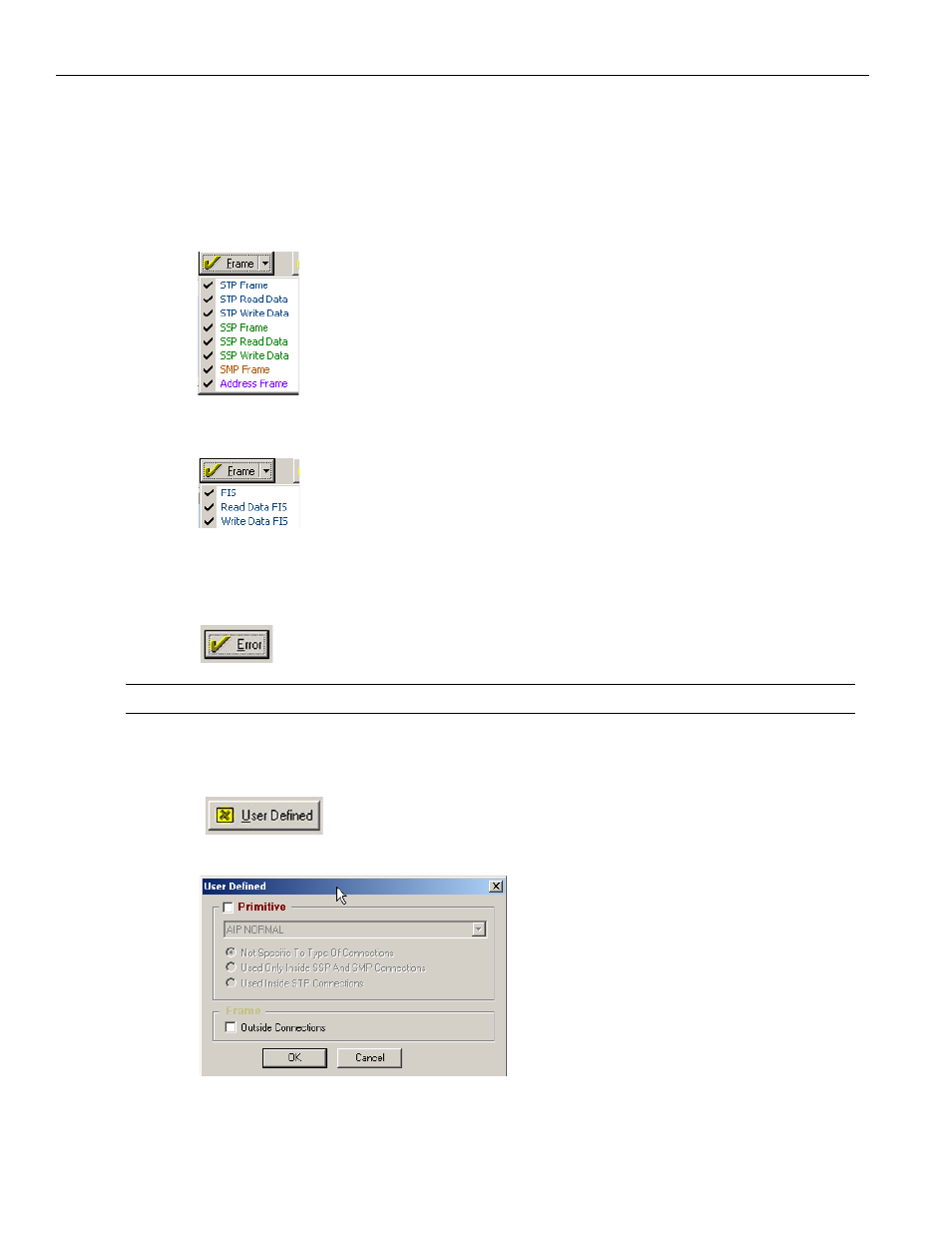

Hide Frames
You can customize the histogram by including only frame types that you want.
To choose frame types to include in the display, click the down arrow on the Frame
button on the Histogram toolbar and check frame types:
Figure 3.26: SAS: Histogram Frames
Figure 3.27: SAS: Histogram Frames
Hide Error Frames
Frames with errors are displayed in red. To hide error frames from the histogram, click the
button.
Note:
To display the error code of a protocol error, click the error icon (with the red 'x').
User Defined
You can define additional items for inclusion in the Histogram by clicking the
button to open the User Defined dialog.
Figure 3.28: SAS: Histogram User Defined Dialog
You can include Primitive and/or Outside Connections frames.
