LeCroy Corporation Statistical Report
268 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Bus Condition Report
To display the Bus Condition Report, click the Bus Condition tab. The Bus Condition
Report displays information in the following columns.
 Bus Condition: All, Custom, Activity On, COMININT/COMRESET, COMSAS, COM‐
WAKE, Keep Alive Activity
 Direction: All, H‐>D, D‐>H, I‐>T, T‐>I, or Custom
 Count: All, Custom, or a number of occurrences
 %: of total count

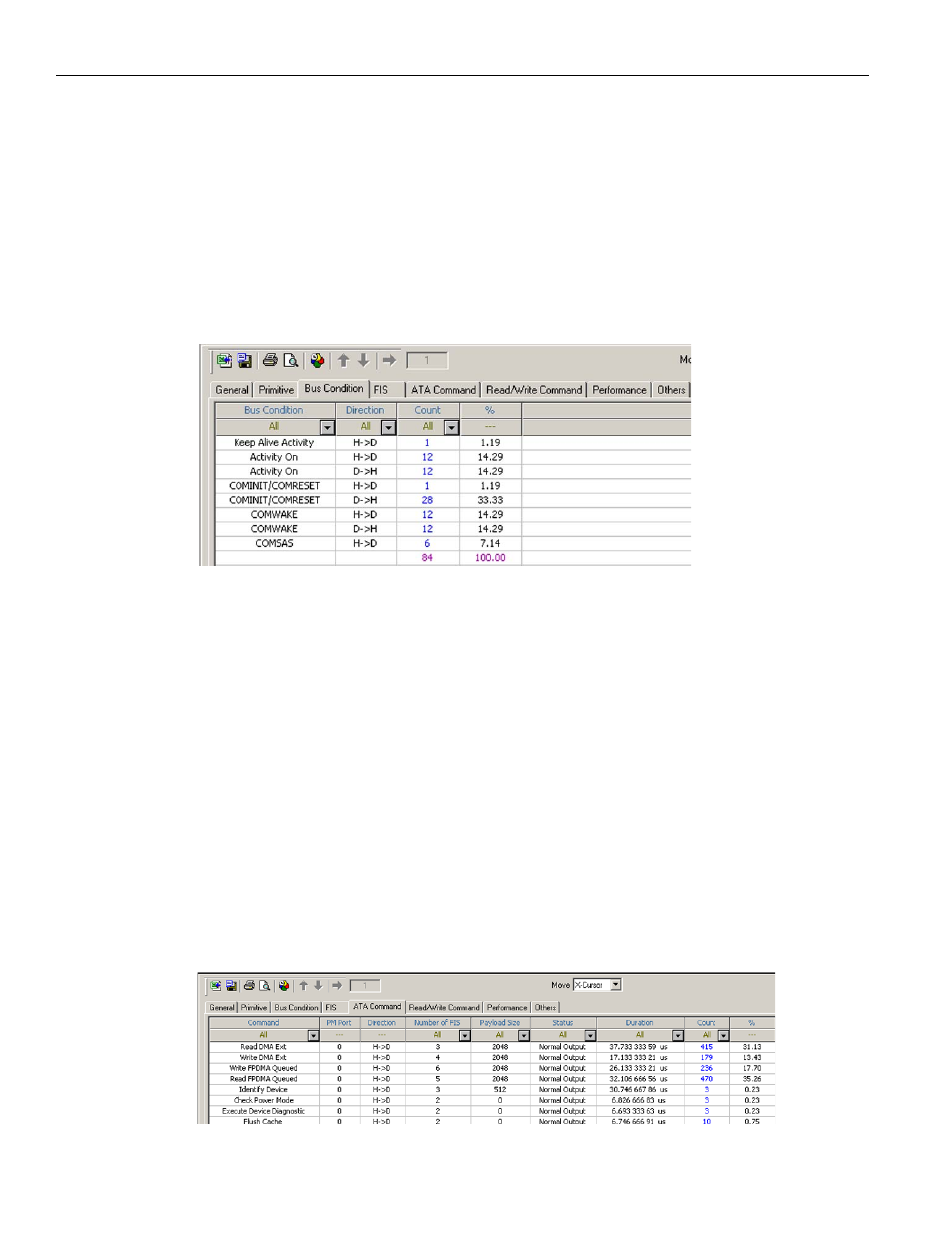

Figure 3.96: Bus Condition Report
ATA Command Report
To display the ATA Command Report, click the ATA Command tab. The ATA Command
Report displays information in the following columns:
 Command: All, Custom, Check Power Mode, Execute Device Diagnostic,
Flush Cache, Identify Device, Read DMA Ext, Read FPDMA Queue, Set Feature,
Write DMA Ext, Write FPDMA Queue
 PM Port
 Direction: All, H‐>D, D‐>H, I‐>T, T‐>I, or Custom
 Number of FIS: All, Custom, or a number
 Payload Size: All, Custom, or a number of DWORDs
 Status: All, Custom, Incomplete, Normal Output
 Timeout: such as N/A
 Duration: All, Custom, or time unit
 Count: All, Custom, or a number of occurrences
 %: of total count
Figure 3.97: SATA: ATA Command Report
