Teledyne LeCroy STX M6-1 SAS_SATA Protocol Analyzer User Manual User Manual
Page 162
LeCroy Corporation
Performance Analysis
160
Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

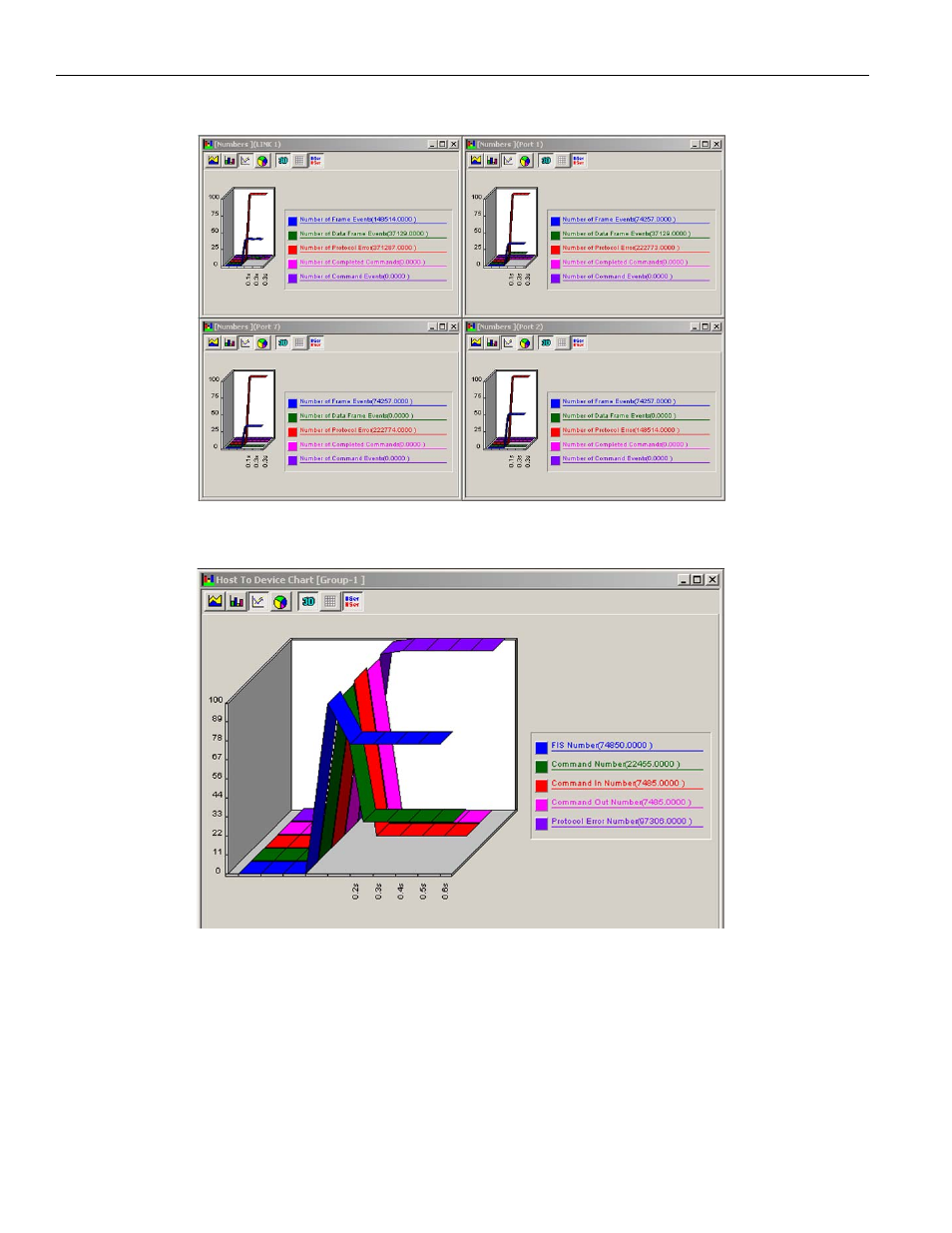

Figure 2.164: SAS: Performance Analysis Real Time Display
Figure 2.165: SATA: Performance Analysis Results Display
Alternate Display Format
You can display the result as 2D, 3D, and so on, by clicking the corresponding Graphics
Setting on the Performance Analysis toolbar.
