Adding a User-Defined SCSI Command (SAS only)
Click the Insert SCSI Command button and choose User Defined. This enters an
SCSI command line with editable fields to define your own custom command.

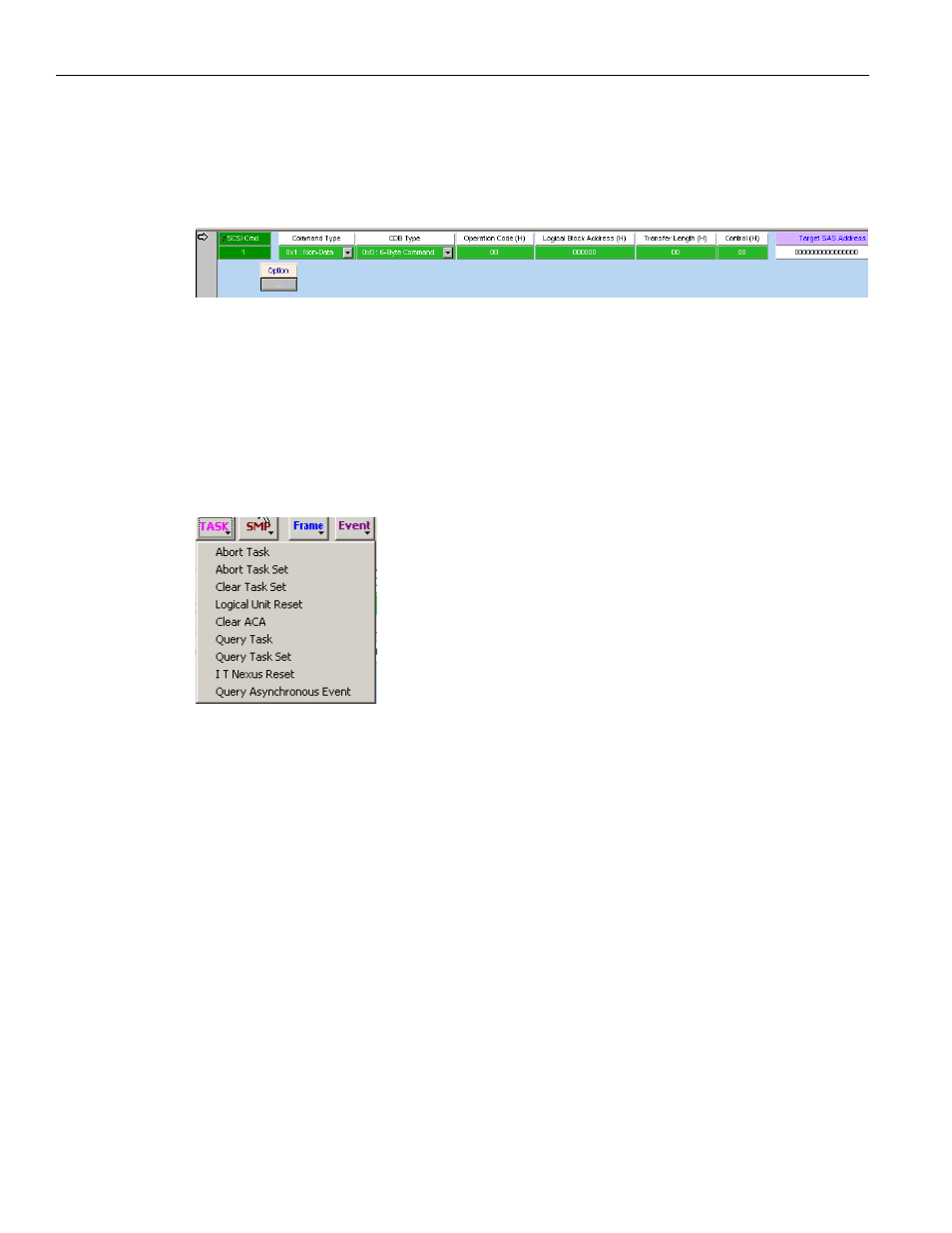

Figure 2.92: Insert SCSI Command
User‐defined SCSI commands are Non‐Data, Read from Block Device, Read from Non‐
Block Device, Write to Block Device, Write to Non‐Block Device, Bi‐Directional from Block,
Skip_Write, and Skip_Read.
Adding a TASK Command (SAS only)
Click the Insert Task Command button and choose the command to insert.
Figure 2.93: SAS: TASK Dropdown List
Task Commands:
Abort Task
Abort Task Set
Clear Task Set
Logical Unit Reset
Clear ACA
Query Task
Query Task Set
I T Nexus Reset
Query Asynchronous Event
