 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

191

Chapter 3

Display Manipulation

Viewer Display

After data is captured (Recorded), the Viewer displays a sample file (.scs for SAS and .sts
for SATA) in Packet View.

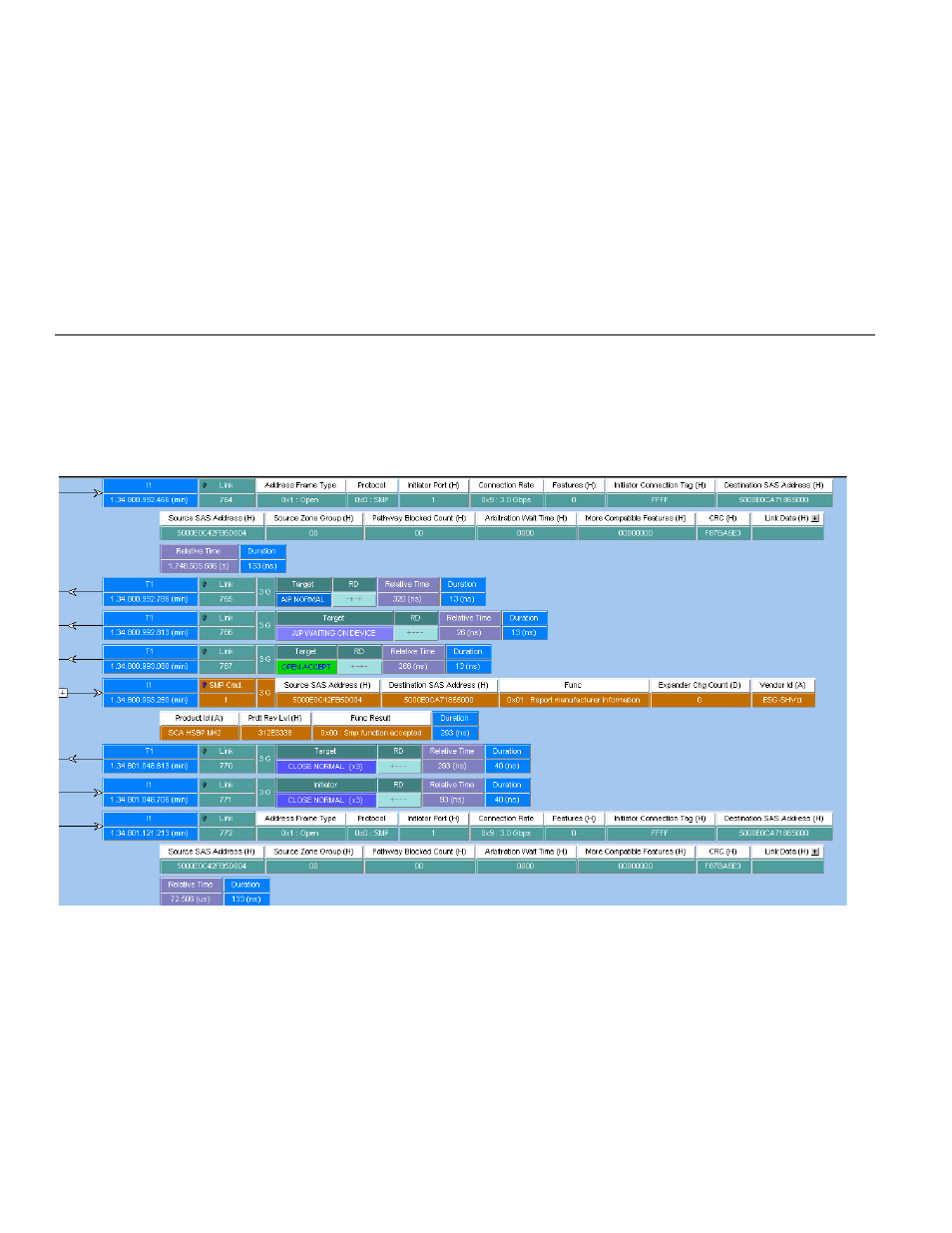

Figure 3.1: SAS: Packet View of .scs Sample File
