LeCroy Corporation Exercise and Capture
138 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Frame Type Error
Check this to introduce a frame type error.
Remove Frame from sequence
Check this to remove frame from sequence.
Delay in sending frame
Check this to delay sending frame and enter a value for the delay.
Frame Length Error
Check Frame Length Error, then choose the type of error to introduce.
Code violation and Disparity error
Check these and specify DWORD offset and the number of error DWORDs.
Don’t check credit
Check this to disable credit checking.
SOF, EOF and CRC errors
Check these and specify Double or Omit by checking the corresponding option button.
Insert Primitive
Check Insert Primitive, click the Type button to open the Primitive Type dialog, then
select the primitive type.
Field of Frame
Select Destroy, scroll through the available choices in the Field of Frame list box, and
choose a field to destroy. Alternatively, you can select Specify Value to fill the chosen
field with a pre‐defined value.
Insert Frame
You can insert a frame before or after the current frame. To insert a frame, check Insert
Frame, check the option button at which to insert the frame, and choose a Frame Type.

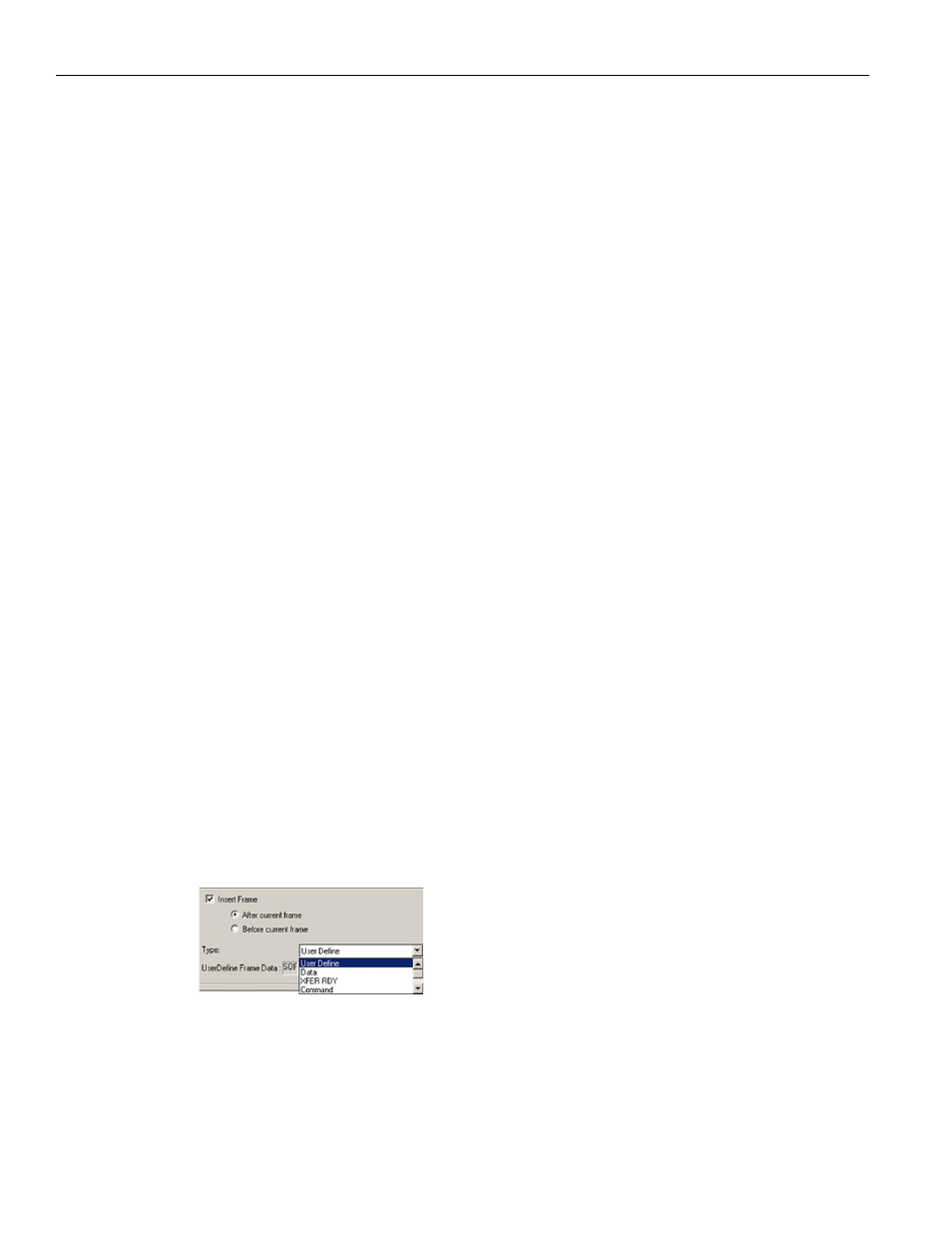

Figure 2.136: SAS: Insert Frame
