Connection Parameters
To display the connection parameters, select Generate > Connect Parameters.

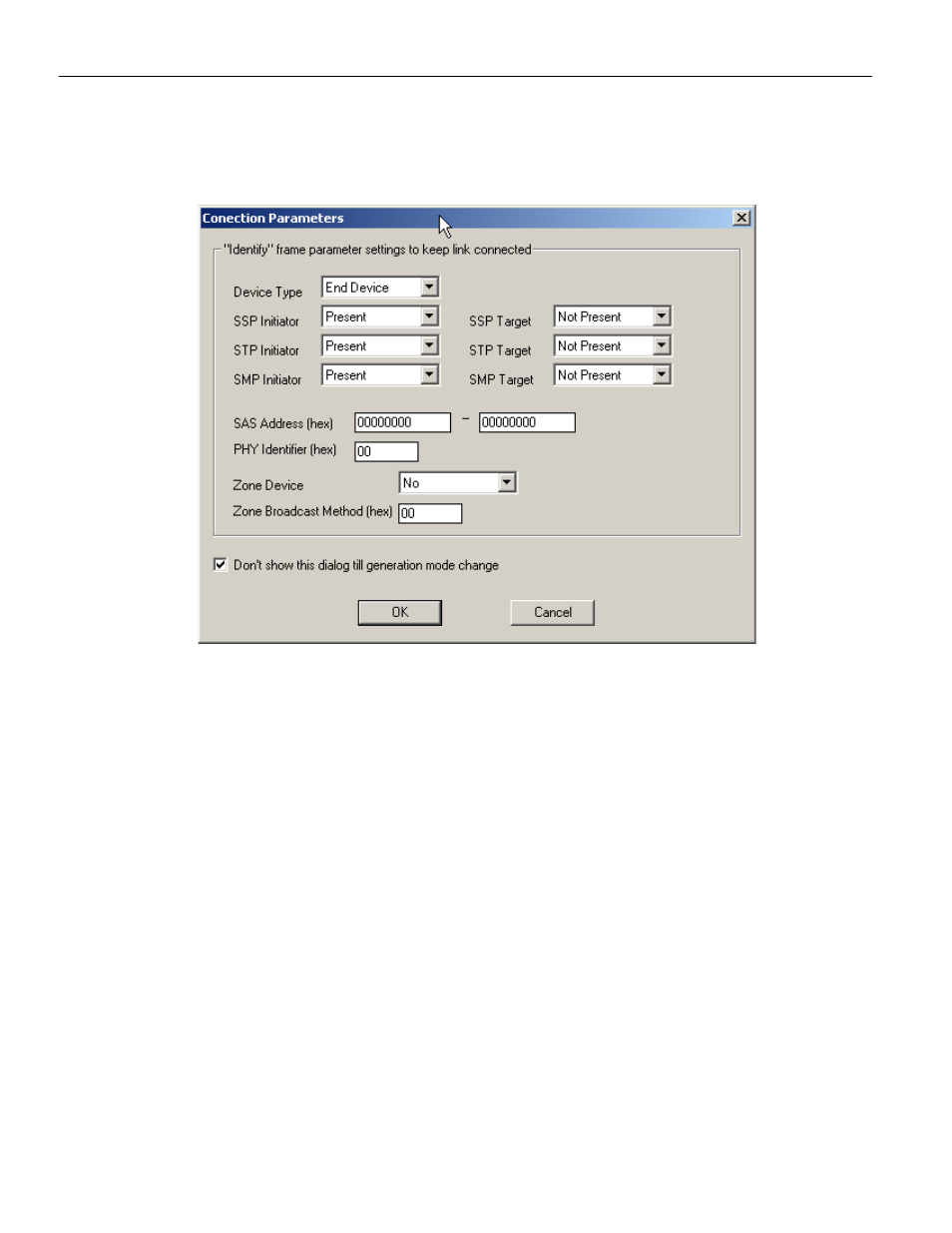

Figure 5.33: Connection Parameters Dialog
You can set the “Identify” frame parameter settings to keep the link connected:
 Device Type: End Device, Edge Expander, or Fanout Expander
 SSP Initiator: Present or Not Present
 STP Initiator: Present or Not Present
 SMP Initiator: Present or Not Present
 SSP Target: Present or Not Present
 STP Target: Present or Not Present
 SMP Target: Present or Not Present
 SAS Address (hex): eight digits ‐ eight digits
 PHY Identifier (hex): two digits
 Zone Device: Yes or No
 Zone Broadcast Method (hex): two digits
You can select to not show the dialog until there is a generation mode change.
