Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

Easy Mode (Pre‐Defined Setups)

LeCroy Corporation

ATA Command Pattern (SATA only)

Double‐click ATA Command Pattern to open the ATA command pattern selection dialog.

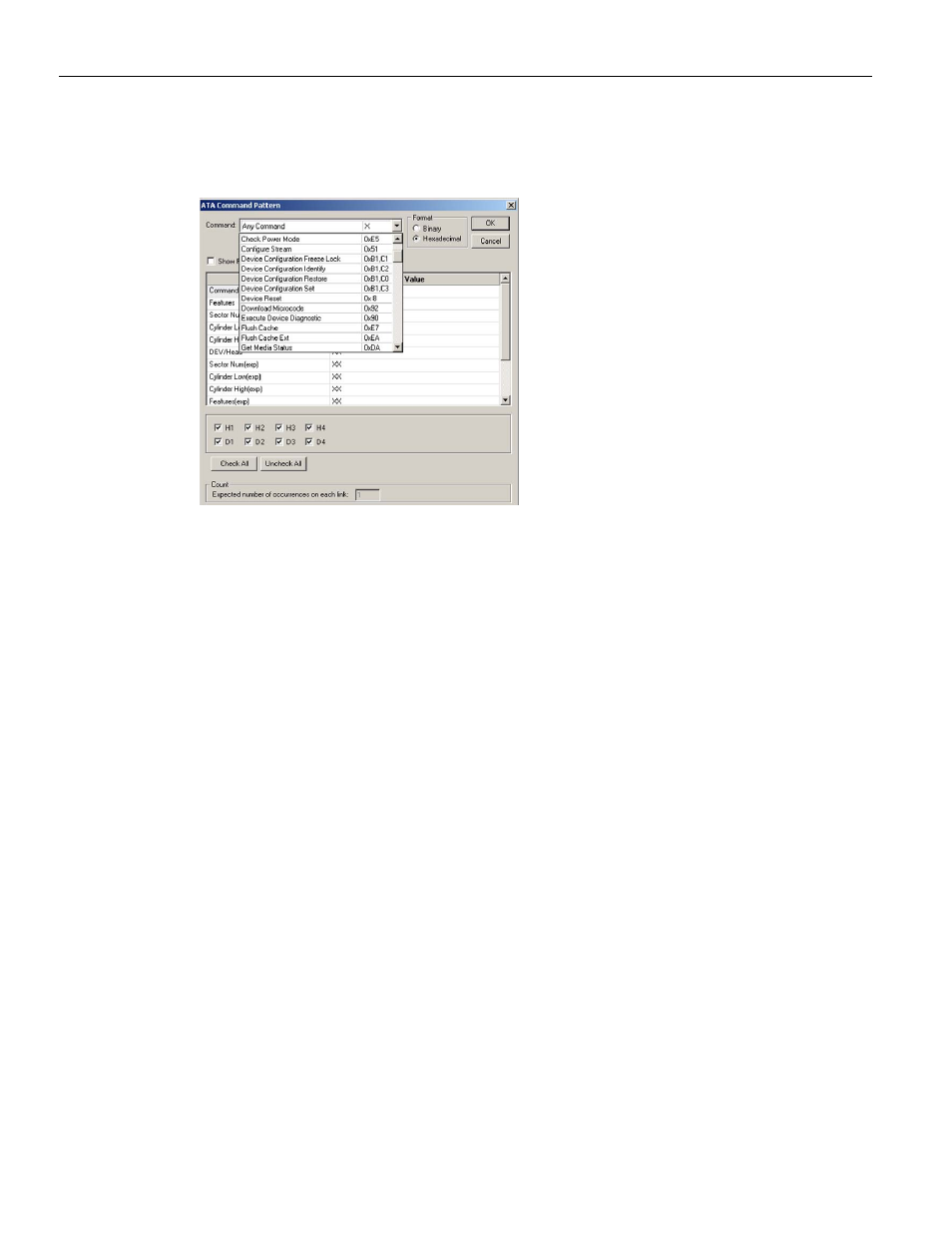

Figure 2.57: SATA: ATA Command Pattern Dialog

SAS vs. SATA: Not available in SAS.

Click the down arrow next to the Command list box, choose an ATA command, and click
OK.
