Easy Mode (Pre‐Defined Setups)

76





Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

Primitive

Double‐click Primitive in the Patterns window of the Trigger dialog to open the Primitive
dialog.

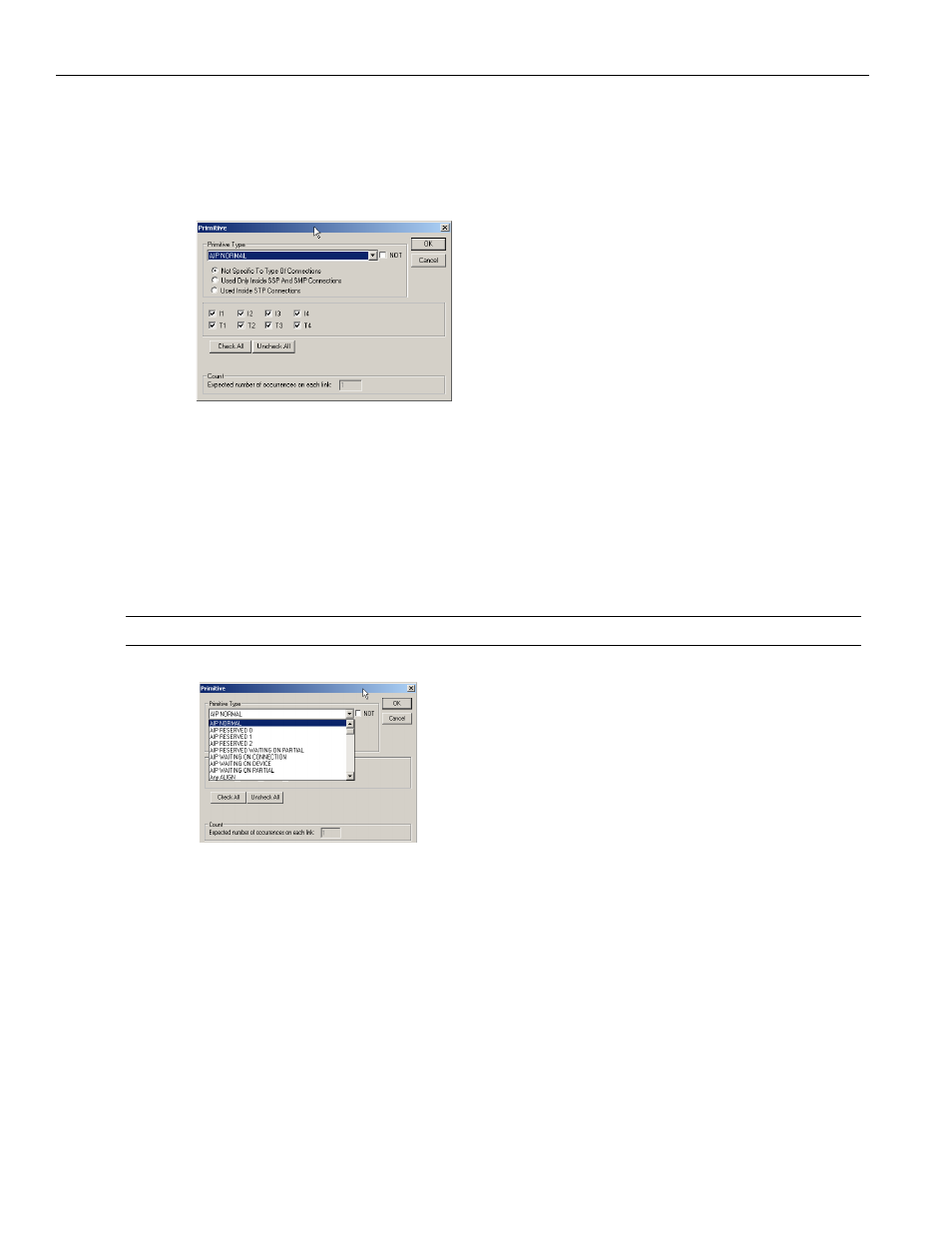

Figure 2.44: SAS: Primitive Dialog

SAS vs. SATA: SATA Dialog has no radio buttons and has different drop‐down options.

Click the down arrow next to the Primitive dropdown list, scroll the list to choose a
primitive on which to trigger, and click OK.

Note:

Check the box to the right of the Primitive Type to use the logical NOT.

.

Figure 2.45: SAS: Primitive Selection Choices

SAS vs. SATA: SATA Dialog has different choices.
