Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 149
Exercise and Capture LeCroy Corporation
Settable options are:
 Set Align Transmission Period, Primitive Response Timeout and Await Align
Timeout.
 Choose ATA Command timeout recovery action by checking the corresponding
option button.
 Specify Speed Negotiating Failure Option(s) and a Speed Negotiation Failure
Type.
OOB Signal Setting Tab
Click the OOB Signal Setting tab in the Advanced Host Setting dialog to specify
OOB parameters in the enabled editable fields.
.

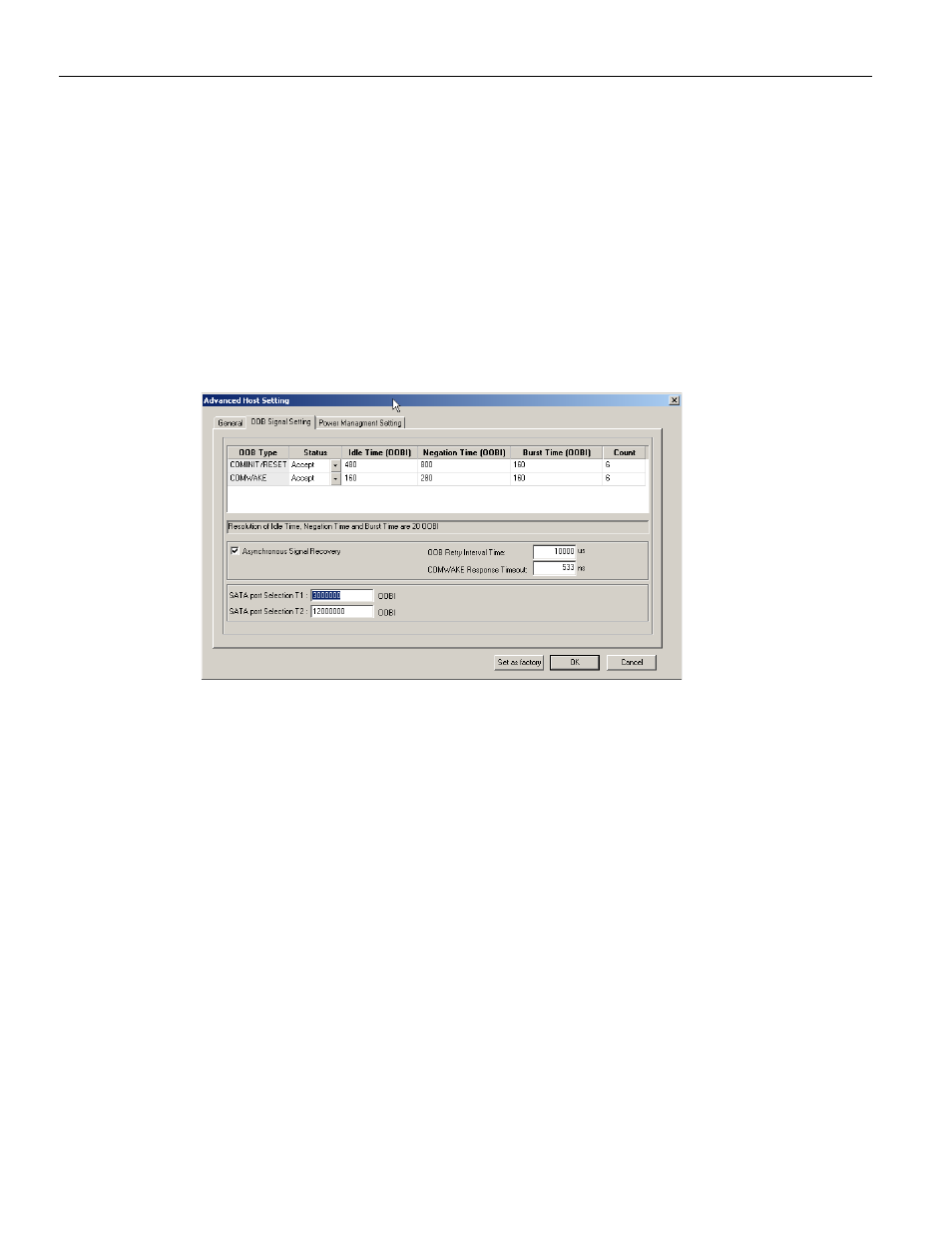

Figure 2.150: SATA: OOB Signal Setting Tab
Asynchronous signal recovery
Set the OOB Retry Interval Time, check the Asynchronous signal recovery option check
box and enter a value for the time.
Inter-reset Delay Settings
Enter a value for SATA port Selection T1 to specify the inter‐reset‐ assertion delay for the
first event of the selection sequence and SATA port Selection T2 to specify the inter‐reset‐
assertion delay for the second event of the selection sequence.
