CrossSync Control Panel
The CrossSync Control Panel allows you to select analyzers for synchronization and
manage the recording process.
Launching the CrossSync Control Panel
To launch CrossSync from the SAS/SATA Protocol Suite software application, select the
‘Launch CrossSync Control Panel‘ entry in the ‘Project Setup’ menu (see the screens
below). Or, you can launch CrossSync from the ‘Start’ menu.

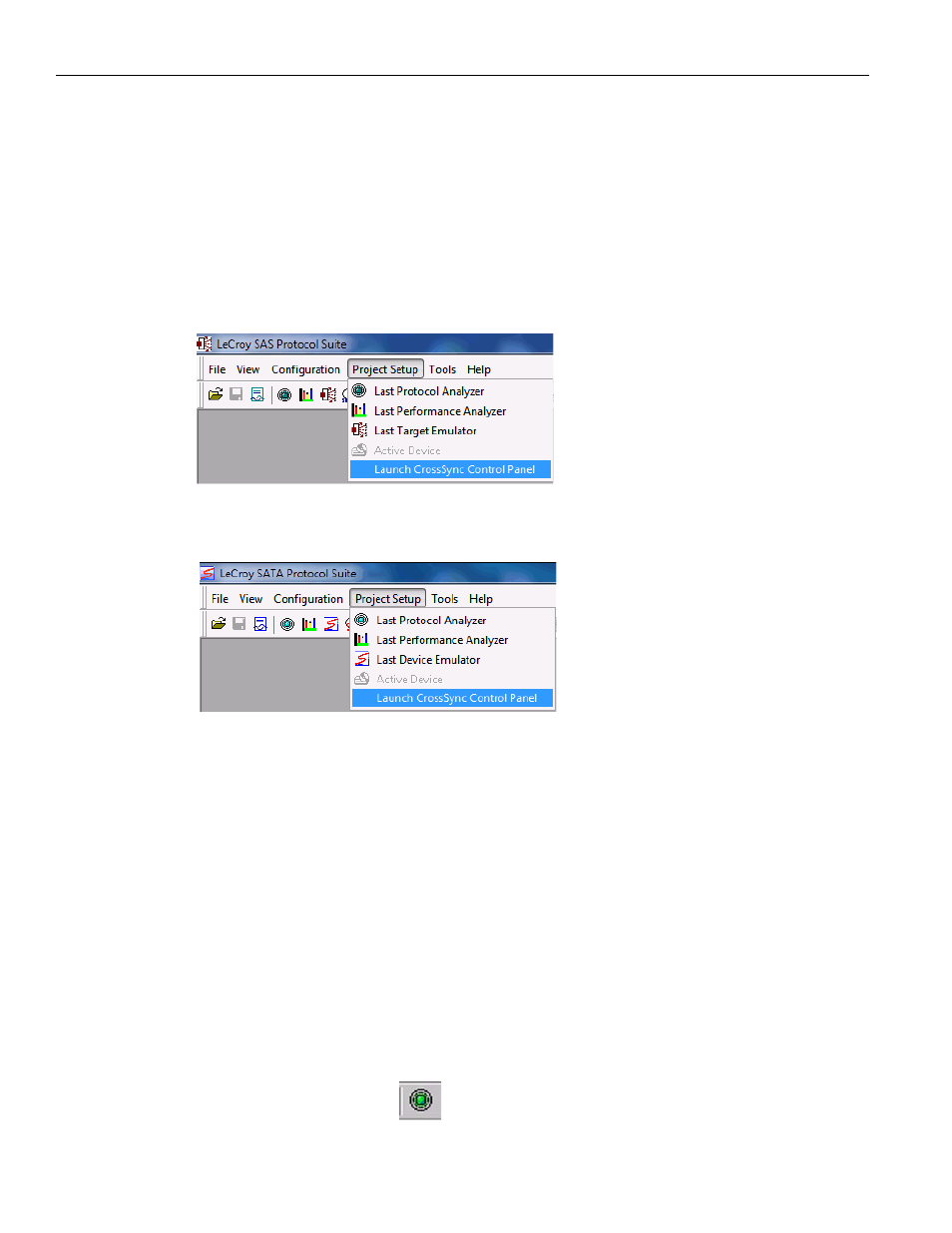

Figure 2.11: Launching CrossSync from the SAS Protocol Suite Application
Figure 2.12: Launching CrossSync from the SATA Protocol Suite Application
Please refer to the CrossSync Control Panel User Manual for more information.
Projects
You can define a new project, starting with the default project definition, or modify the
settings for the last project run.
New Default Project
To start a New project, select File > New on the main menu bar and choose
Protocol Analyzer to open a new project with default settings that you can modify (
See
“Main Window” on page 43. ).
Last Project

Clicking the Green button opens the last project run, so you can modify it.
