8. Click OK to close the Action Properties dialog box.

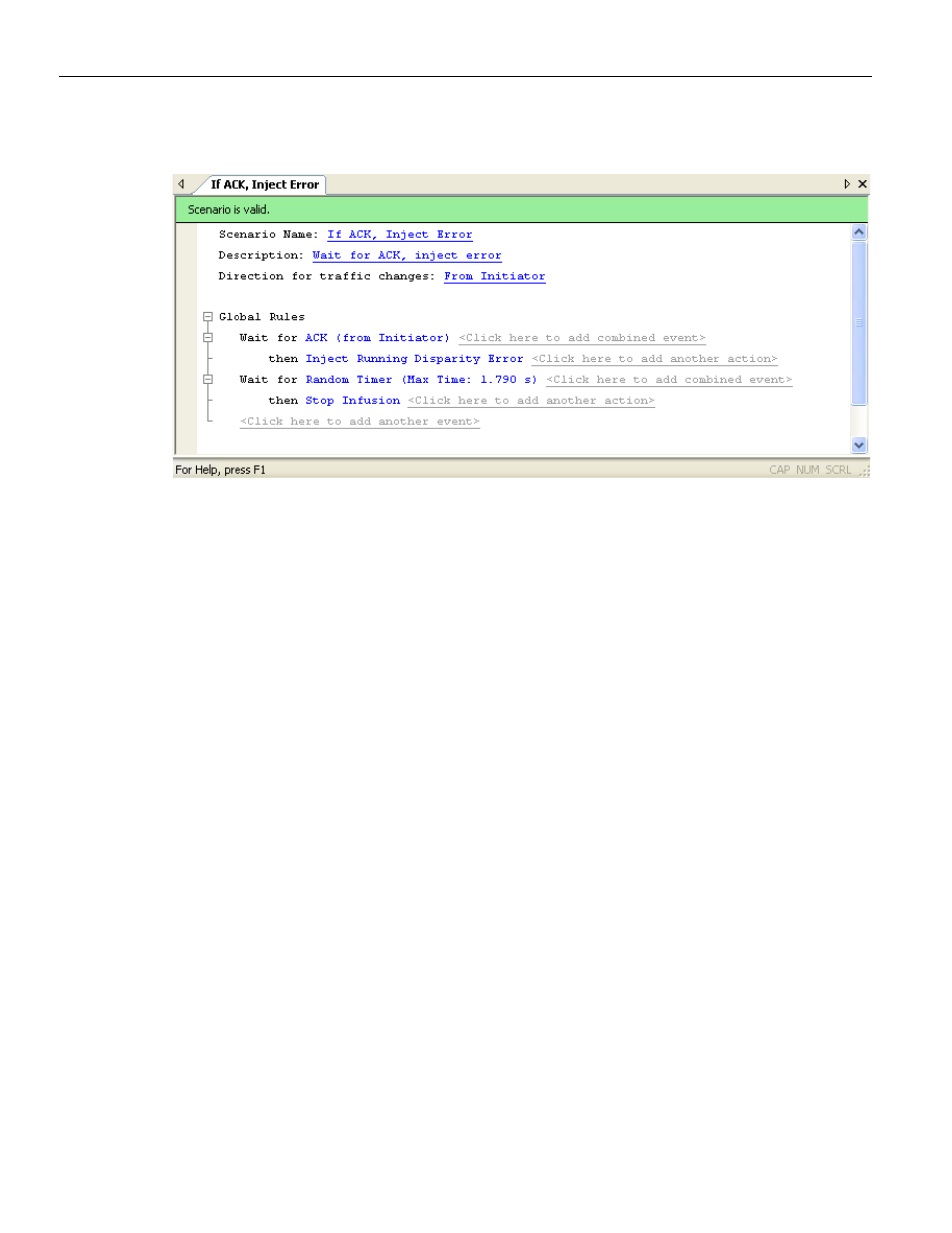

Figure 4.38: Example 6: Complete Scenario
9. In the File menu, select Save Scenario to save the scenario.
Creating a Sequence
This section gives several examples for creating sequences. Recall that a sequence can
have multiple states, but only one state is active at any time. In other words, at any point
in time, a sequence “waits” for one event (or combined event) and responds with the
corresponding action or set of actions when the event occurs.
A sequence is more powerful than Global Rules, because you can create branching or
looping test logic with a sequence.You can include up to two sequences in a scenario, but
each is completely independent of the other. There is no branching or other interaction
between the two, except through the Restart All Sequences action.
You must follow some simple rules when creating sequences:
