Switching Views LeCroy Corporation
Right‐click in the Column View to display commands:
 Software Settings
 Time Stamp Format (LeCroy Format, Milli Second, Micro Second)
 Go to (Trigger Position, X Position, Y Position, Packet Number, Time Stamp, Book‐
mark, Begin, End)
 Bookmark
 Goto within Packet (SOF, EOF, Next HOLD, Previous HOLD, Next HOLDA,
Previous HOLDA, Next Align, Previous Align, Next R_IP, Previous R_IP)
Note: The Column View displays the CRC value. To see different formats (10b, 8b, scrambled, and so
on), select a format by clicking its Tool menu button.
Resize Columns
You can resize the columns in Column View by clicking in the column boundary and
dragging the boundary to a new position.
Rearrange Columns
You can rearrange columns by left‐clicking in the column title and then dragging the drag‐
and‐drop icon to a new position.
Save As Text/Excel
Select File > Save As Text/Excel to open the Save As Text dialog.
For Save As Type, select Text Files or Excel Files.
For Save As Range, select All Packets or enter a cursor range.
Enter a File Name and click Save.
Note: The Save As Excel option is available only for Column View and Spreadsheet View.
Customize Display
You can customize the display as explained below.
Rename Port
You can rename each port for easy identification. To rename a port, right‐click the port ID
in Text View or Column View.

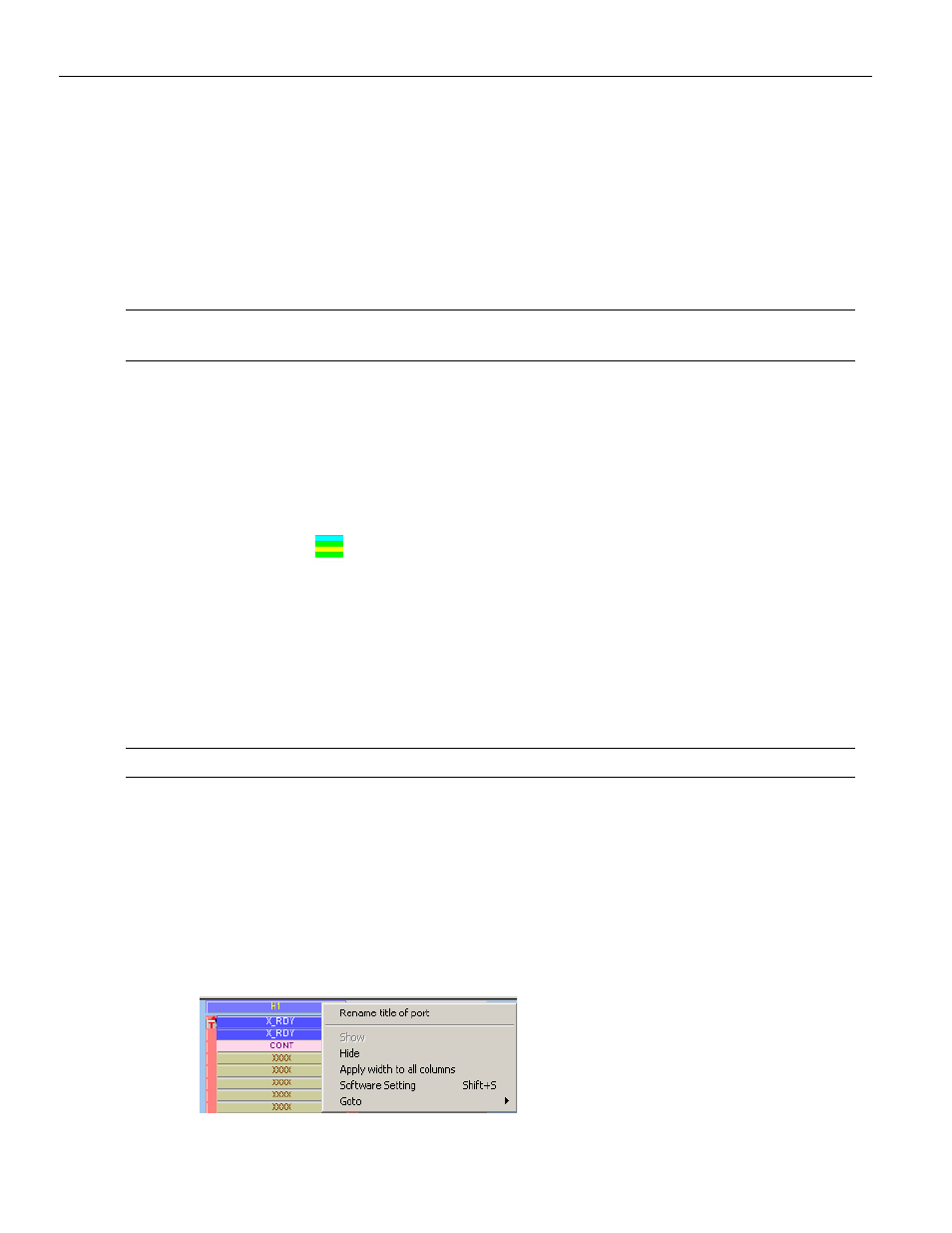

Figure 3.9: Rename Port
