Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

Easy Mode (Pre‐Defined Setups)

LeCroy Corporation

ATA Command

Double‐click ATA Command in the Patterns window of the Trigger dialog to open the ATA
Command dialog.

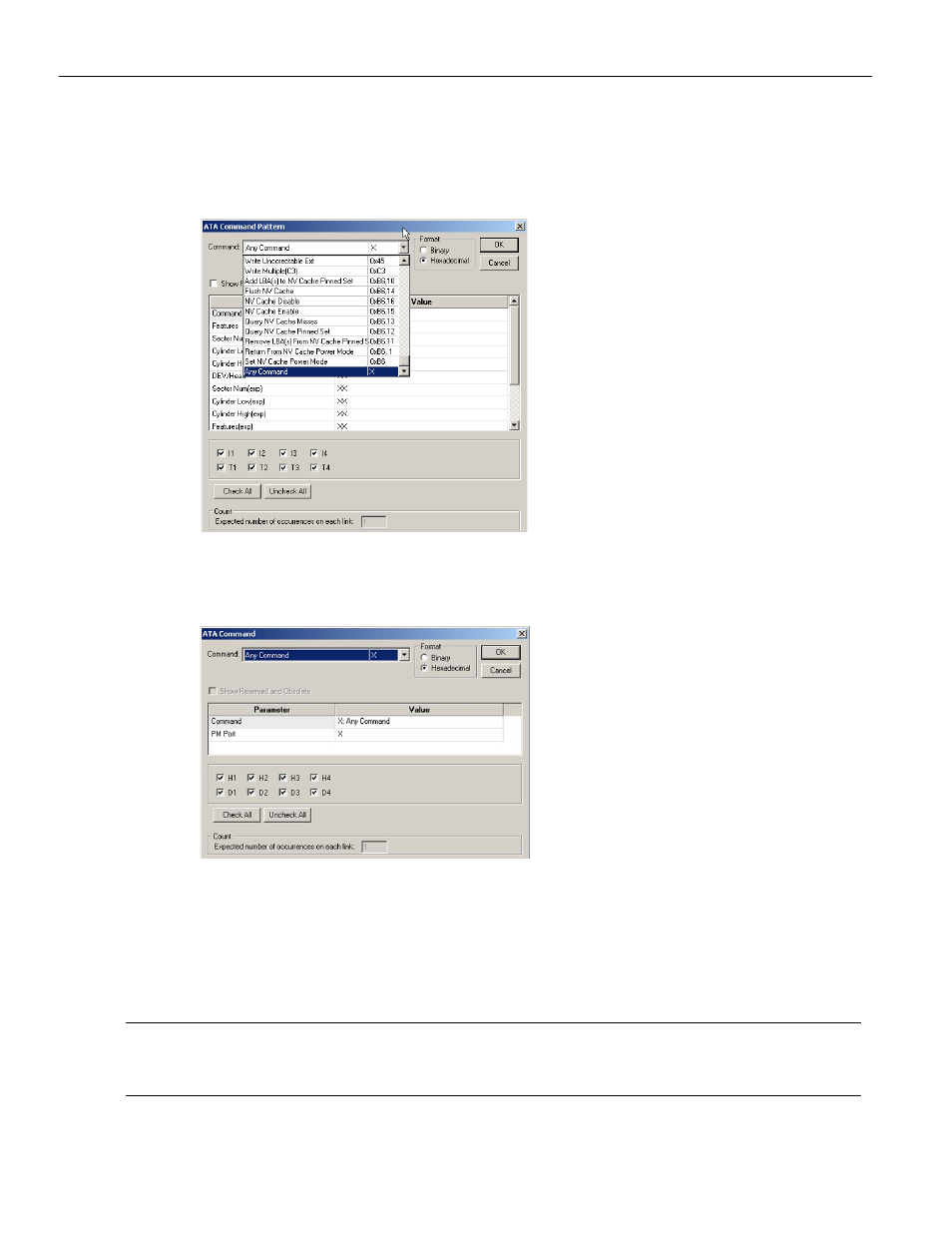

Figure 2.46: SAS: ATA Command Pattern Dialog

SAS vs. SATA: SATA Dialog has different dropdown options.

Figure 2.47: SATA: ATA Command Dialog

Click the down arrow next to the Command dropdown list, scroll the list to choose a
command to trigger on, and click OK.

A powerful triggering choice is Any Command, which causes the analyzer to trigger on
any ATA command.

Note:

The command code and feature set are not the only parameters that describe an

ATA command. For parameters such as LBA and sector count, you must use the ATA Command
Pattern dialog.
