Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 71
Easy Mode (Pre‐Defined Setups) LeCroy Corporation
Snapshot Mode
To trigger immediately on any pattern, check the Don’t care (Snapshot) button.

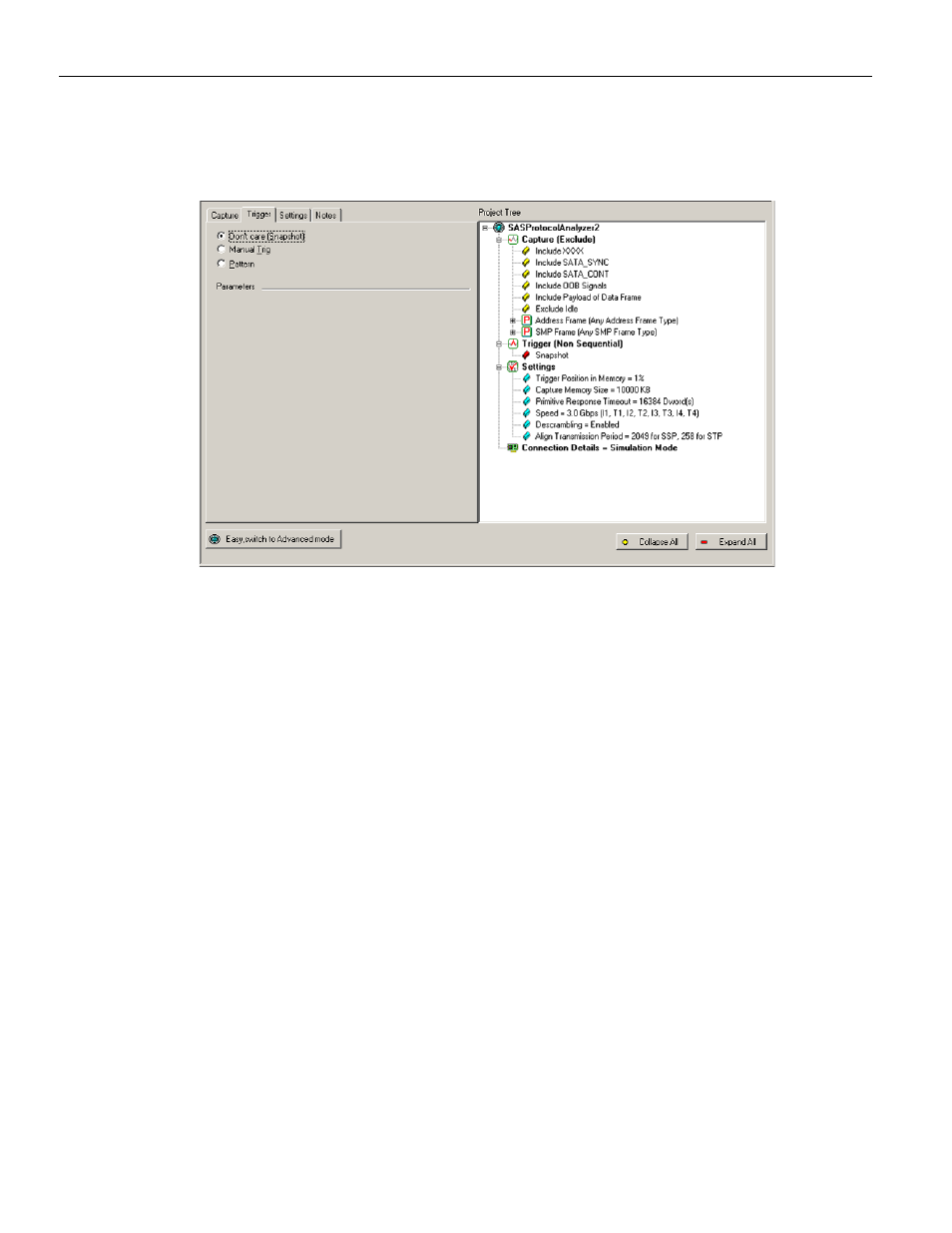

Figure 2.37: Default Trigger Selected
Manual Trigger Mode
In the Manual Trigger mode, the analyzer captures bus traffic continually from when you
use the Manual Trigger until you click the Stop Hardware button (on the analyzer
toolbar), which triggers the analyzer. To perform a manual trigger, check the Manual Trig
button.
Any Trigger Mode
In Any Trigger mode, the Analyzer triggers whenever any of the patterns selected for
triggering occurs (an OR condition). The procedure for selecting trigger parameters is
identical to that for selecting capture parameters. All items selected for triggering appear
in the Project Tree.
To define patterns for triggering, check the Pattern button in the Trigger dialog.
