Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

33

Expandability

LeCroy Corporation

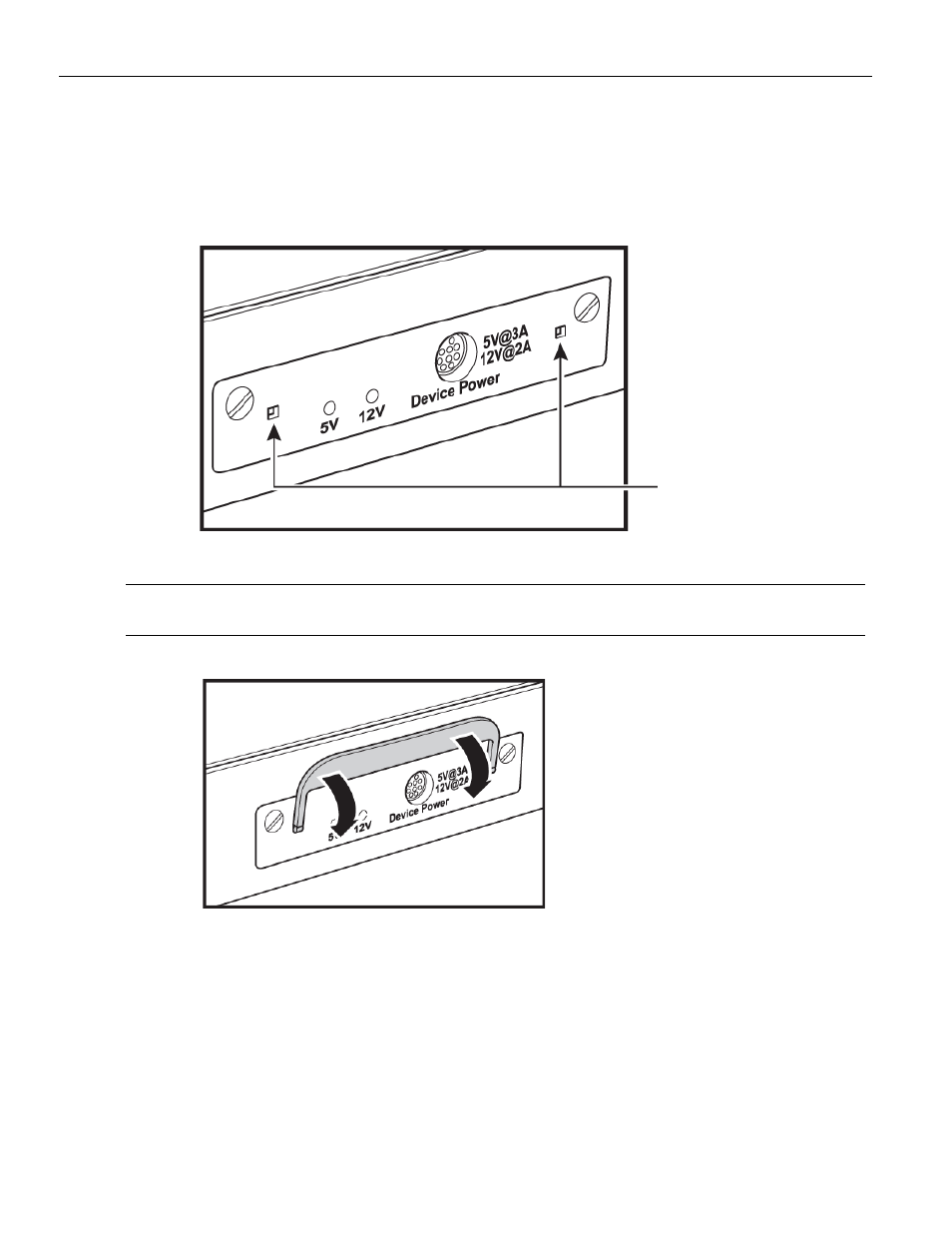

To remove an expansion card, follow these steps:

1. Unplug the system from AC power and turn the system so the expansion port is

facing you. Note the two retaining screws and the holes for the extraction tool that
are located on the panel of the expansion card.

2. Insert the extraction‐tool prongs into the holes in the expansion card panel.

Note:

If the prongs do not slip easily into the holes, use a small nail file or similar device to remove

paint from the prongs.

3. Rotate the extraction tool to a horizontal position to lock the prongs into place and

make a handle.

Holes in the

Expansion Card
