Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 21
Hardware Setup LeCroy Corporation
Hardware Setup
Separate Systems
When using the analyzer, it is recommended to use a system to generate bus traffic and a
second system to run the software, to avoid characterization of analyzer traffic.
Connecting in General
Note:
You must install the software before connecting the analyzer to the host machine for the first
time.
To set up the analyzer:
1. Plug the power adapter into the unit, and then plug the power adapter into a 100V–
240V, 50Hz–60Hz, power outlet. Turn on the Power switch.
At power on, the analyzer will go through initialization as shown on the LCD display.
2. Connect the USB cable between the Sierra M6‐4 USB port and a USB port on the
Host PC. The host PC operating system detects the analyzer and driver files.
3. Connect the analyzer as shown in Figure 1.4.

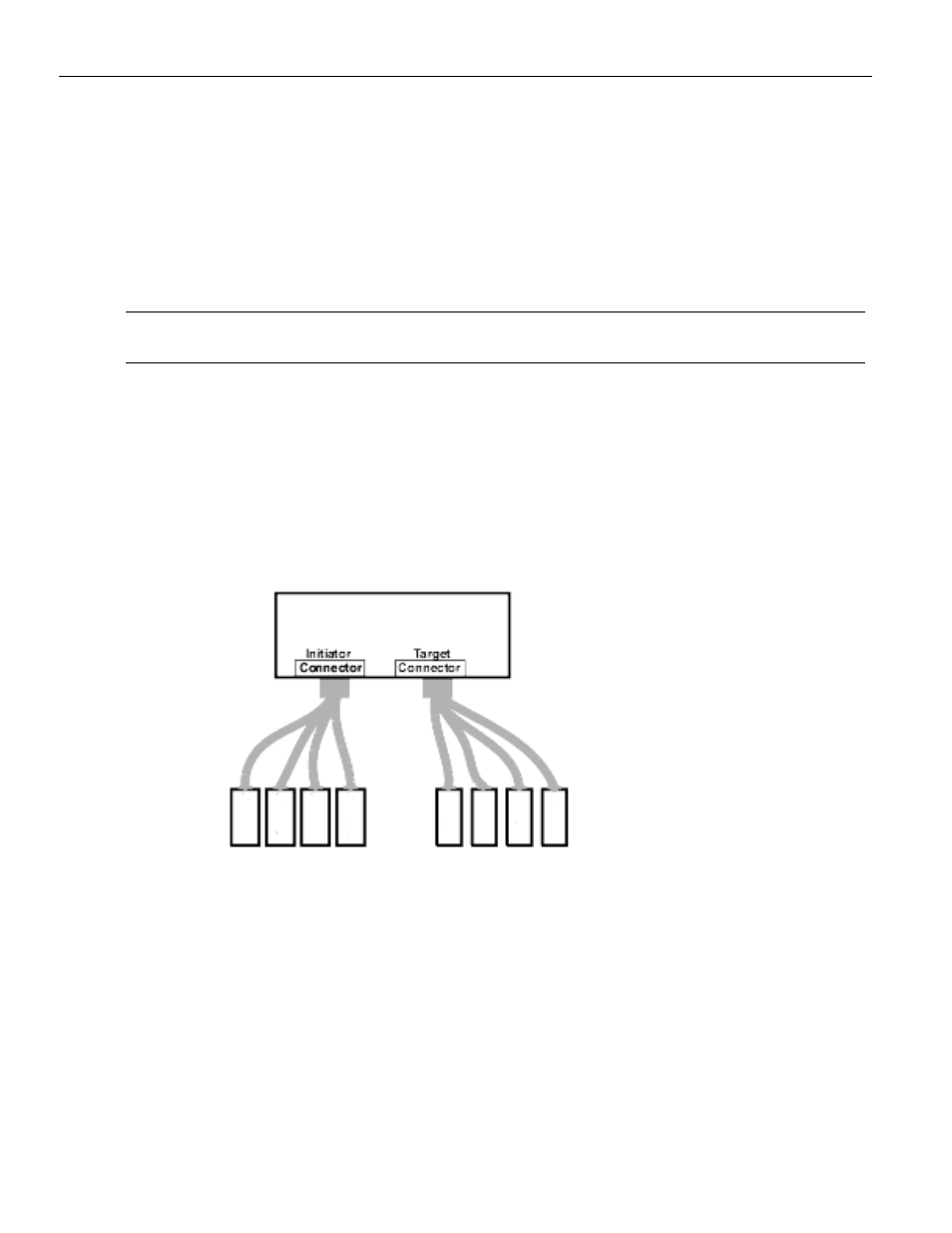

Figure 1.4: Analyzer Connections
Analyzer
HBA Hard Drive
straight crossover
