Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
145
Exercise and Capture
LeCroy Corporation
Speed Negotiation Tab
Use the Speed Negotiation tab to inject errors during speed negotiation
.

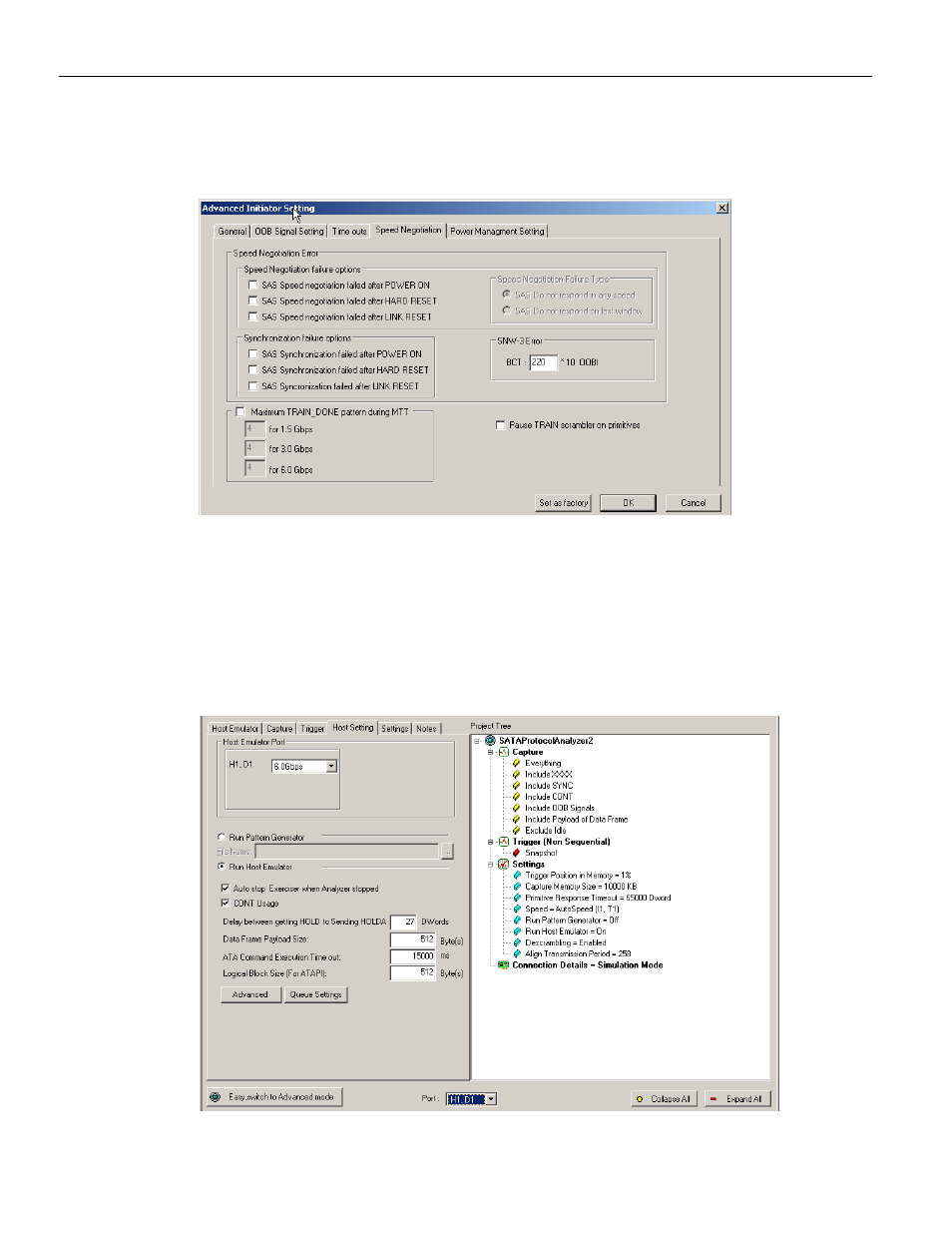

Figure 2.145: Speed Negotiation Tab
Host Setting Tab (SATA)
The Host Emulator Setting dialog allows you to select the Port(s) for exercising, choose to
use the Host Emulator or Pattern generator and specify Host Emulator characteristics.
Click the Host Setting tab:
Figure 2.146: SATA: Host Setting Tab
