Port Configuration for InFusion LeCroy Corporation
Important Information for Jammer and Analyzer
Jammer intercepts and delays traffic on both directions simultaneously, so Host sends to
Jammer, Jammer delays and sends to Host, Device sends to Jammer, Jammer delays and
sends to Device. However, Jammer modifies traffic in one direction only: from Host to
Device, or from Device to Host.
When using Jammer and Analyzer, the Select Port Configuration dialog has options JA as
shown in
Figure 4.8 .

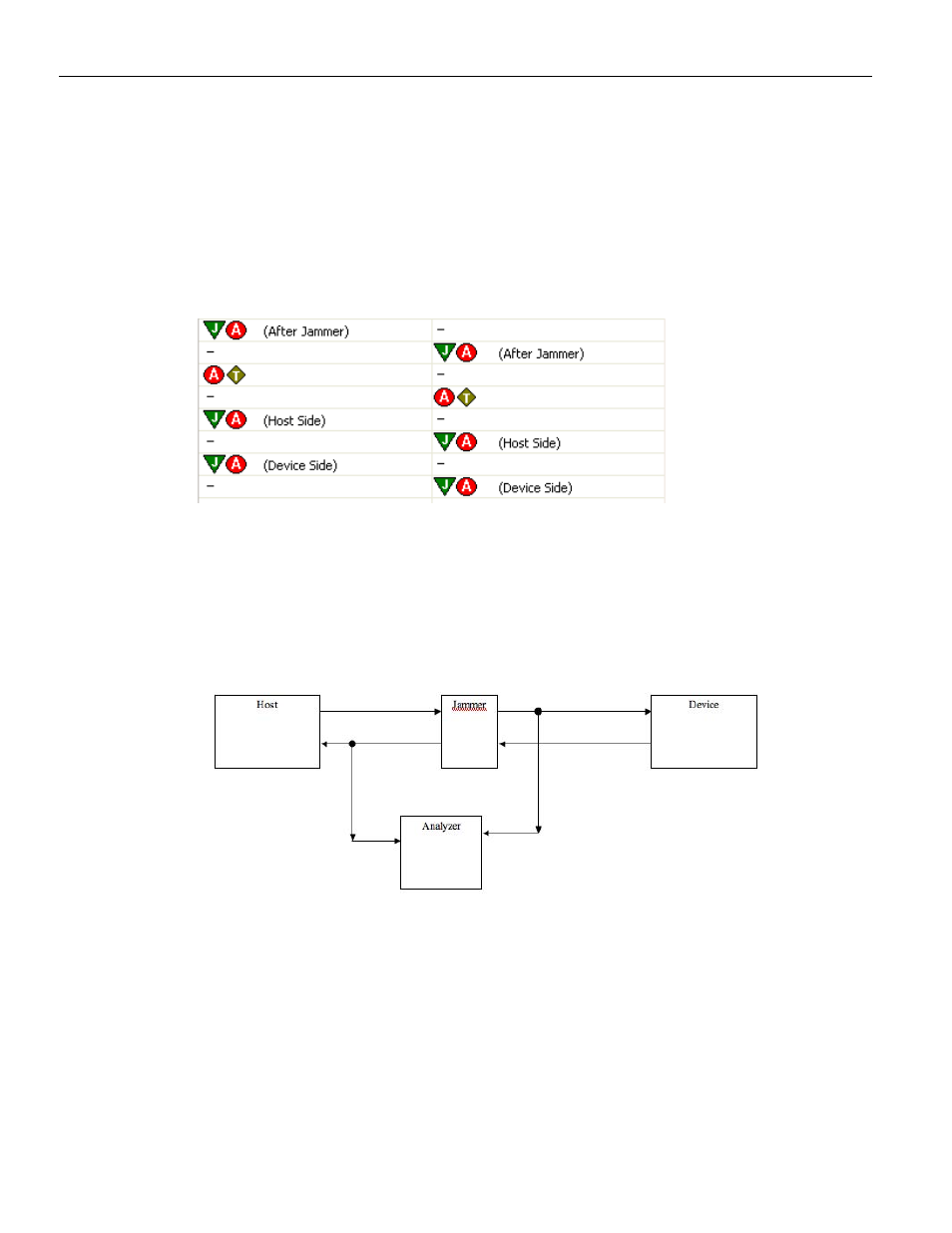

Figure 4.8: Select Port Configuration Options with Jammer and Analyzer
The following figures illustrate the available setup options.
 JA (After Jammer): Analyzer captures Jammer to Host and Jammer to Device.
Analyzer is after Jammer on both paths. See
Figure 4.9 .
Figure 4.9: Jammer and Analyzer with Analyzer after Jammer
