Save Filter Setup
After you have set up a Filter configuration, you can save it as an SAS Filter file (*sfl) or
SATA Filter file (*.tfl) by clicking Save. You can then use it on a different capture by
clicking Load in the Filter dialog.
Filter Logic
After you have set up Filter options, you can set filter logic to And Related Items to apply
“AND” logic on related selected options (for example, SCSI commands and SAS Addresses)
or OR to apply “OR” logic on all selected options.
Multilevel Filtering in SAS
You can set up a filter in a sequential steps by Multi level filtering. In each level, you can
select specific items to “AND” to the previous level. The results of all levels show in views.

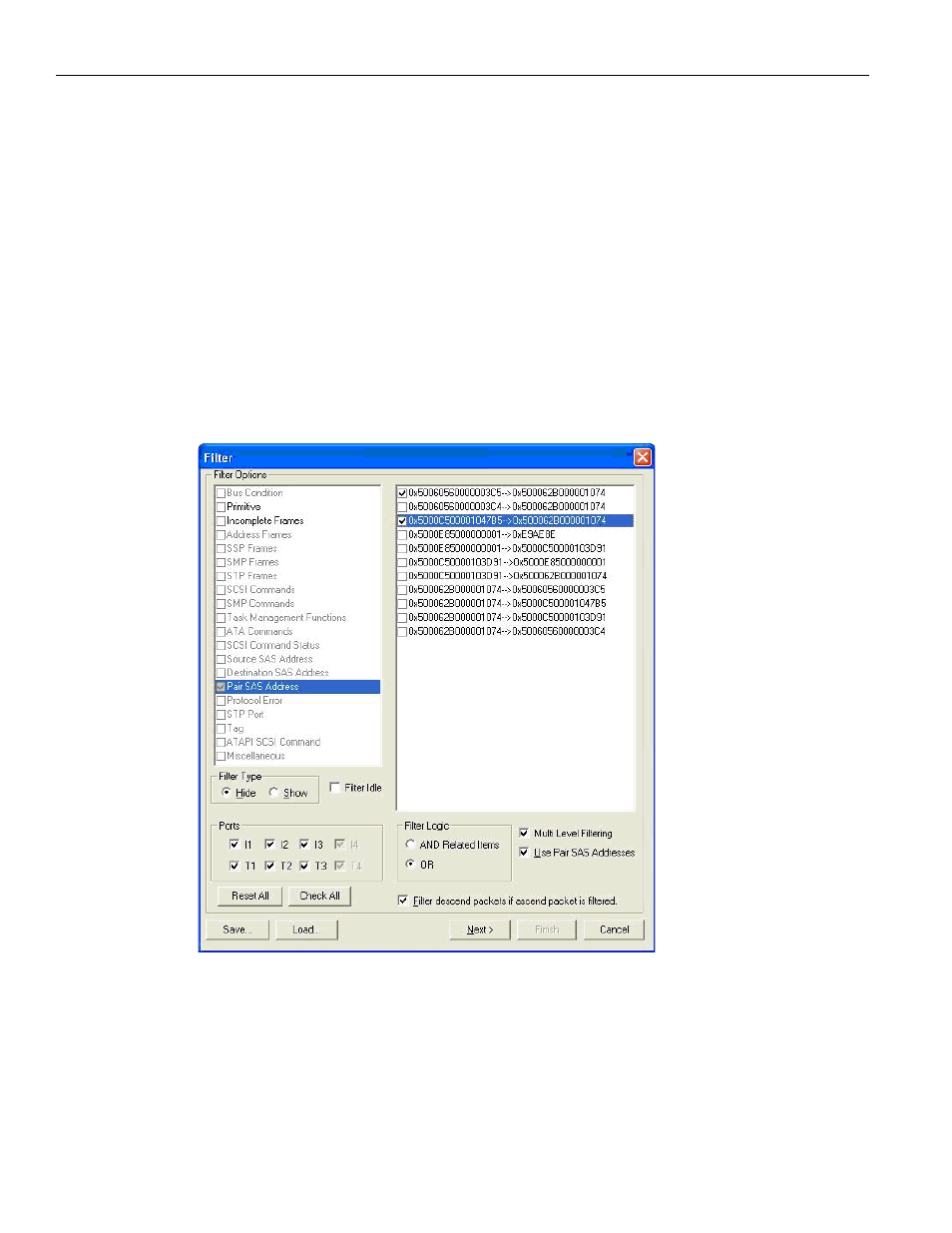

Figure 3.45: First Level of Multilevel Filtering
