LeCroy Corporation Exercise and Capture
152 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Naming a Data Block
Each new data block automatically receives a sequential data block number. To assign a
unique descriptive name to a data block, right‐click the data block name to open the Data
Block Edit menu
.

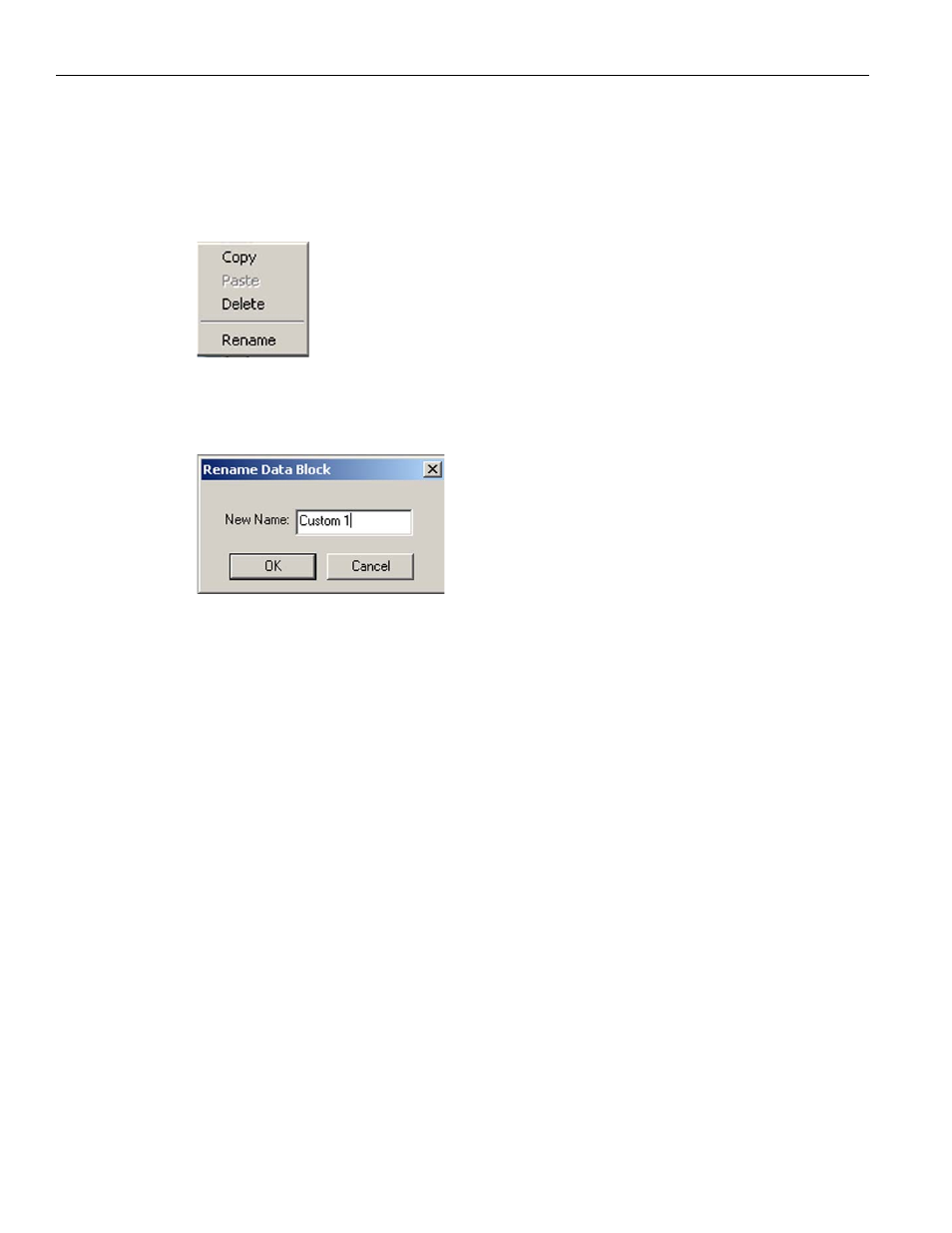

Figure 2.154: Data Block Edit
Choose Rename.
Figure 2.155: Rename Data Block
Enter a descriptive name in the New Name edit box and click OK.
Editing a Data Block
You can enter data in the defined cell structure by these methods:
 Define your own pattern
 Set a counter
 Choose a Random Pattern
 Choose a Walking Bit Pattern
Define Your Own Pattern
To define a pattern:
1. Click Pattern to open the Define Pattern dialog box as shown in Figure 2.156
2. Enter a data pattern in the Data Pattern edit box.
3. Choose the number of times to repeat that pattern, and click OK
.
