LeCroy Corporation Target and Device Emulation
162 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Target and Device Emulation
You can run the analyzer while device emulation is active to monitor bus traffic.
Pages Tab
SAS: To set up SAS Target Emulation, click File > New > Target Emulator to display the
target emulator with the Pages tab selected.

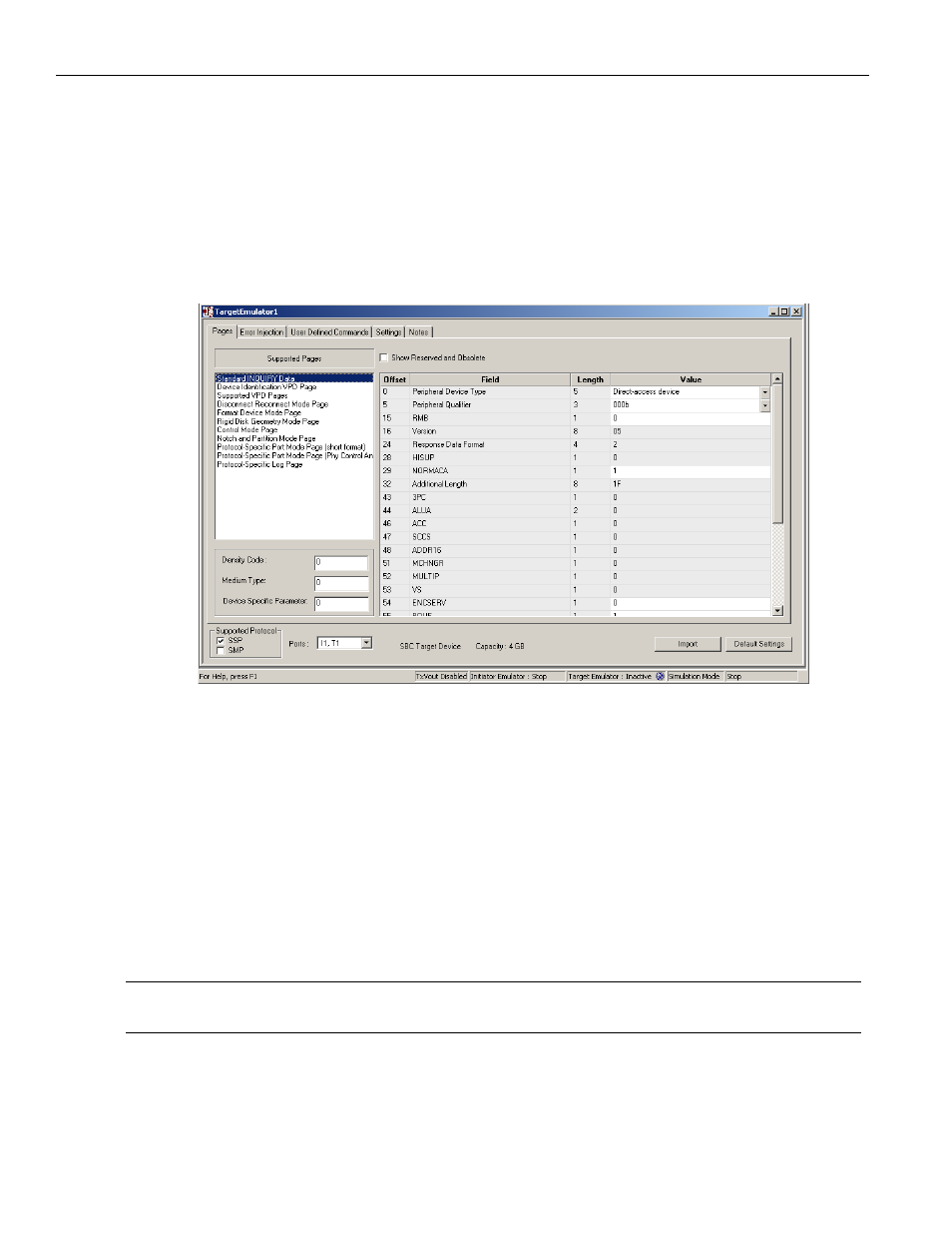

Figure 2.166: SAS: Target Emulation Project Pages Tab
The Target Emulator pages open with default settings for each page. To change settings
for your application:
1. Select a page in the Supported Pages box and set values for each of the enabled
(white) Value fields.
2. Enter values for Density Code, Medium Type, and Device Specific Parameter for the
target emulator.
3. Check SSP or SMP to specify the protocol to support.
4. To reset the pages to the default settings, click the Default Settings button.
5. To use a previously defined Target, click the Import button and choose a previously
defined Device Identifier *.saf file.
Note: Clicking the Import button on any of the Target Emulation dialogs sets all the parameters for the
current emulation, including User‐Defined Commands.
SATA: To set up a Device Emulation, click File > New > Device Emulator. 
The Device Emulation project opens with the Pages tab selected.
