Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

LED/Buzzer Check

To perform a LED or Buzzer check, select the LED/Buzzer tab.

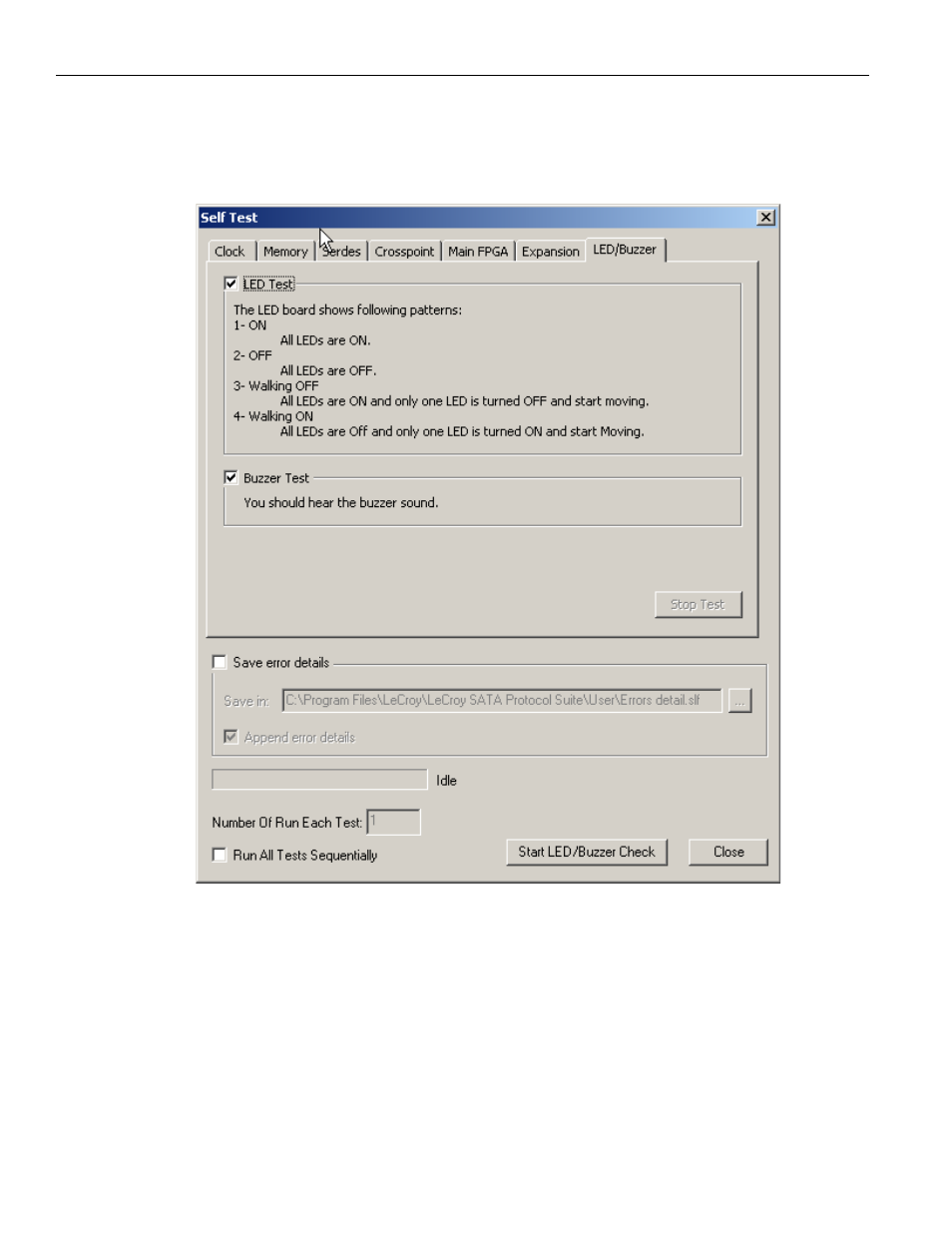

Figure 3.134: Self Test Dialog LED/Buzzer Tab

Check LED Test or Buzzer Test and click the Start LED/Buzzer Check button. For the LED,
you should see the LED pattern. For the buzzer, you should hear it sound. You must click
the Stop Test button to stop the check.
