Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 117
Exercise and Capture LeCroy Corporation
SATA: Click the Insert Frame button and choose the frame type to insert.

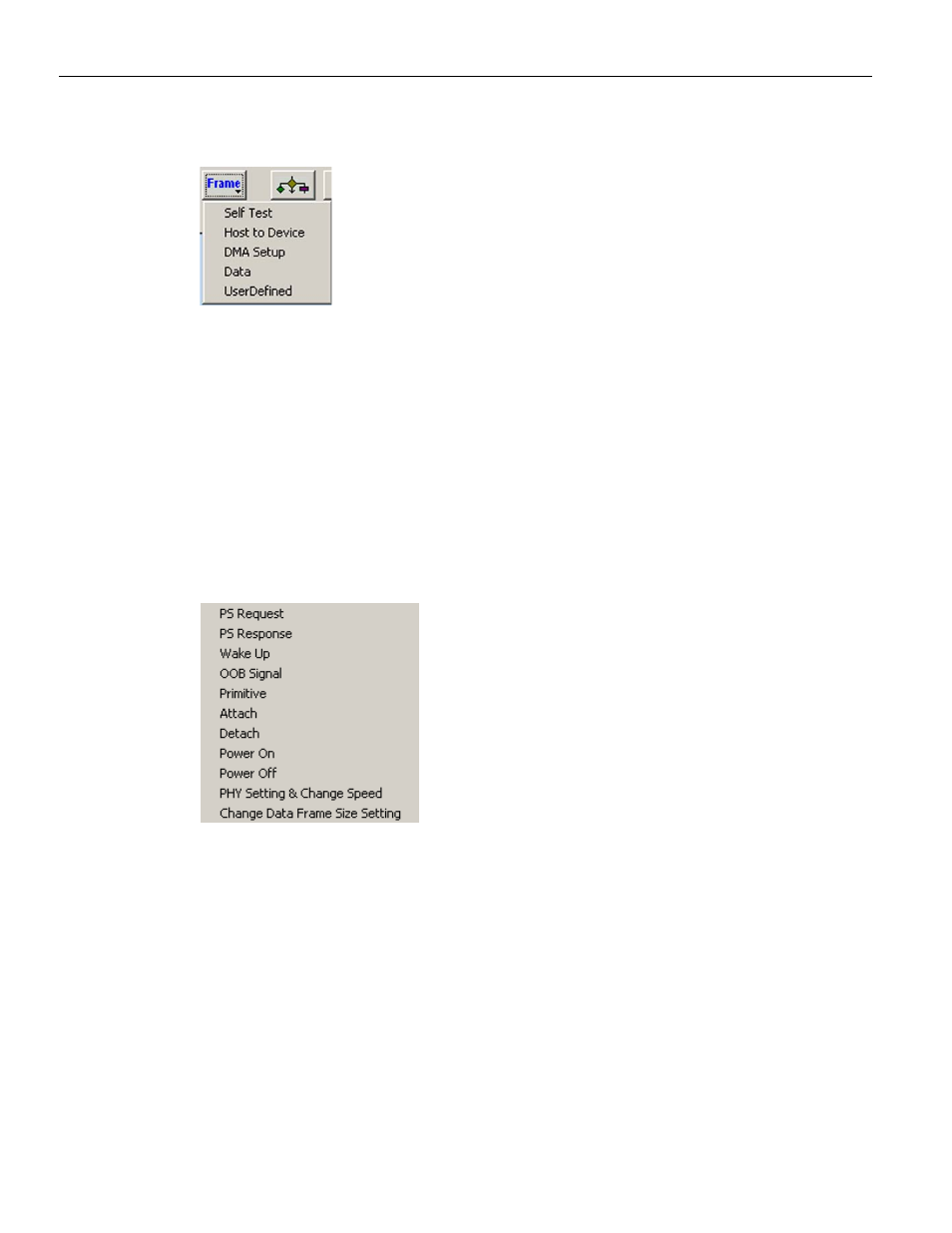

Figure 2.96: SATA: Frame Dropdown List
SATA Insert Frame Commands:
Self Test
Host to Device
DMA Setup
Data
User Defined
Adding an Event
Click the Insert Event button and choose the event to insert.
Figure 2.97: SAS: Event Dropdown List
SAS Event Commands:
PS Request
PS Response
Wake Up
OOB Signal
Primitive
Attach
Detach
Power On
Power Off
PHY Setting & Change Speed
Change Data Frame Size Setting
