LeCroy Corporation Exercise and Capture
110 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Project Settings
Prior to running the Advanced mode project, click the Settings tab. The options in the
Settings dialog are the same as for the Easy Mode, described starting on
page 92 .
SAS vs. SATA: For the ALIGN Transmission Period section, SATA Dialog shows options 256
and 258, and does not show 2048 or 2049.
For Speed, SATA Dialog shows H1, D1 to H4, D4 and does not show I1, T1 to I4, T4.
SATA Dialog does not show MUX Setting button.
Notes
To include some descriptive information about the project, click the Notes tab and enter
a brief descriptive note. (
See “Add a Project Note” on page 101. )
Exercise and Capture
SAS: To perform a capture with SAS Initiator Emulator generated bus traffic, click 
File > New > Protocol Analyzer (Initiator Emulator).
SATA: To perform a capture with SATA Host Emulator generated bus traffic, click 
File > New > Protocol Analyzer (Host Emulator).
Program the Initiator Emulator or Host Emulator, then set up a capture, as described in
“Protocol Analysis” on page 43 .
Programming the Initiator or Host Emulator
SAS: Click the Initiator Emulator tab to program the Initiator or Emulator.

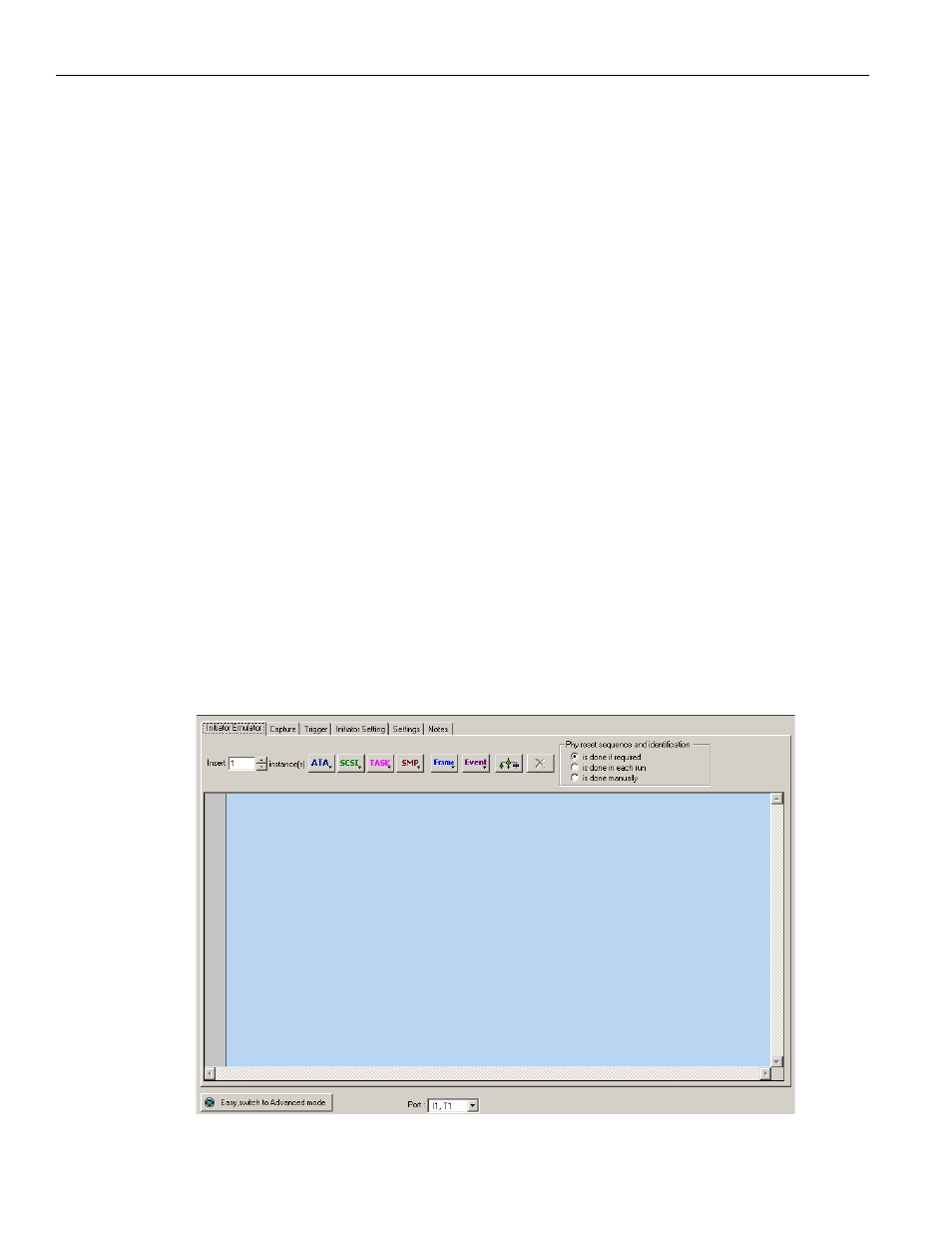

Figure 2.86: SAS: Initiator Emulator Program Dialog
