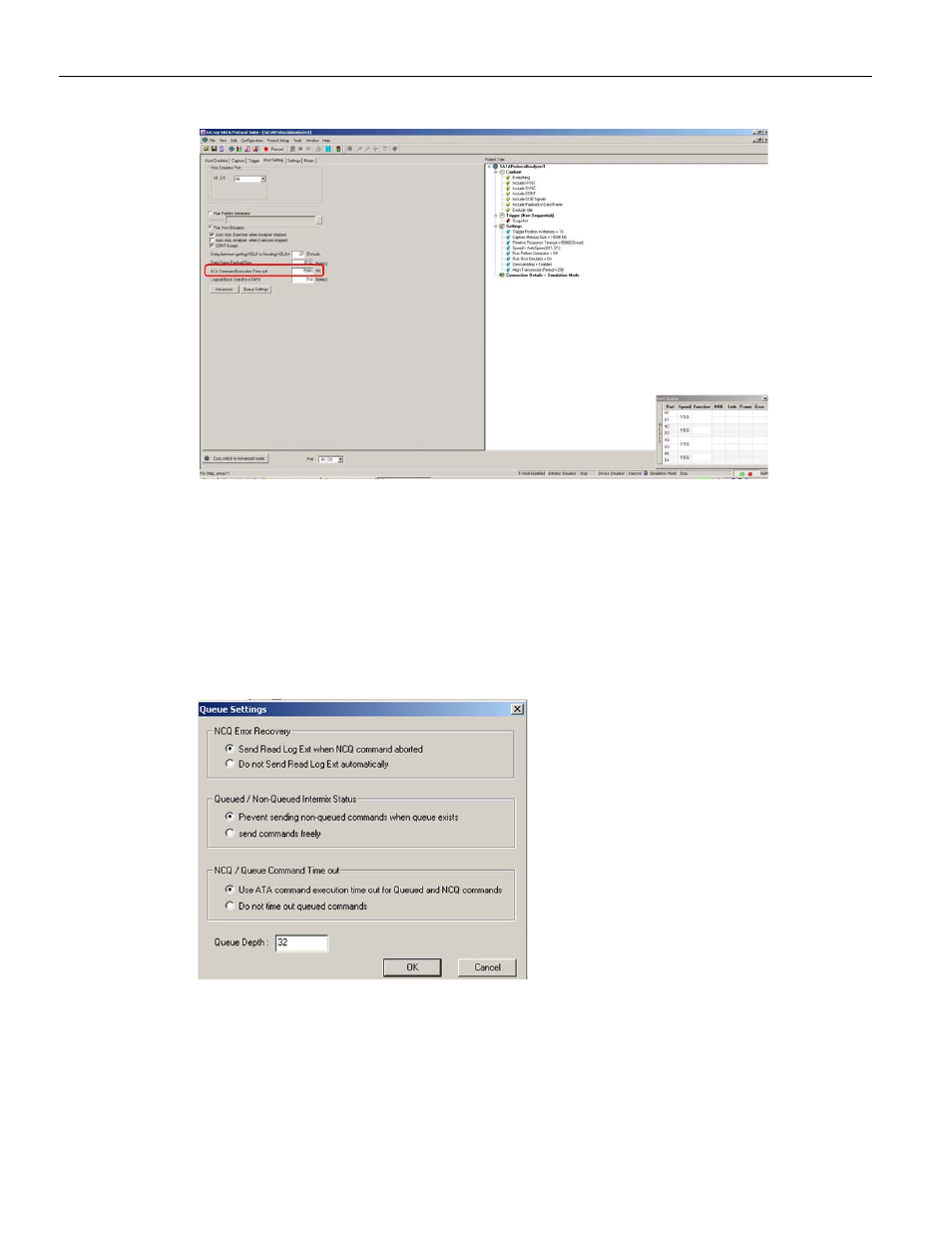

Figure 2.147: ATA Command Execution Timeout
Queue Settings
Click the Queue Settings button to display the Queue Settings dialog and specify:
 Queue Depth
 NCQ Error Recovery
 Queued/Non‐Queued Items Status
 NCQ/Queue Command Timeout
Figure 2.148: SATA: Queue Settings Dialog
Advanced Host Setting Dialog
Click the Advanced button to display all settable options.
