LeCroy Corporation Target and Device Emulation
178 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Note: If you choose Send Signature twice, first with BSY=1 and DRDY=0 and second with BSY=0 and
DRDY=1, the system enables the Hardware initialization delay text box, allowing you to set the
hardware initialization delay.
SATA Signature Errors
You can define errors to introduce when sending a SATA Signature. To define the errors,
click the Error Setting button to open the SATA Signature Error Setting dialog.

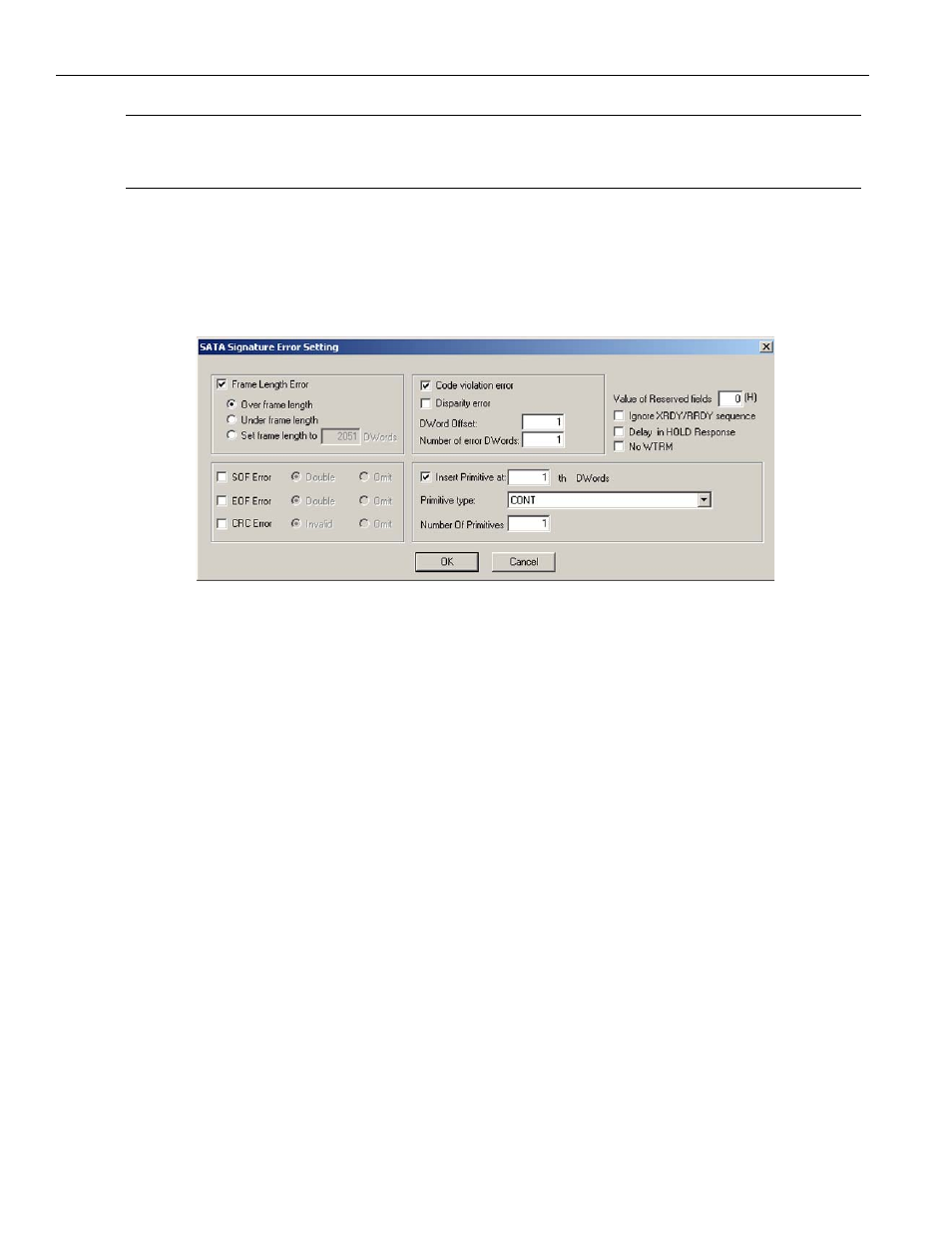

Figure 2.184: SATA: SATA Signature Error Setting
Frame Length Error
Choose the Frame Length Error type to introduce.
SOF, EOF and CRC Errors
Check any or all and check the criteria for introduction.
Code Violation and Disparity errors
Check and specify DWORD offset and Number of DWORD errors for Disparity error.
Additional Settings
Set and check:
 Value for Reserved fields
 Ignore XRDY/RRDY Sequence
 Delay in HOLD Response
 No WTRM
Insert Primitive
Check Insert Primitive, click the down arrow on the Primitive list box, choose a primitive
type and enter a value for the Number of Primitive.
