Sierra Trainer Menus

372

Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual

Generate Menu

Start Generation: Causes the Generator to begin generation.

Stop Generation: Causes the Generator to stop generation.

Resume Generation: Causes the Generator to resume generation after a stop.

Connect Link: Automatically bring the linkup to the Host, Device, Initiator, or Target
connected to the Generator.

Disconnect Link: Disconnect link.

Connect Parameters: Set the “Identify” frame parameter settings to keep the link
connected. See

Generation Options: Setup the Generation Rules. See

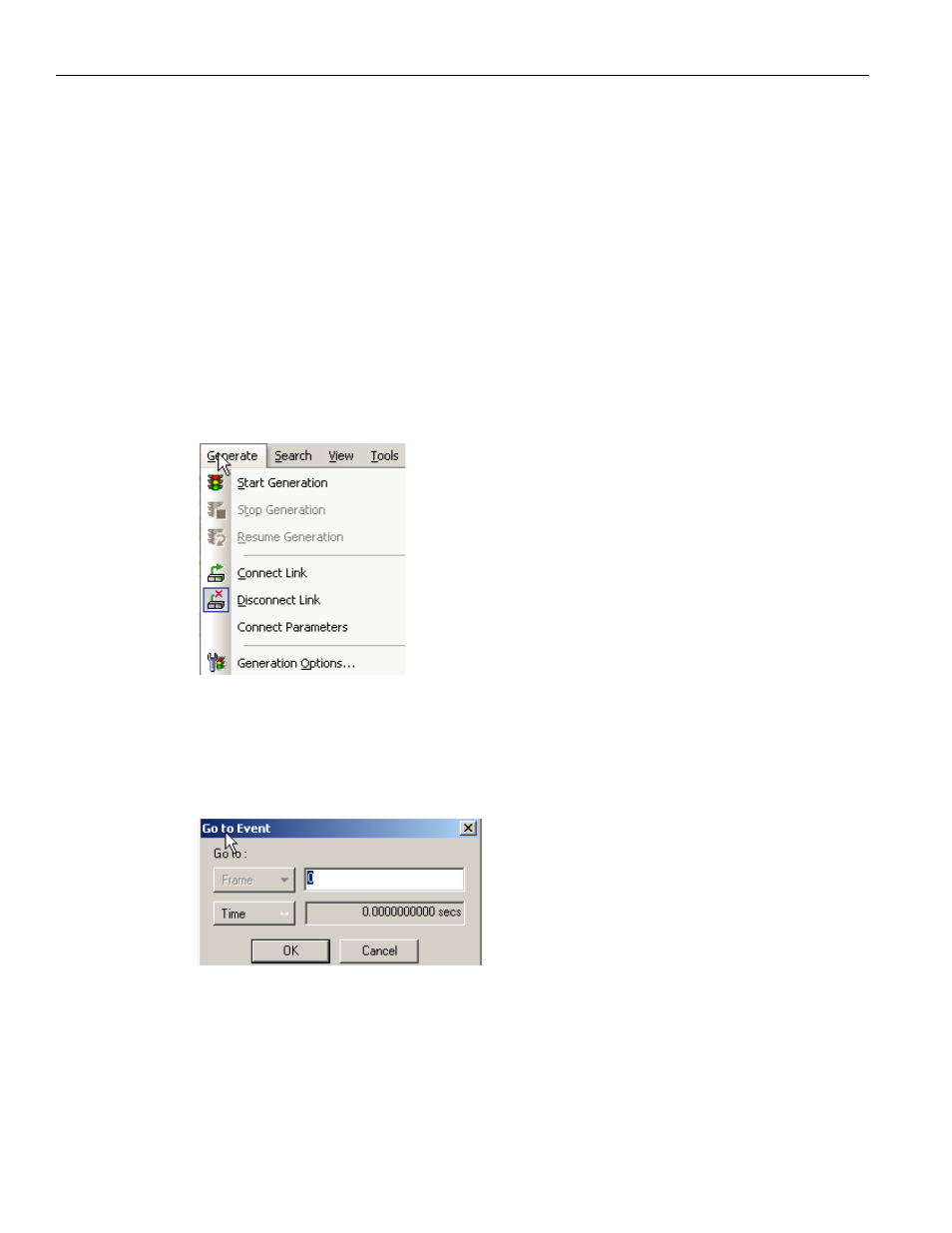

Figure 5.4: Trainer Generate Menu

Search Menu

Go to Event: Opens a dialog that allows you to go to a frame and time.

Figure 5.5: Go to Event Dialog

Go to Marker: Positions the display to the selected marked packet.

Go to: Packet Types, SSP Frames, SMP Frames, Primitives, Errors, Data Lengths, Speed,

SATA FIS Type, SATA FIS Port, or Hash Address (Source or Destination).

Find: Displays the Find dialog. See

Find Next: Applies the previous Find parameters to the next search.
