Update Sierra Device
The Update Sierra Device command allows you to update a Sierra M6‐4 Analyzer or CATC‐
Sync expansion card whose current version is incorrect.
1. Click Configuration > Update Sierra Device to display the Device Setup dialog.

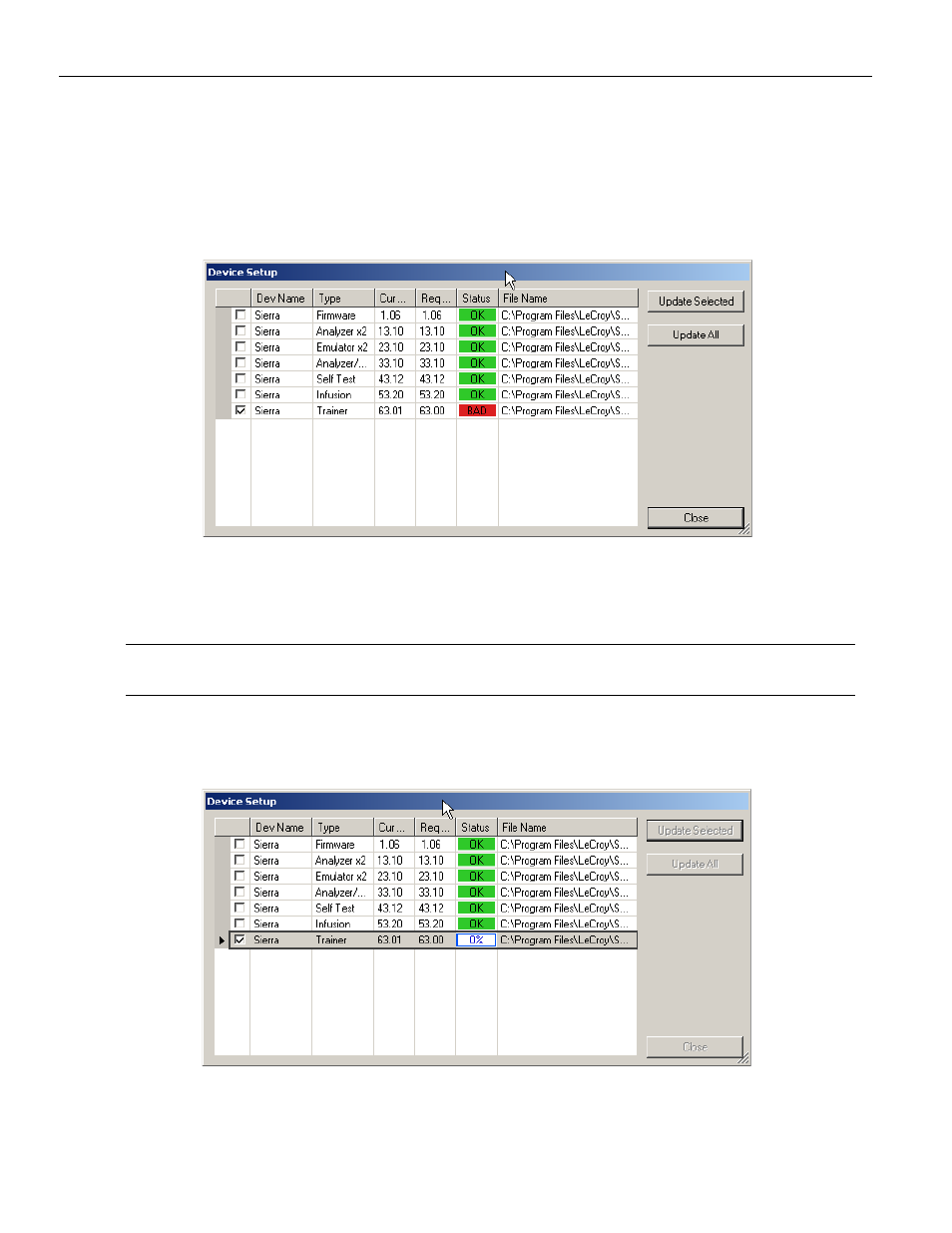

Figure 3.80: Device Setup Dialog with BAD Device Status
Devices whose version is correct have an OK status. 
A device whose version is incorrect has a BAD status.
Note: You can click the ellipses (...) at the end of a file path and name to display an Open dialog, in
which you can browse for files.
2. Click the checkbox to the left of a device with BAD status, then click Update Selected
to begin the process that will make the Analyzer version correct.
Figure 3.81: Device Setup Dialog Beginning to Update Status of a Device
