Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 25
Expandability LeCroy Corporation
Note: Unit 1 must be the unit that has the first out connection
.

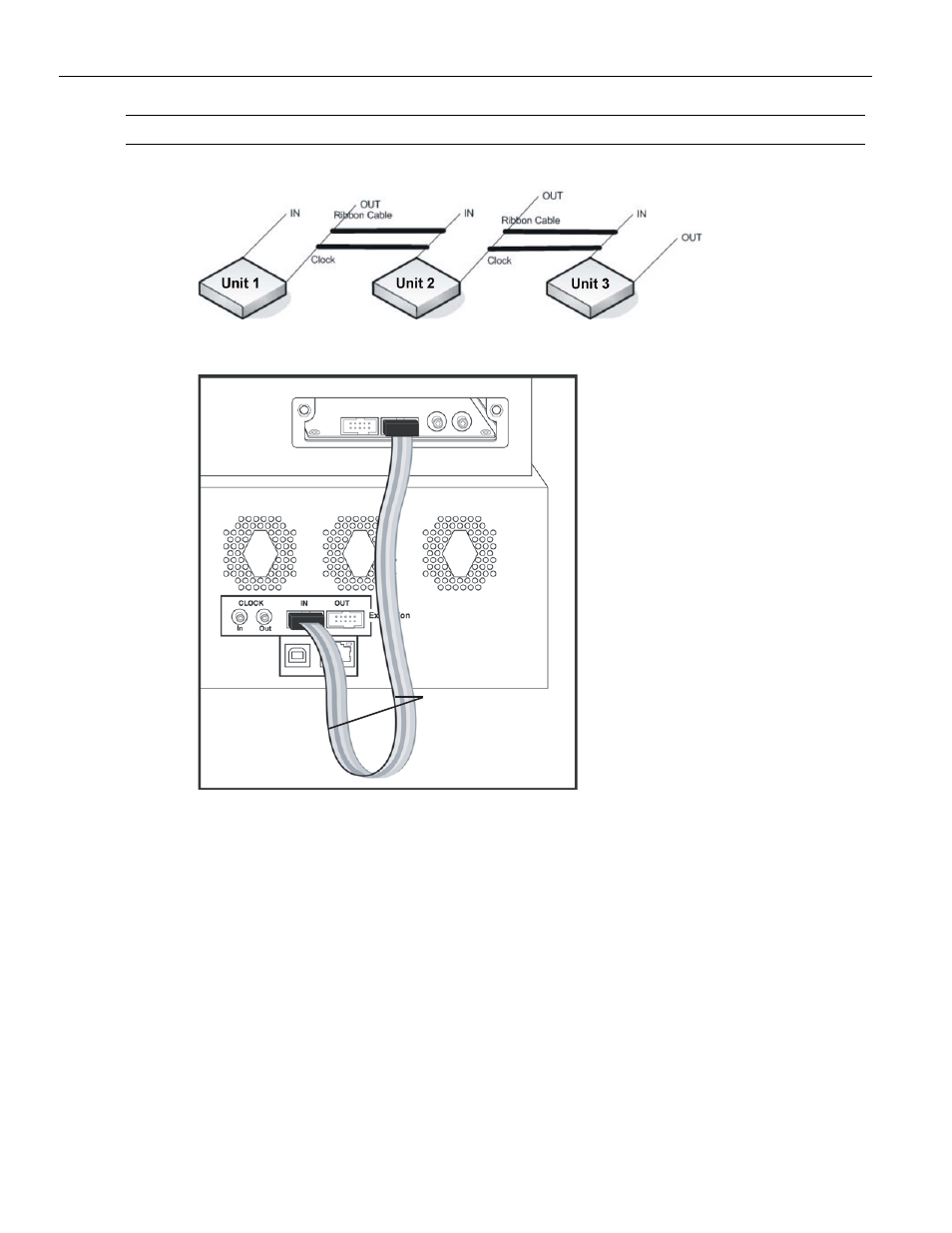

Figure 1.8: Cascading
Figure 1.9: Cascading Correctly
Correct way to connect:
The black color pin of the
ribbon wire is connected
the same way between
2 connectors.
Cascading works correctly
in this case.
Black color pin
of ribbon wire
