LeCroy Corporation Target and Device Emulation
184 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Device Emulator Settings (SATA only)
Click the Settings tab to display the Device Emulator Settings dialog.
The Settings tab opens with a default set of values, which you can modify. To return to
these values, click the Default Settings button.

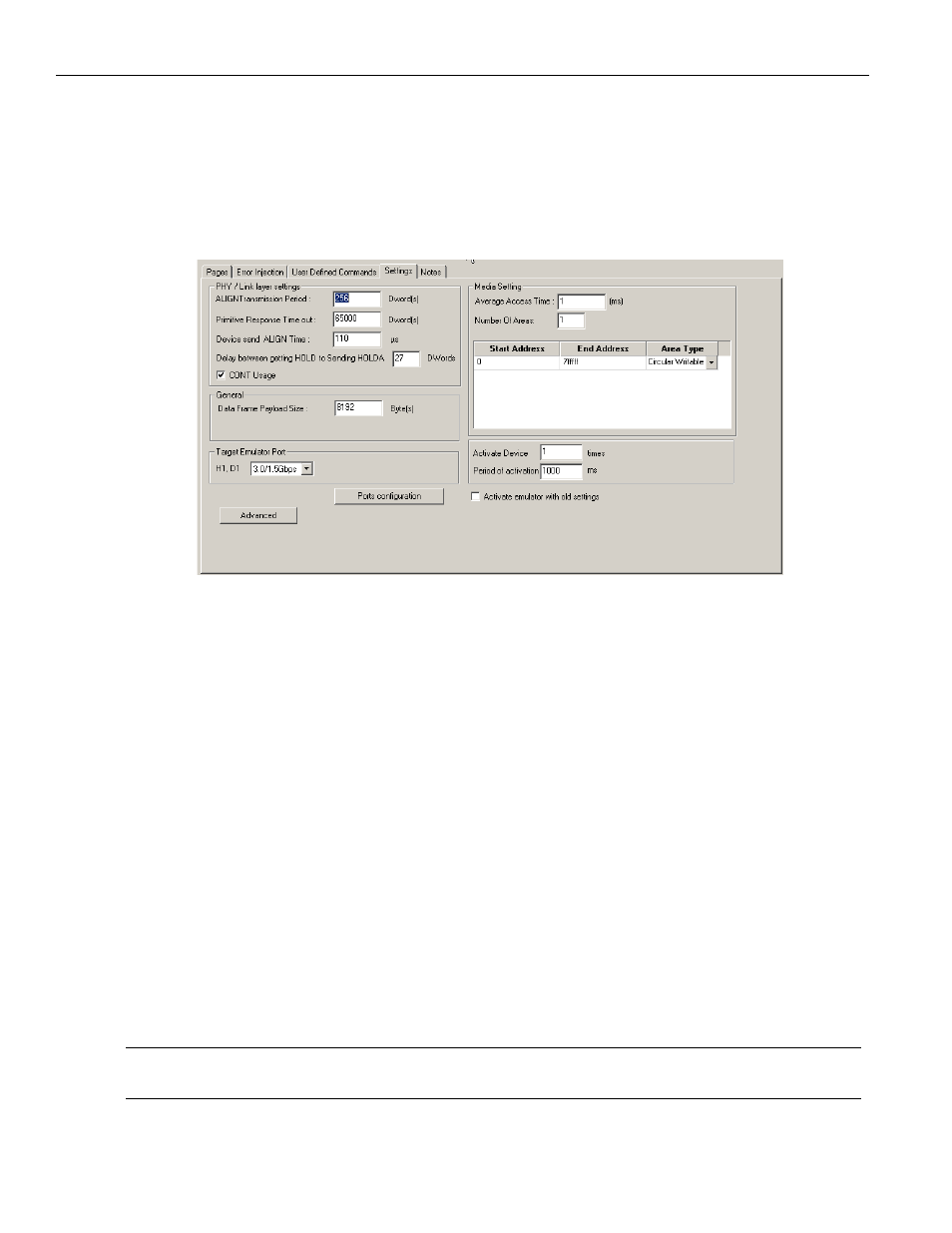

Figure 2.190: SATA: Device Emulator Settings
PHY/Link layer settings
Enter values for Align Transmission Period, Primitive Response Timeout, and Standby
Timeout, Device send Align Time and Delay between getting HOLD to Sending HOLDA
and specify a delay. Check CONT usage.
Media Settings
Enter a value for Average Access time to simulate Seek/Access time delay of a real
device.
Enter a Number of Areas. Define a Start and an End Address, click the down arrow under
the Area Type and choose Normal Writable, Circular Writable, or Non Writable.
Payload Size
Enter a value for Data Frame Payload Size in the General area.
Choose Target Emulator Port
Click a port option button and click the down arrow next to the Speed list box and choose
a port speed. Use the Speed Negotiation Setting button to open the dialog (see
“Speed
Negotiation Tab” on page 145 ).
Note: If you have made some changes to a defined emulation and want to return to the original
definition, check the Activate the emulator with old settings.
