Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 277
Statistical Report LeCroy Corporation
FIS Report (SATA)
To display the FIS Report, click the FIS tab. The FIS Report displays information in the
following columns:
 FIS Type: All, Custom, Data, PIO Setup, Register Host To Device,
Register Device To Host
 PM Port
 Direction: All, H‐>D, D‐>H, or Custom
 Duration: All, Custom, or time unit (accumulative)
 Count: All, Custom, or a number of occurrences
 %: of total count

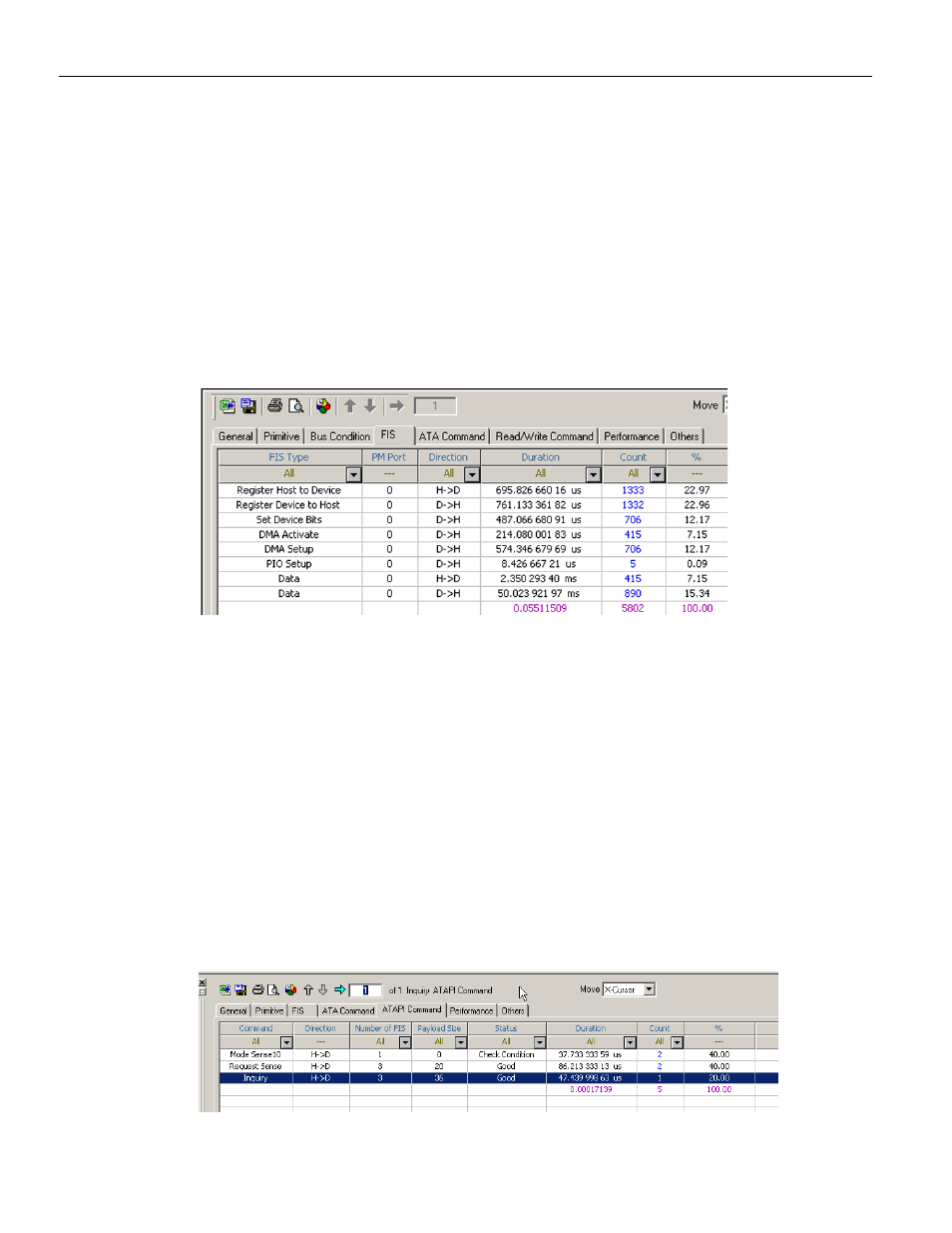

Figure 3.112: SATA: FIS Report
Queue Command Report (SATA)
To display the Queue Command Report, click the Queue Command tab. The
Queue Command Report displays information in the following columns:
 Command: All, Custom, Read DMA Queued
 PM Port
 Status: All, Custom, Normal Output
 Payload Size: All, Custom, or a number of DWORDs
 Direction: All, H‐>D, D‐>H, or Custom
 Duration: All, Custom, or time unit (accumulative)
 Count: All, Custom, or a number of occurrences
 %: of total count
Figure 3.113: SATA: Queue Command Report
