Switching Views LeCroy Corporation
Changing the Default View
Perforn the following steps to change the default view of all trace files to Packet View:
1. Open a trace file.
2. Select the Packet View. Close all other views.
3. Select File > Save Workspace to open a Save As dialog. Save the current workspace
as a .wss file.
4. Select Configuration > Software Settings to open the Software Settings dialog.
5. In the Default Workspace field, enter the path and name of the workspace .wss file
that you saved in step 3.
Because the default workspace contains only Packet View, the software opens trace files
in Packet View.
CATC Navigation View
To change the trace display to a CATC Trace™, click the CATC Navigation button. You
can change the colors, fonts, and so on, in the Sample Viewer Configuration (see “Sample
Viewer Configuration” on page 240 ).
Text View
Text View displays the captured data interpreted as transaction frames, grouped in
columns by port.
To display Text View, select View > Text View or click the button on the View
Type toolbar.

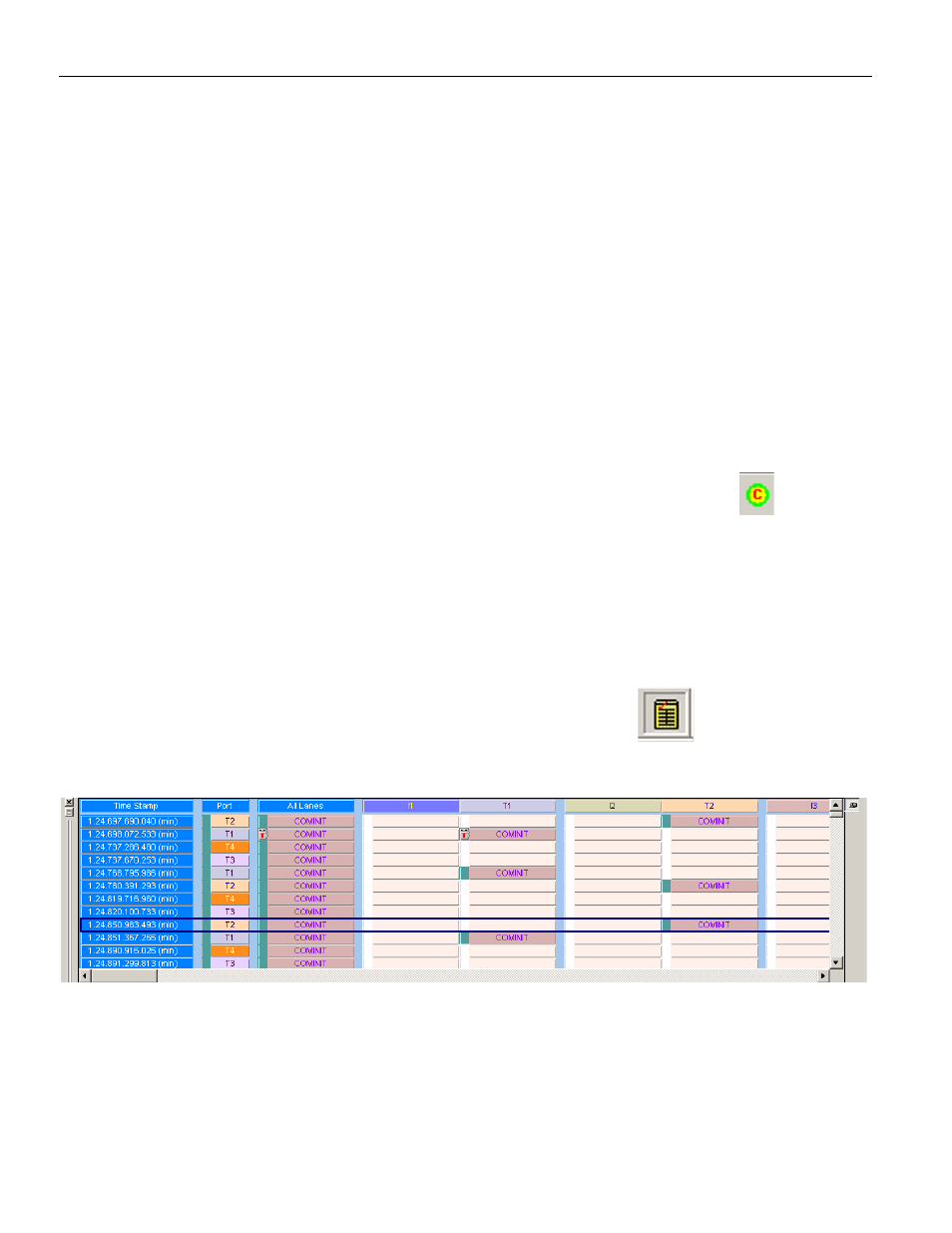

Figure 3.5: SAS: Text View
