Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual 259
Display Configuration LeCroy Corporation
USB IP Setup
If you are connected to a device using USB, you can use IP_SETUP to change the IP
settings:
 DHCP automatically assigns an IP address. DHCP is the default.
 Static IP prompts you to enter a specific IP address.
To change from DHCP to Static IP while connected to a device using USB:

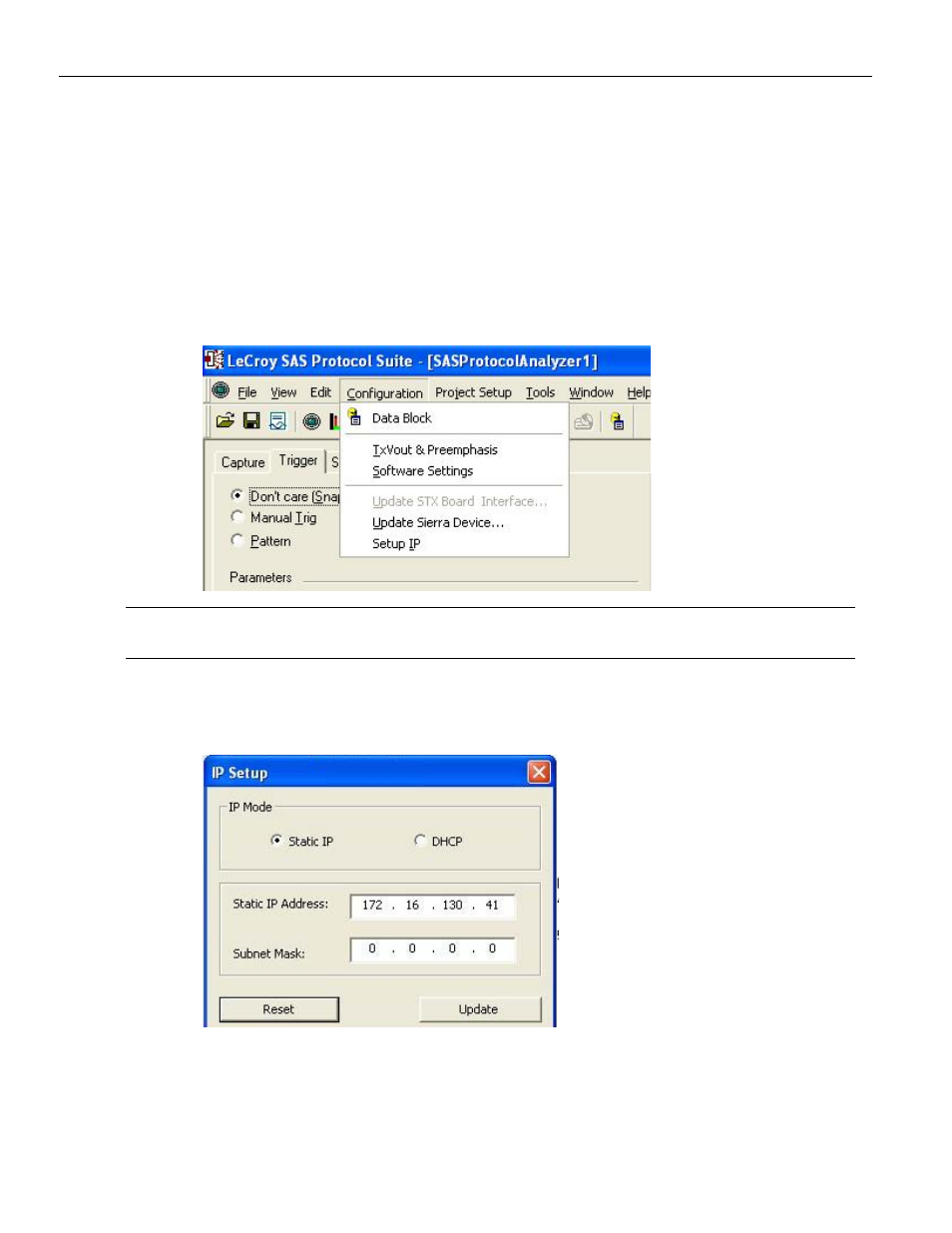

1. Select Configuration > Setup IP from the menu bar.
Note: If you are not connected to the device using USB, the Configuration menu does not have the
Setup IP command.
The IP Setup dialog appears. For IP Mode, two radio buttons are available: 
Static IP and DHCP. DHCP is the default.
Figure 3.84: IP Setup Dialog
To change to Static IP, click the Static IP radio button.
Enter the Static IP Address.
