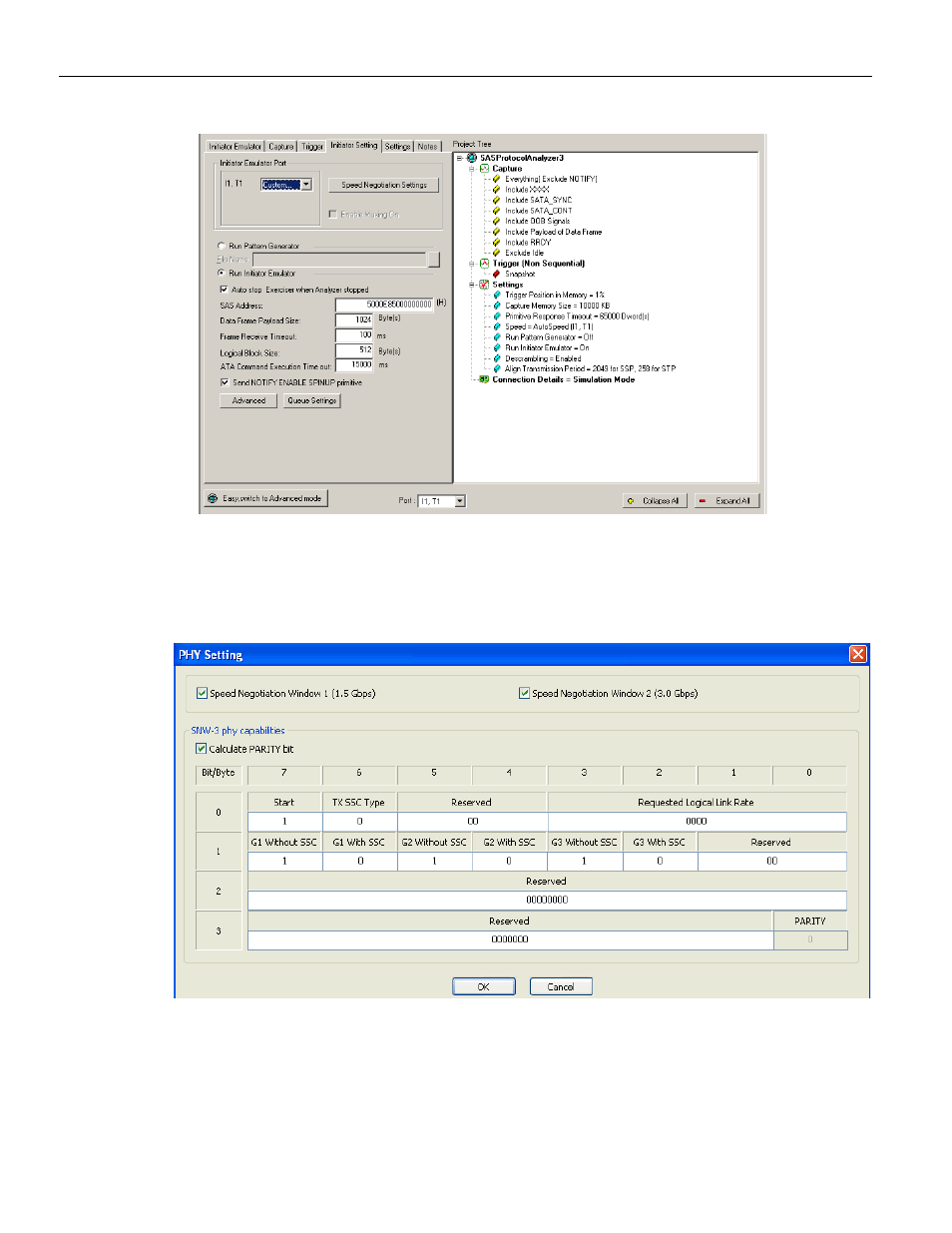

Figure 2.139: SAS: Initiator Setting Tab
Choose Initiator Emulator Port
For each port, select a speed, then click the Speed Negotiation Setting button.
Figure 2.140: SAS: PHY Setting Dialog
Select the port speed settings (see “PHY Setting Dialog” on page 119 ).
After you click OK, you can Enable Muxing On.
