LeCroy Corporation
Port Configuration for InFusion
314
Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Port Configuration for InFusion
The InFusion (Jammer) port configurations must match the Analyzer port configurations
for the infusion‐analyzer to work.
Select Configuration > Port Configuration to display the Set Port Configuration dialog.
To record traffic both before and after the InFusion modifies (jams) it, select
Analyzer/Jammer/Analyzer on the port that you want to jam. In the following figure,
there is a match on Port3.

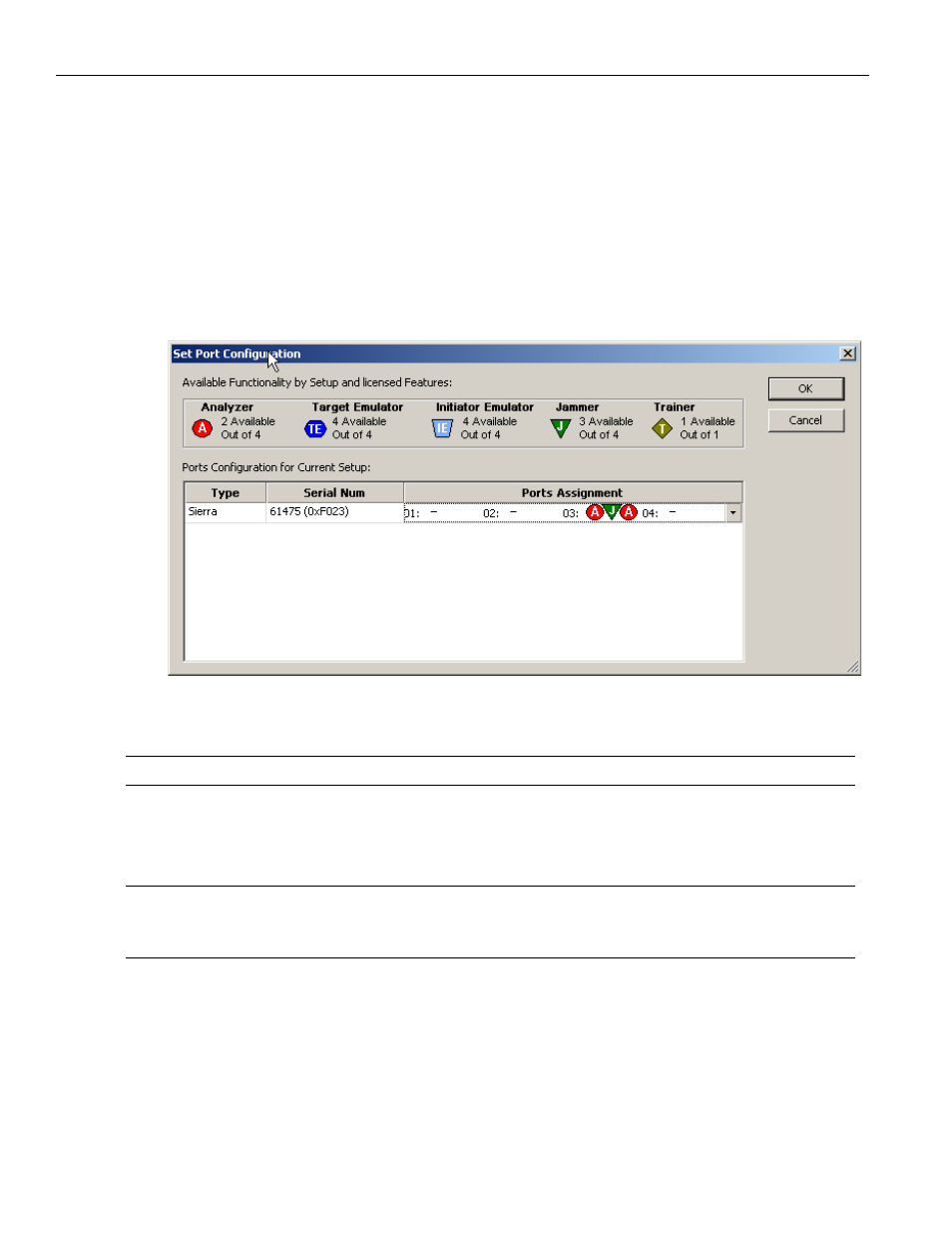

Figure 4.7: Ports Configuration Dialog with InFusion/Analyzer Port Match
Note:
You can select only one Jammer port at a time with this configuration.
To record traffic from two ports after the InFusion modifies (jams) them, select a
combination of ports that have Jammer/Analyzer specified under them. The different
configurations accommodate different possible user setups and requirements.
Note:
To display the current Port Configuration, click Show Analyzer to go to the analyzer application,
then click the green button in the lower right corner to display the Port Status window (see
).
