LeCroy Corporation Easy Mode (Pre‐Defined Setups)
70 Sierra M6‐4 SAS/SATA Protocol Analyzer User Manual
Data

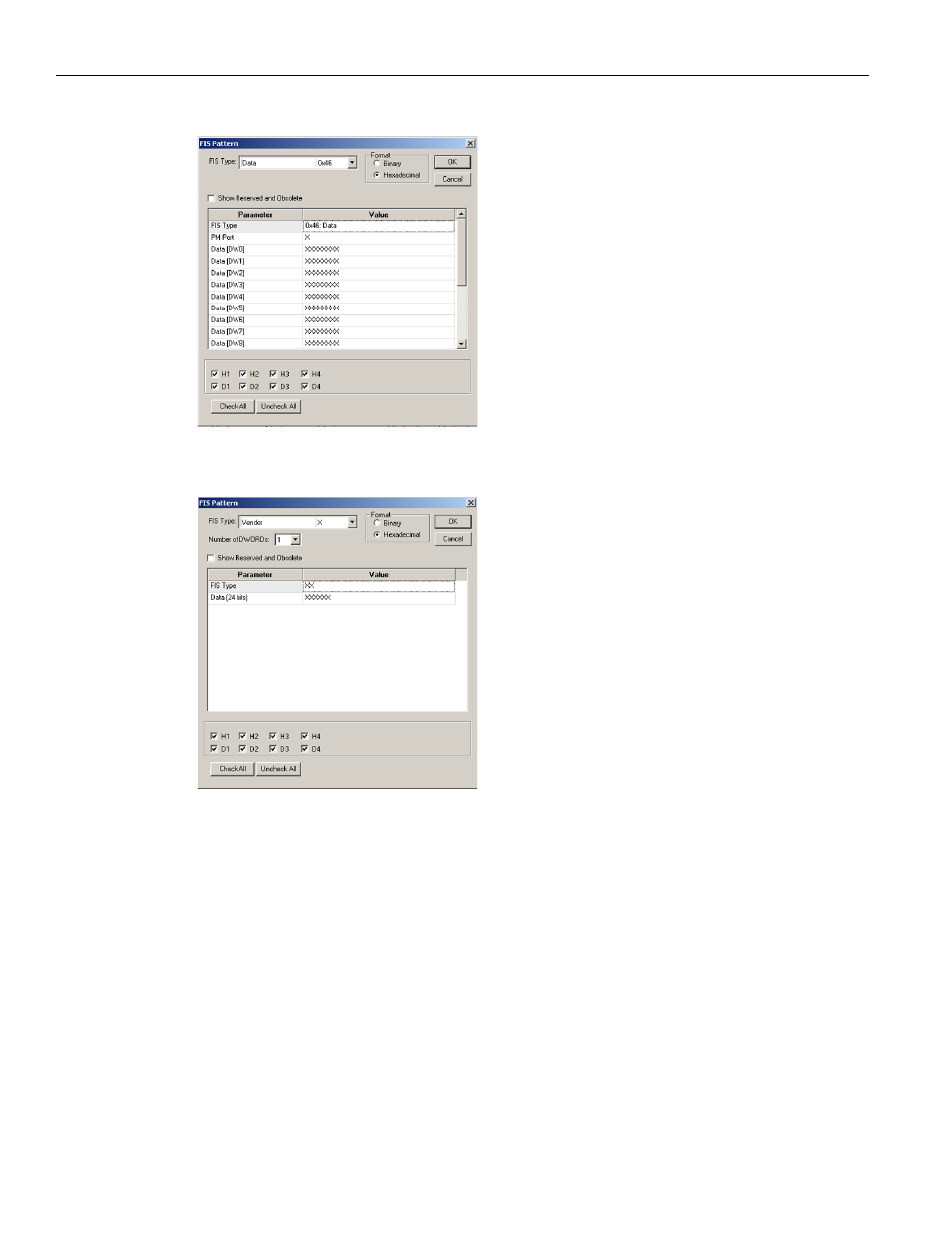

Figure 2.35: FIS Pattern - Data Dialog
Vendor
Figure 2.36: FIS Pattern - Vendor Dialog
Trigger Setup
The Trigger tab in the analysis project dialog allows you to specify when the analyzer
completes a data capture. Three trigger modes are available: The default
Don’t care (Snapshot), Manual Trig, and Pattern.
When data capture starts with Don’t care (Snapshot) selected, the analyzer triggers on
the first data pattern on the bus.
Starting a data capture with Pattern selected triggers when specific pattern(s) are
detected in the captured data stream. The following three ways can trigger the analyzer
with Pattern selected.
 Trigger on any pattern (Any Trigger Mode)
 External Trigger
 Trigger on a sequence of patterns (Sequential Trigger Mode)
