Setting General Errors
Generate Periodic Error
Generate Periodic Error allows you to inject periodic error on Command frame, FIS frame,
stand alone primitive, and stand alone FIS. Check Generate Periodic Error and select the
period unit of time, number of IO commands, or number of kilobytes transferred, by
checking the corresponding option button.
Outgoing FIS Command Error or Outgoing Frame Command Error
SAS: Check Generate Error on outgoing FIS commands, then click the Setting button to
open the error setting dialog.

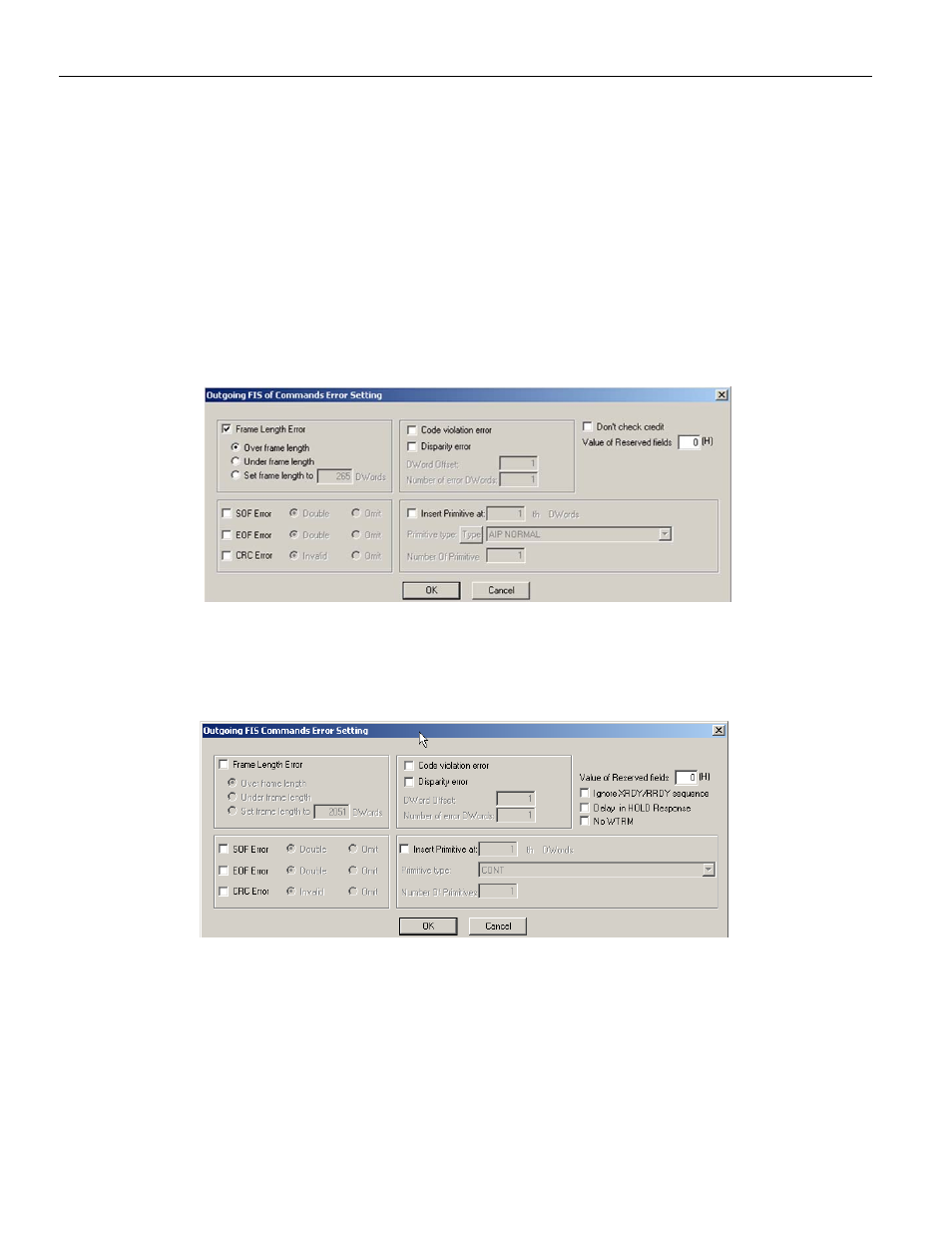

Figure 2.170: SAS: Outgoing FIS of Command Error Setting
SATA: Check Generate Error on outgoing frame commands, then click the Setting button
to open the error setting dialog.
Figure 2.171: SATA: Outgoing FIS of Command Error Setting
Frame Length Error
Check Frame Length Error and choose the type of error to introduce.
 Under frame length: Data frame payload returned by the DE is 0 bytes.
 Set data frame length to xxxx DWORDs: Sets the frame length and not the pay‐
load length. You need to consider the frame header in the calculations.
 Over frame length: 2049 DWORD payloads are sent instead of 2048, because
